300 ft PEX Tubing
This is a robust PEX-b tubing with superb quality for home and commercial hot & cold water plumbing projects. It can be used as an open-loop radiant floor heating system to distribute water temperature between -40℉ to 203℉. Easy to install and with good flexibility to suit different needs.
-
Reliable Pex-b Material
-
Super Sealing Design
-
Excellent Flexibility
-
Quick Installation & Cutter
-
Standards, Certifications & Approvals
-
ASTM F876: Standard specification for cross-linked polyethylene (PEX) tubing.
-
ASTM F877: Standard specification for cross-linked polyethylene (PEX) plastic hot- and cold-water distribution systems.
-
ASTM F2023: Standard test method for evaluating the oxidative resistance of cross-linked polyethylene (PEX) tubing and systems to hot chlorinated water.
-
CSA B137.5: Cross-linked polyethylene (PEX) tubing systems for pressure applications.
1″ PEX-B Tubing
Made of industrial-level cross-linked polyethylene, this PEX piping is flexible and distributes heat evenly. A smooth surface is dustproof and accelerates the heating speed to save energy.
Non-leaking Design
Our PEX water line is resistant to a high or low temperature to avoid leakage. Dual-use as radiant heating tubes or potable water pipes require no maintenance after fully assembled for labor-saving.
7″ Bending Radius
Expanding and shrinking with temperature changes and supporting freeze resistance function, this PEX pipe kit is with min.7″ bending radius(industry standard for 1″ pipe) and excellent flexibility.

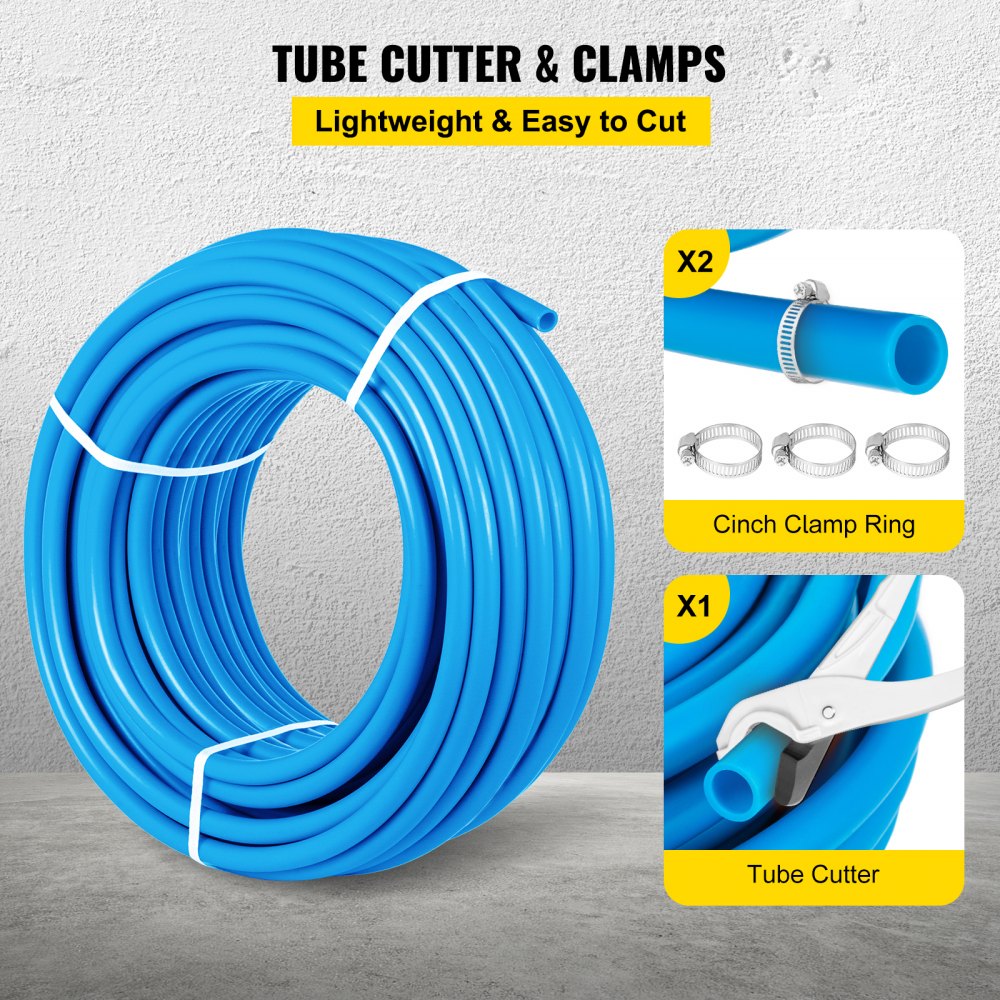

Tube Cutter & Clamps
A professional PEX tubing cutter is ideal for clean & straight cuts of 300 ft PEX tube into various lengths. Come with 3 PCs of metal clamps to help fix the pipes, and the tightness can be adjusted randomly.
Quick Connections
Our flexible pex hose can be connected in many ways: Crimp connection system(crimp tool + rings + fittings); Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings. The coupler is not included.
Diverse Use Scenarios
Suitable for many types of floors, such as (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; “Sandwich” type radiant heating; Snow & ice melting systems, etc.
Specifications
-
Type: PEX-B Tube (Non-Oxygen Barrier)
-
Total Length: 300 ft/ 91.4 m
-
Nominal Diameter: 1″/2.54 cm
-
Inside Diameter: 0.87″/2.22 cm
-
Outside Diameter: 1.13″/2.87 cm
-
Temperature Range: -40℃ to 95℃/-40℉ to 203℉
-
Pressure Rate: 80 psi @ 200F, 100 psi @ 180F, 160 psi @ 73F By PPI
-
Min.Bending Radius: 7″/17.8 cm
-
Tube Weight: 50.7 lbs/23 kg
-
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications)
-
UPC Listed by IAPMO
-
SDR-9 Dimensional Standards

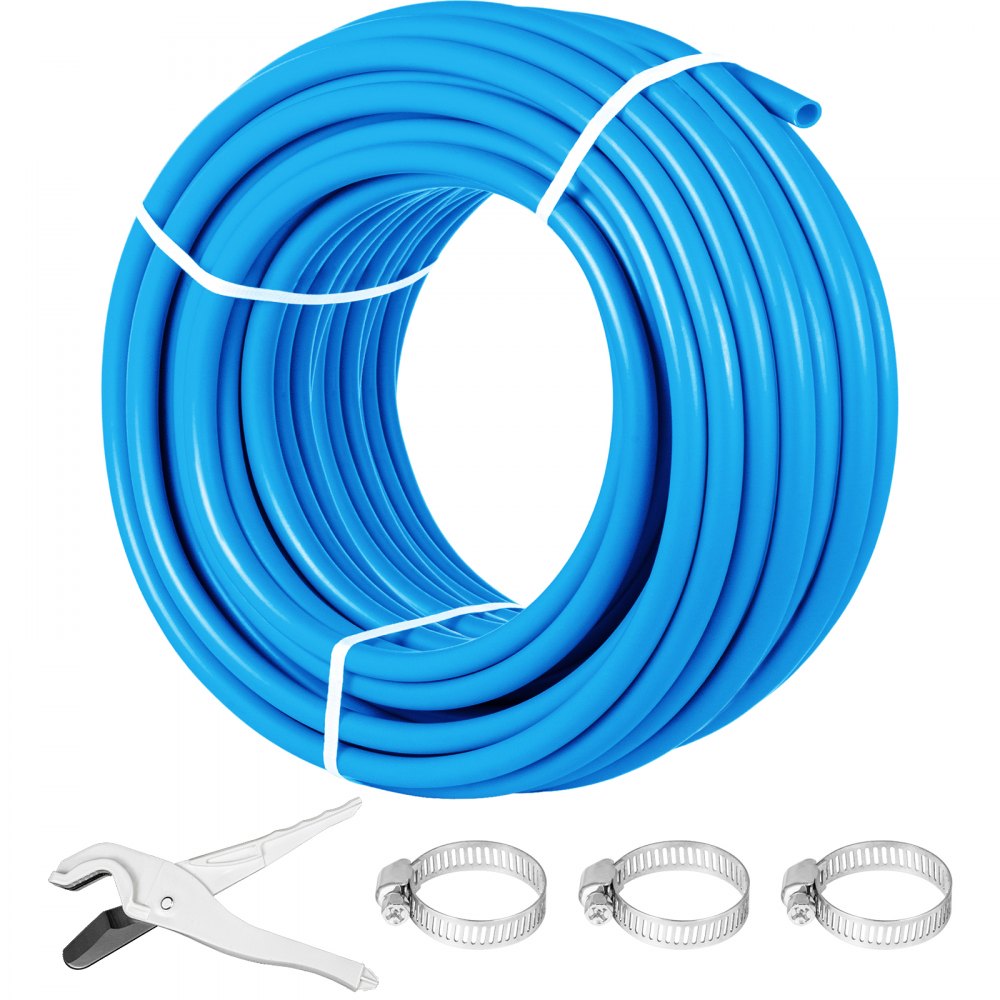

Package Content
-
1 x 300ft PEX Tube (Blue)
-
1 x PEX Pipe Cutter
-
3 x Steel Clamps
