Electrical Enclosure Box–Begin your safety setups!
IP66 Grade & High Security & DIY Projects
The electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
-
Sturdy Steel Construction
-
IP66 Waterproof Grade
-
Reinforced Lock & Hinge
-
Convenient Operation
-
Exquisite Details Design

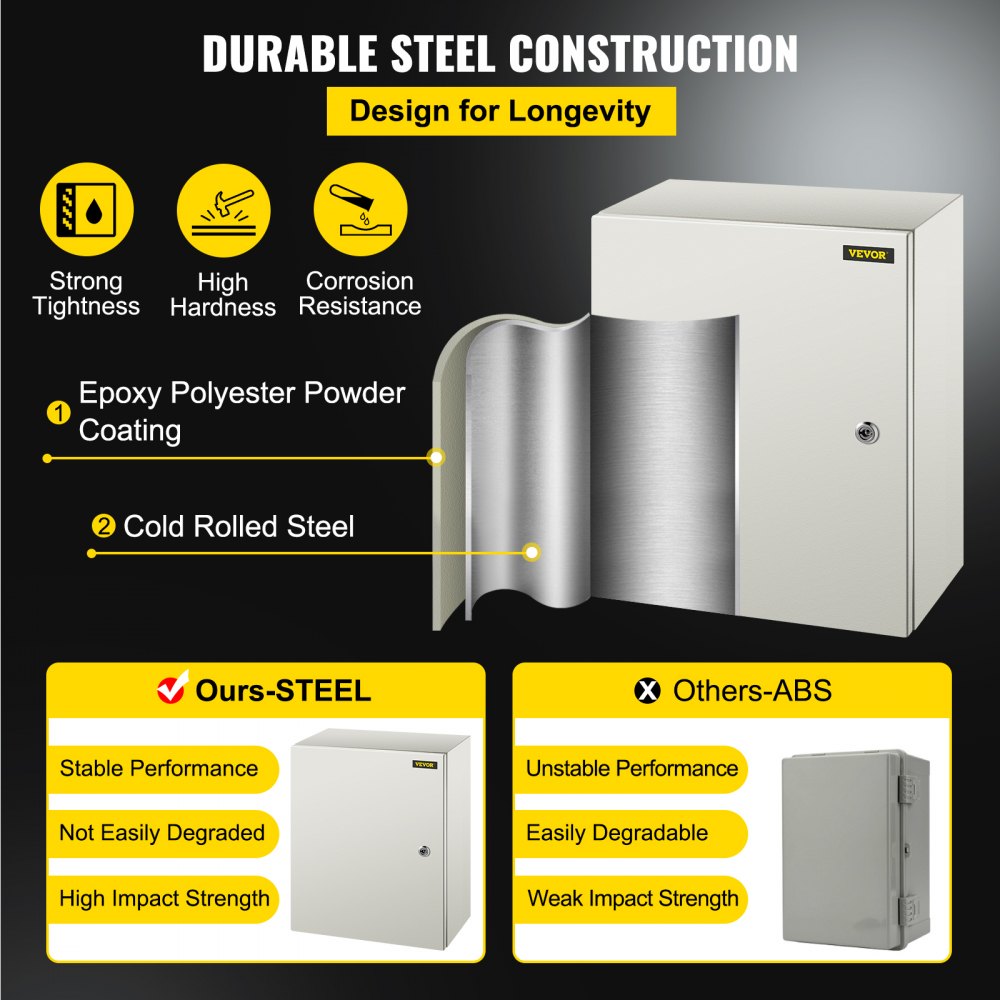

Premium Steel Material
The electrical box is made of 0.059“/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

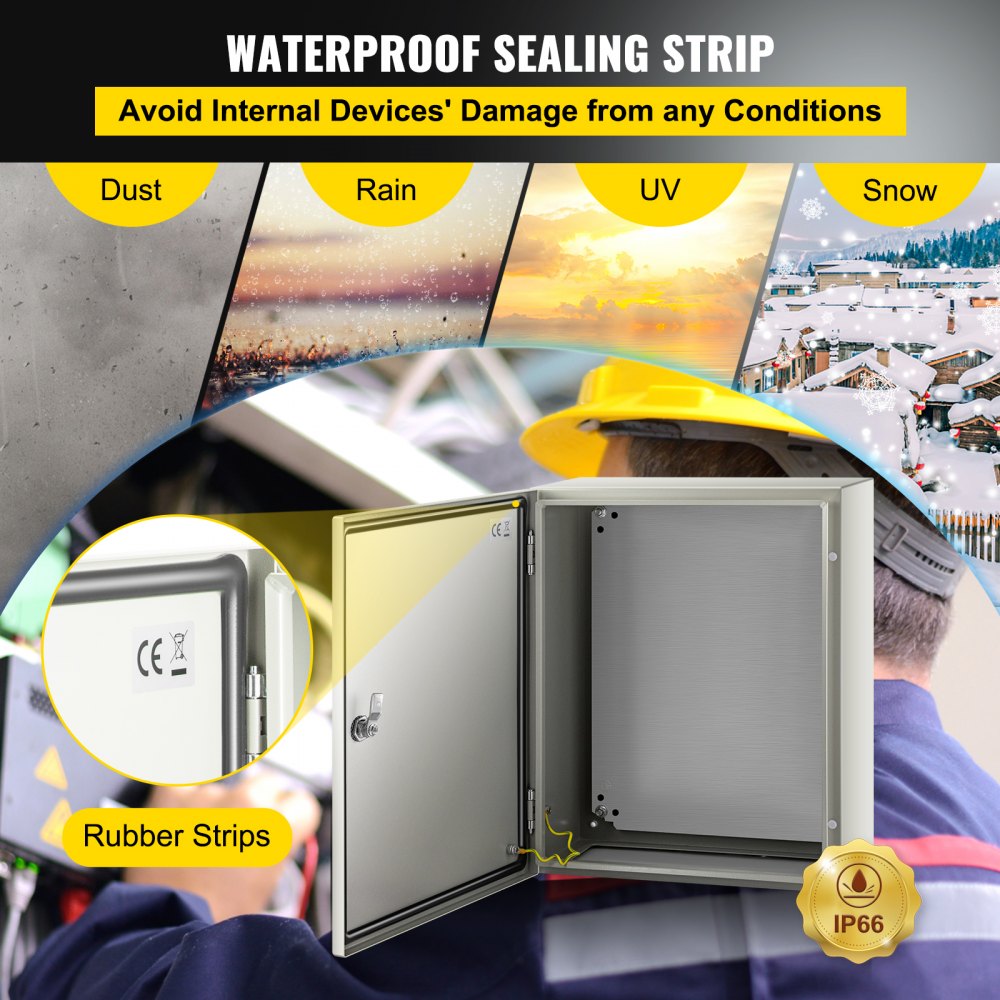

IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.

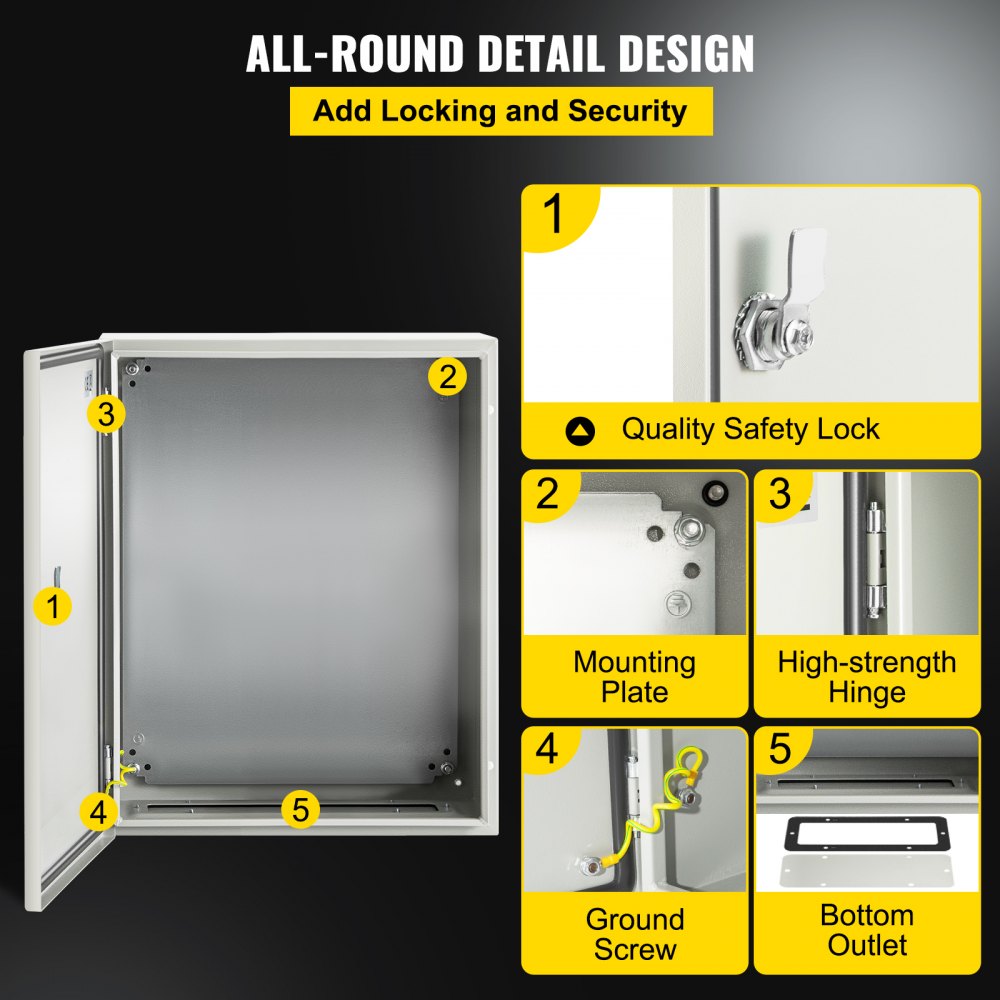

Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.

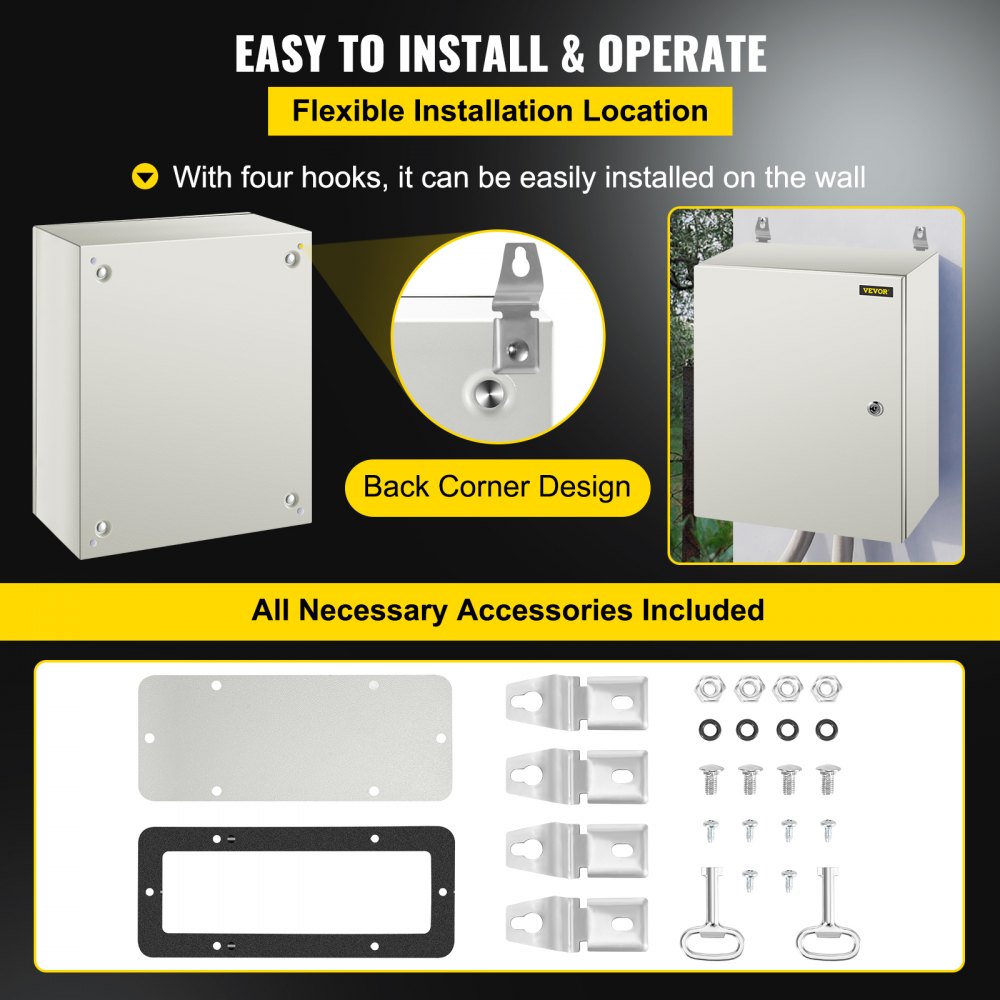

Effortless to Install & Use
The 2 MM detachable galvanized backplate is easy to install PCB boards, terminals, or any other electrical components that need to be fixed. There are also four mounting holes on the back for easy wall mounting.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
Extensive Application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. Applicable to factories, construction sites, shopping malls, squares, residential areas, courtyards, etc.
Specifications
-
Model: SPT
-
Color: Gray White(RAL7035)
-
Material: 0.059“ / 1.5 mm Carbon Steel
-
Coating: Epoxy Polyester Powder Coating
-
Mounting Plate: 0.079“ / 2 mm Detachable Galvanized Backplate
-
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
-
Connection Type: Hinged
-
Feature: Lockable, Waterproof
-
Galvanized Backplate Dimensions: 17.7″ x 13.8″ / 45 x 35 cm
-
Outer Dimensions (H x W x D): 20“ x 16“ x 8“ / 50 x 40 x 20 cm
-
Inner Dimensions (H x W x D): 19.6“ x 15.6“ x 6.6“ / 49.7 x 39.7 x 16.65 cm
-
Product Weight: 29.32 lbs / 13.3 kg
-
Certification: CE / ROHS Certification

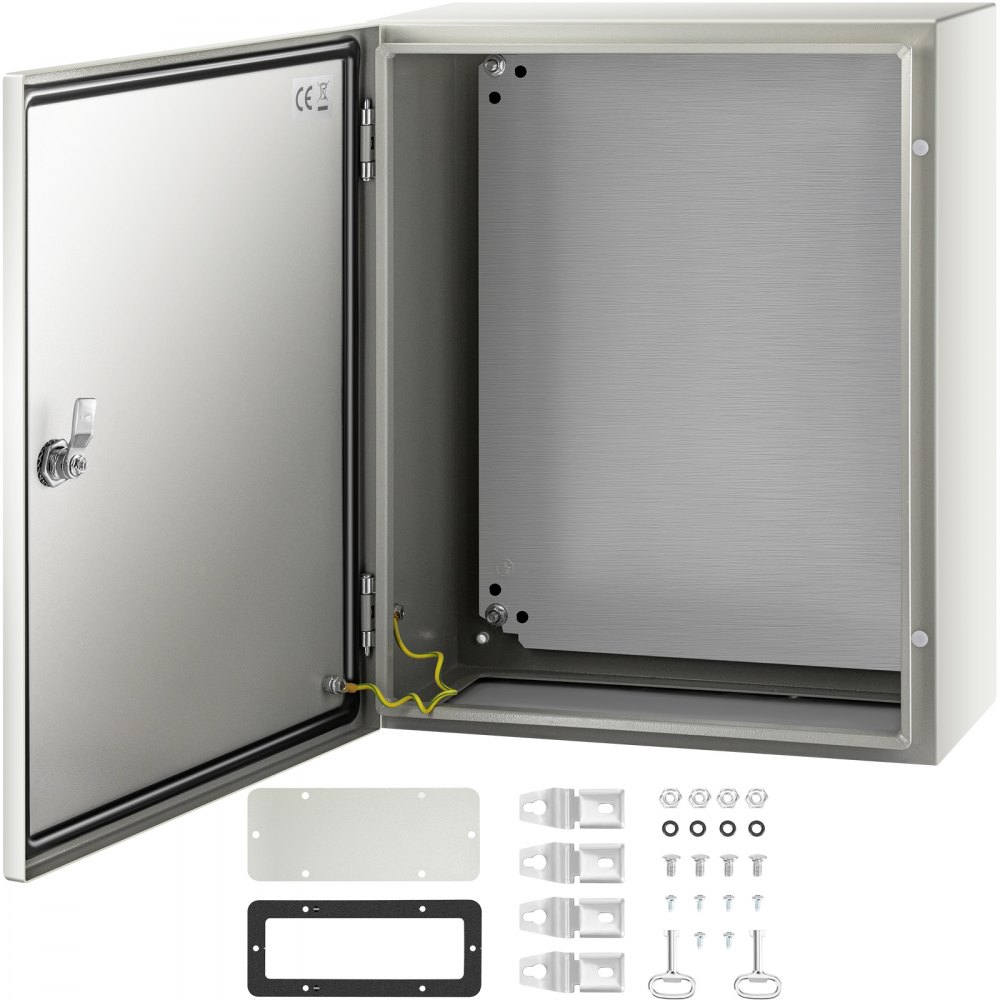

Package Content
-
1 x Electrical Box
-
2 x Keys
-
1 x Mounting Plate(The mounting plate has been assembled in the box)
-
1 x Set of Wall Mounting Pendants
-
1 x Bottom Sealing Plate
