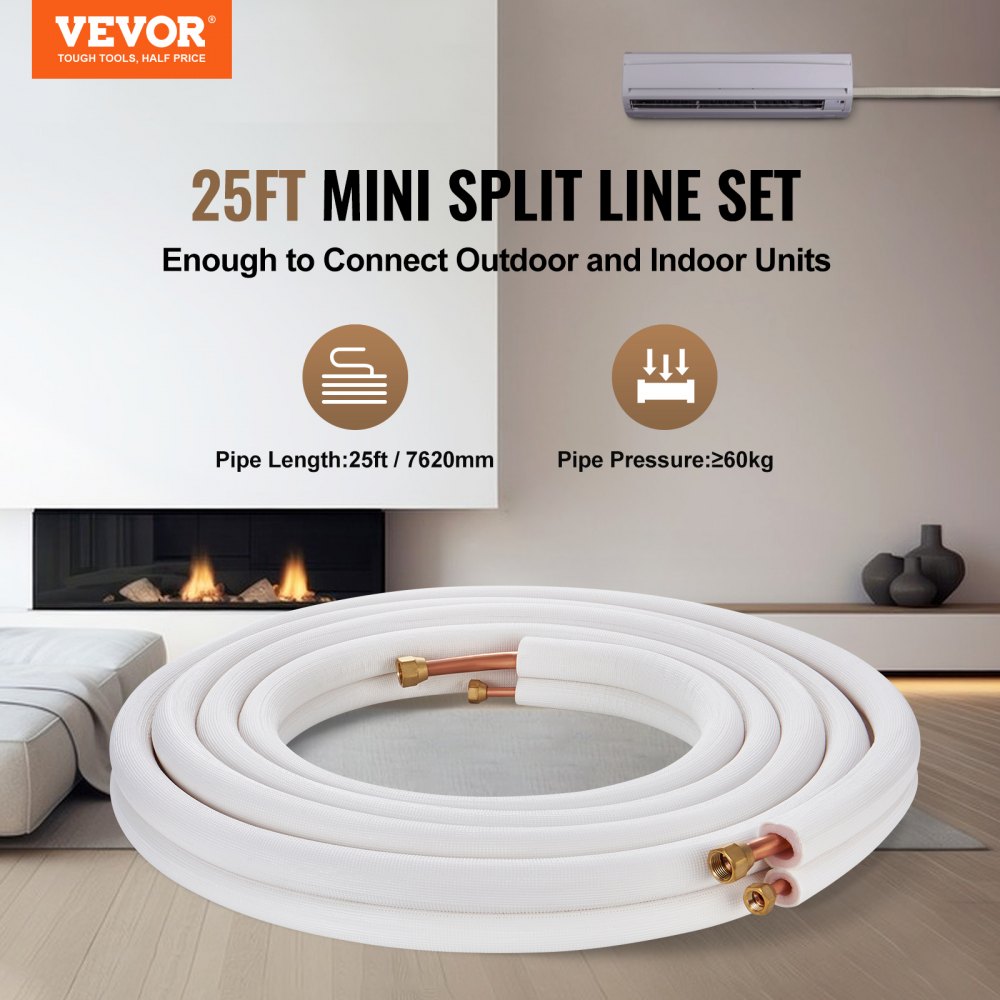

25FT Copper Tube: With a length of up to 25ft, the copper tube can easily connect indoor and outdoor units even over long distances without difficulty.

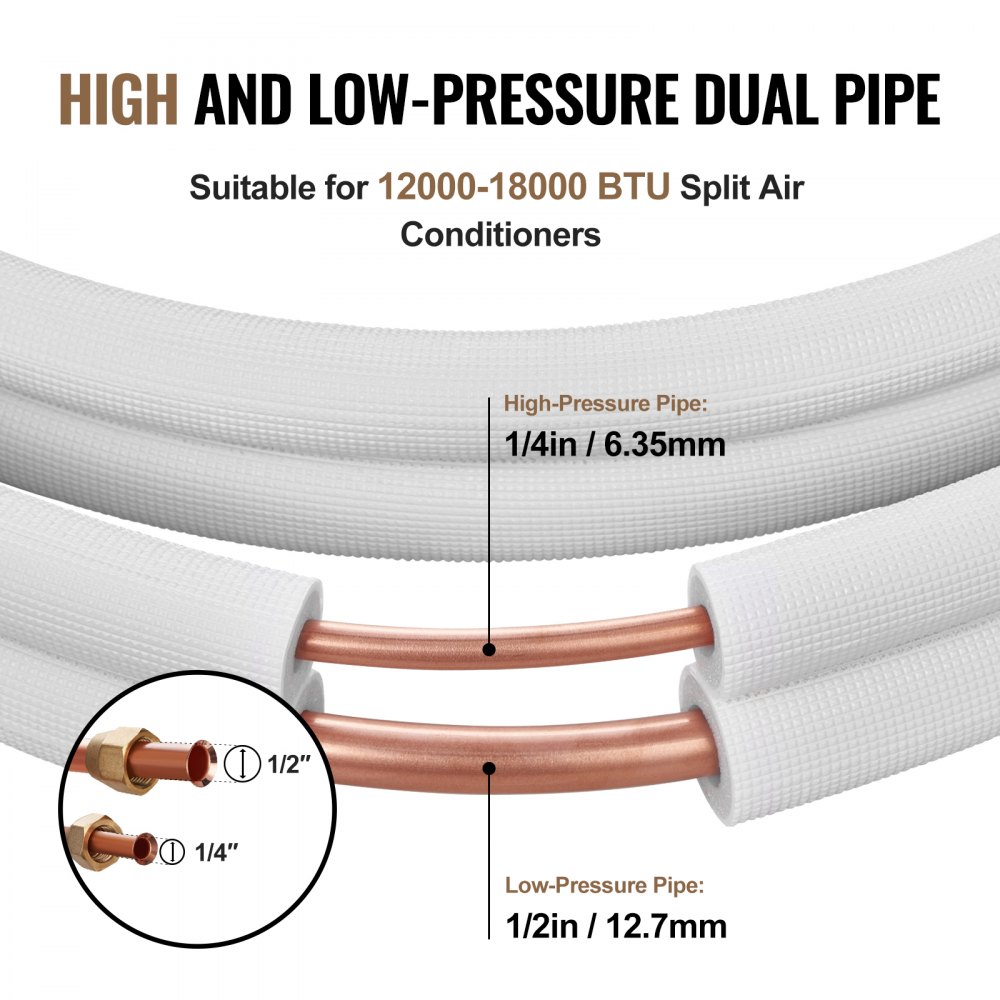

High and Low Pressure Dual Pipes: Includes 1/4” high-pressure tubes and 1/2” low-pressure tubes, compatible with 12000-18000 BTU split air conditioners, specifically designed for mini-split air conditioning systems.

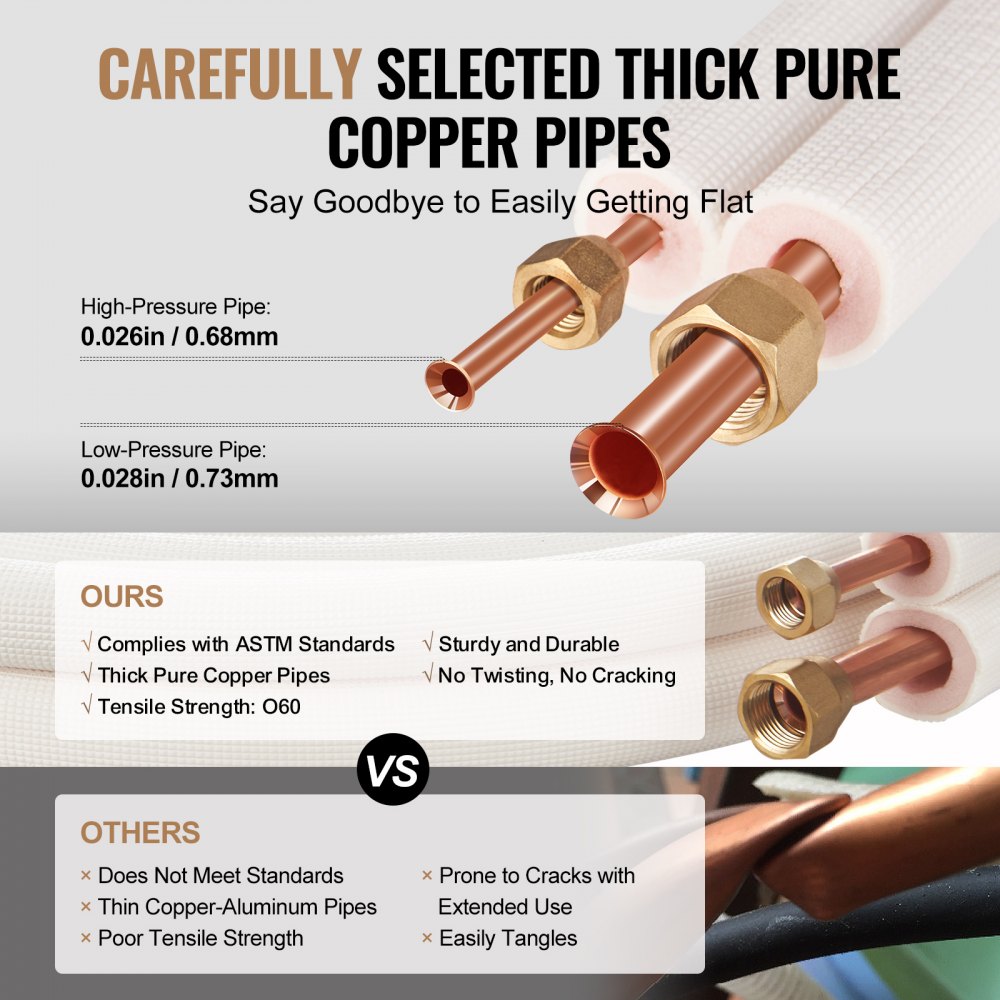

Thickened Pure Copper Tube: Utilizes high-quality copper tubes compliant with ASTM standards, meticulously controlling the wall thickness of both high-pressure and low-pressure tubes, providing excellent toughness and hardness, eliminating the frustration of thin copper tubes easily flattening with a single fold.

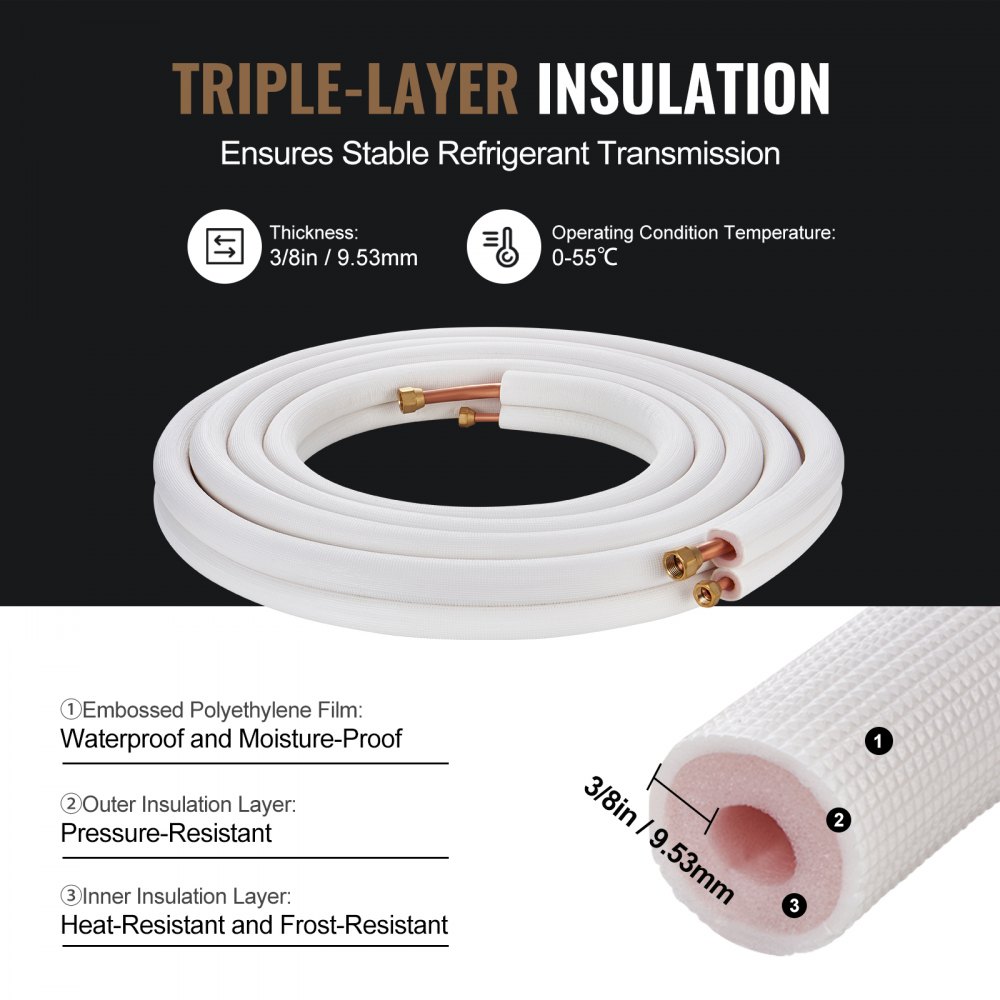

Three-layer Insulation Cotton: Wrapped tightly with three layers of insulation cotton, the copper tube sustains effective insulation while being waterproof and pressure-resistant, offering better protection for the internal copper tubes.

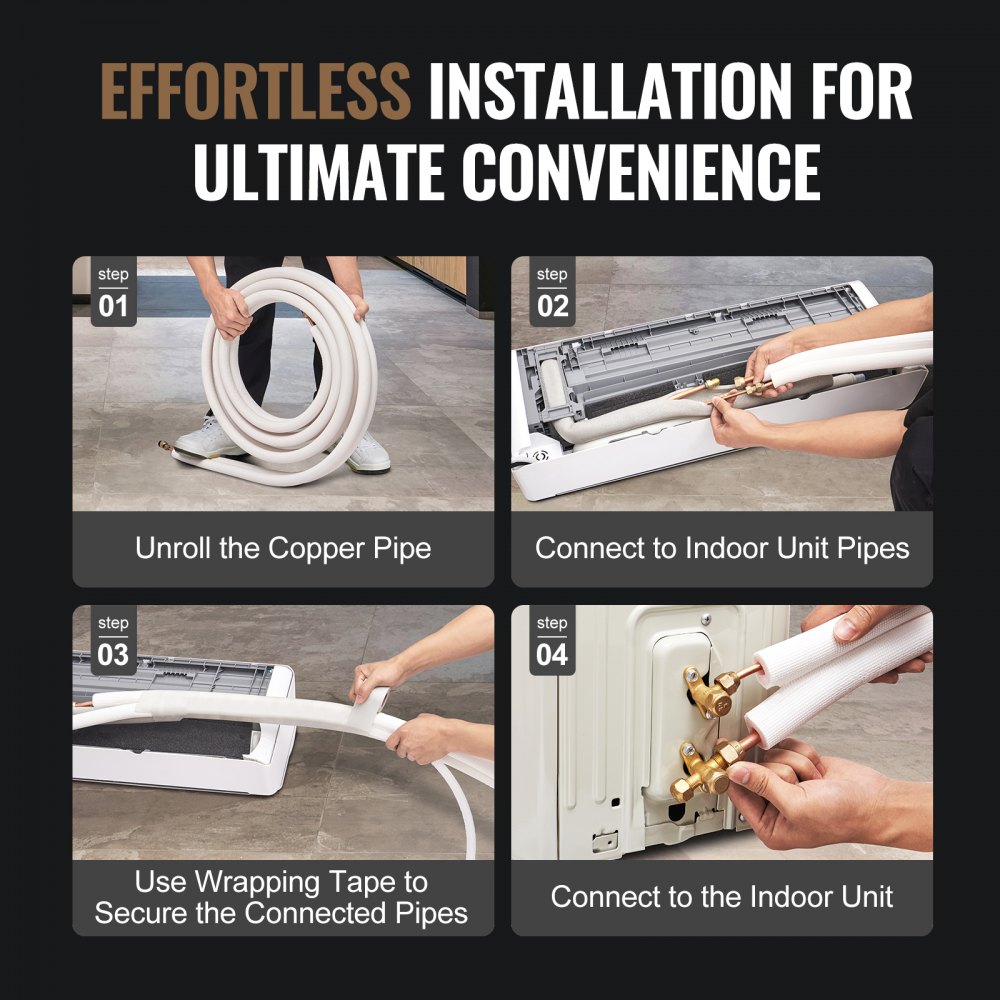

4-Step Quick Installation: Equipped with 2 tie wraps, installation is extremely simple, requiring only 4 steps to complete, effortlessly connecting indoor and outdoor units.

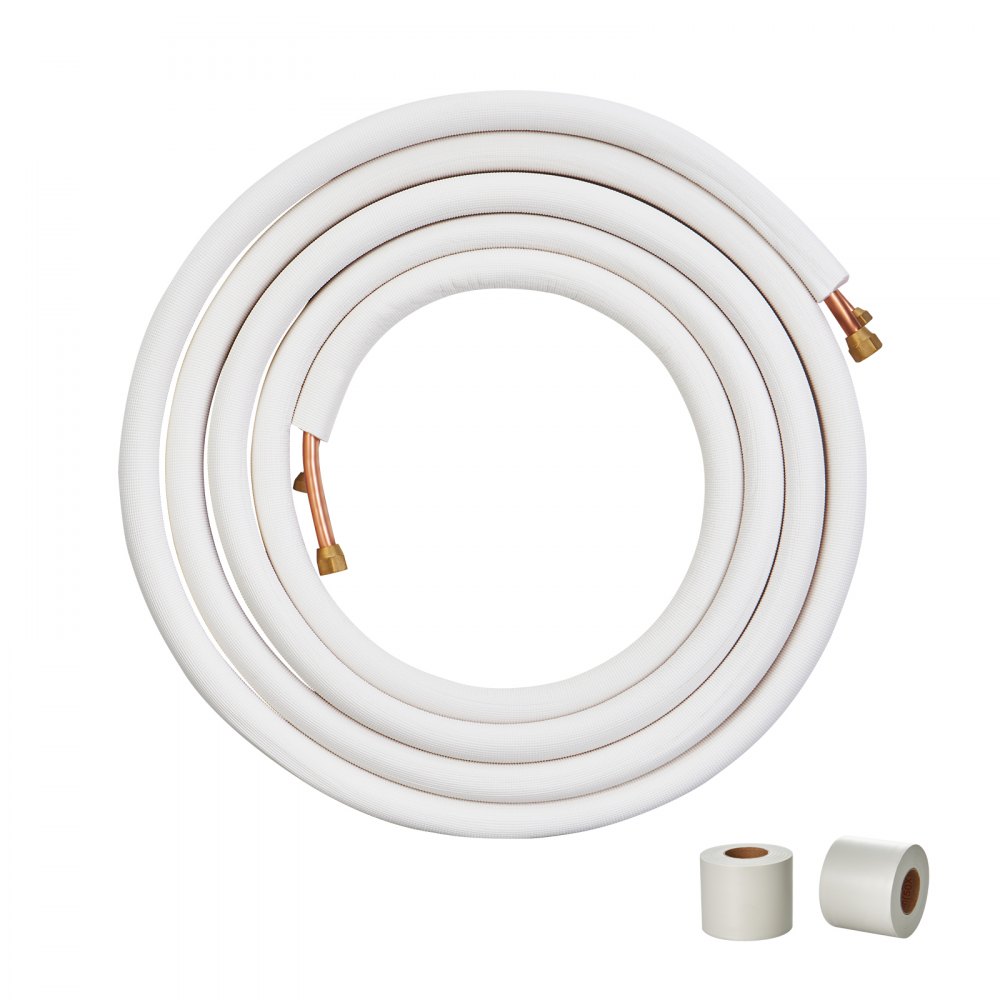

25FT Mini Split Line Set, 1/4″ & 1/2″ O.D Copper Pipes Tubing and Triple-Layer Insulation, for Mini Split Air Conditioning Refrigerant or Heating Pump Equipment & HVAC with Wrapping Strips.
High Flexibility
One Pipe For Multiple Uses
Stringent Material Quality Control
Unquestionable Thermal Insulation
Simple Installation
Long Lifespan

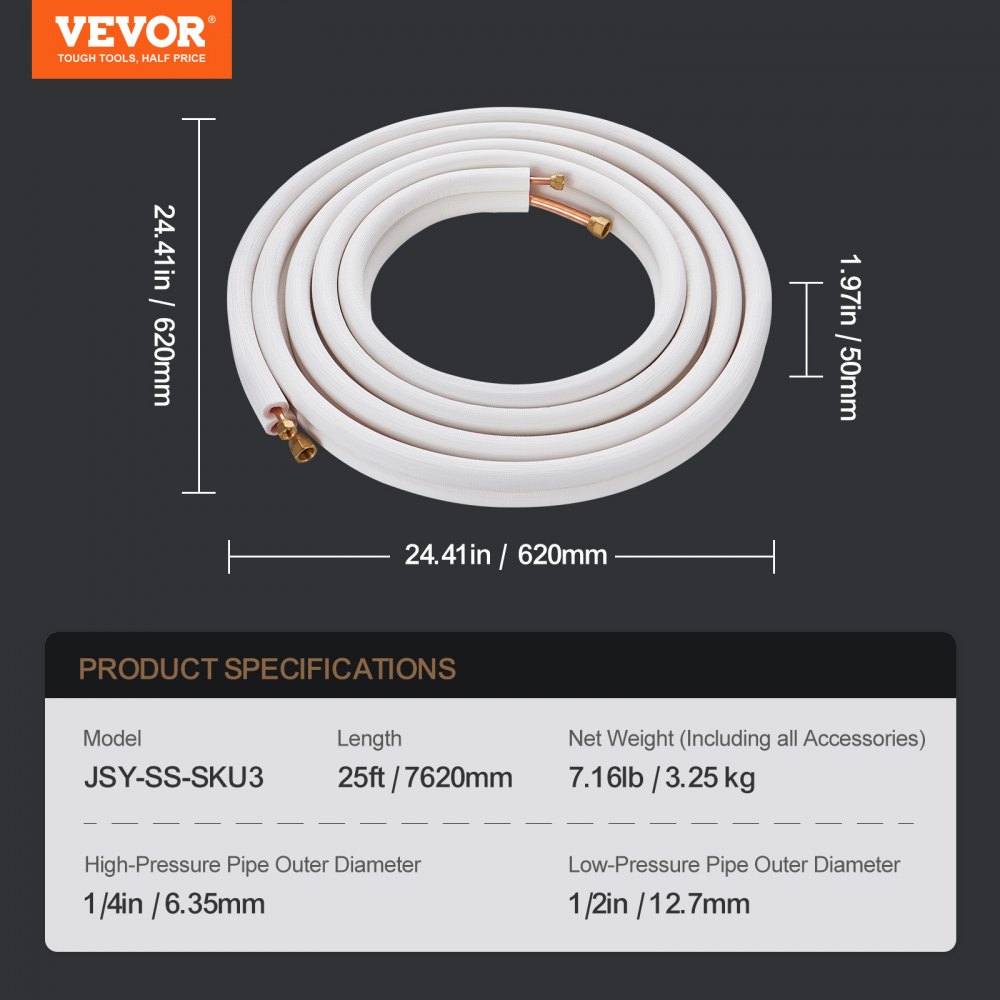

Overall Dimensions (L x W x H): 24.41×24.41×1.97in / 620x620x50mm,Length: 25ft / 7620mm,Net Weight (Including all Accessories): 7.16lb / 3.25 kg,Model: JSY-SS-SKU3,High-Pressure Pipe Outer Diameter: 1/4in / 6.35mm,Low-Pressure Pipe Outer Diameter: 1/2in / 12.7mm
