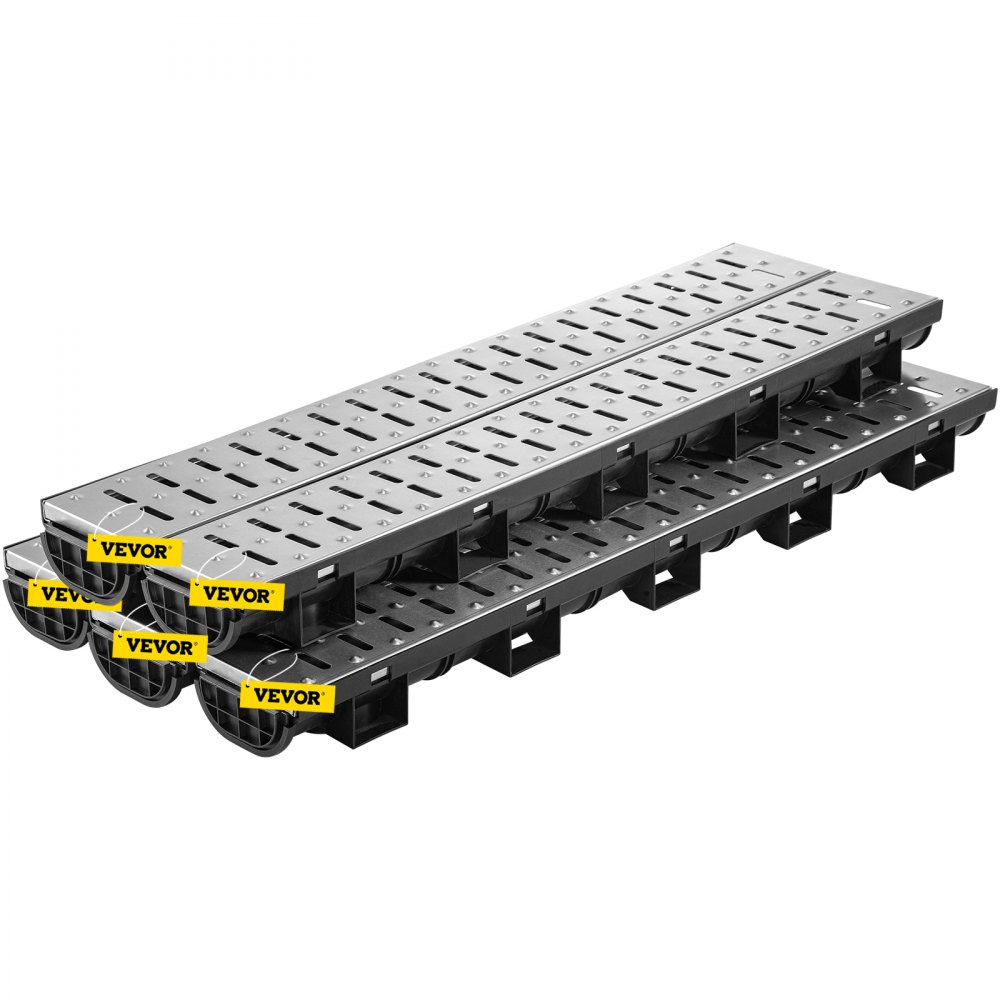

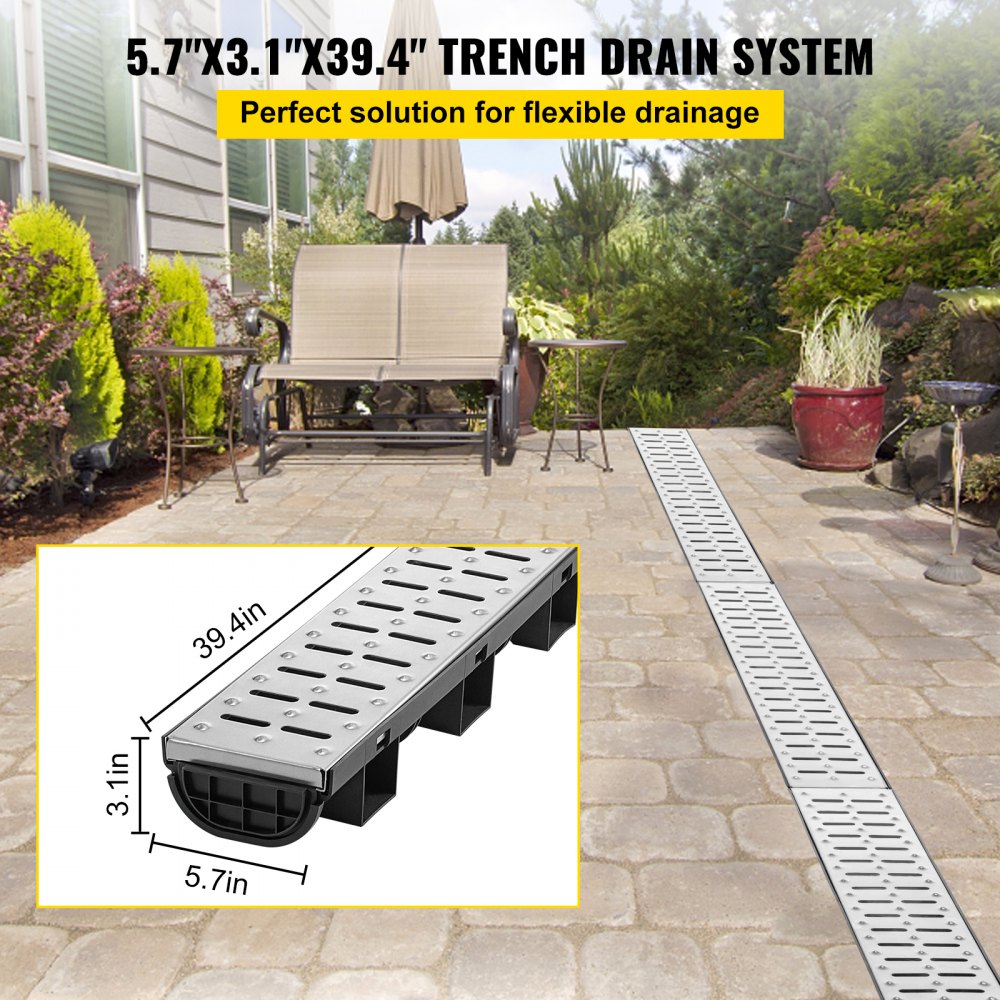

Driveway Trench Drain System
Quick Installation & Detachable Grates & High Durability
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for A15, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.
-
Low-profile Drain System
-
Easy & Quick Installation
-
Various Outlet Connections
-
Durability & High Performance
-
Complete Packing List

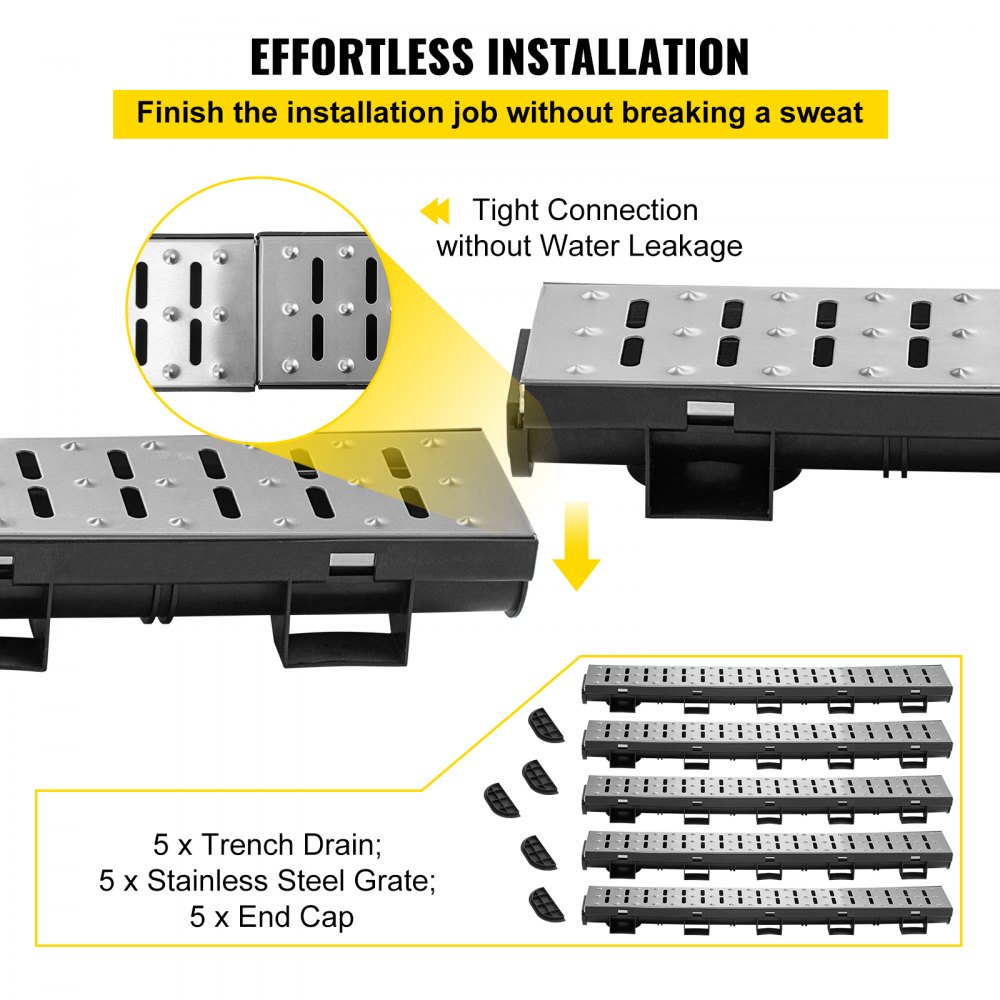

Hassle-Free Installation
Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

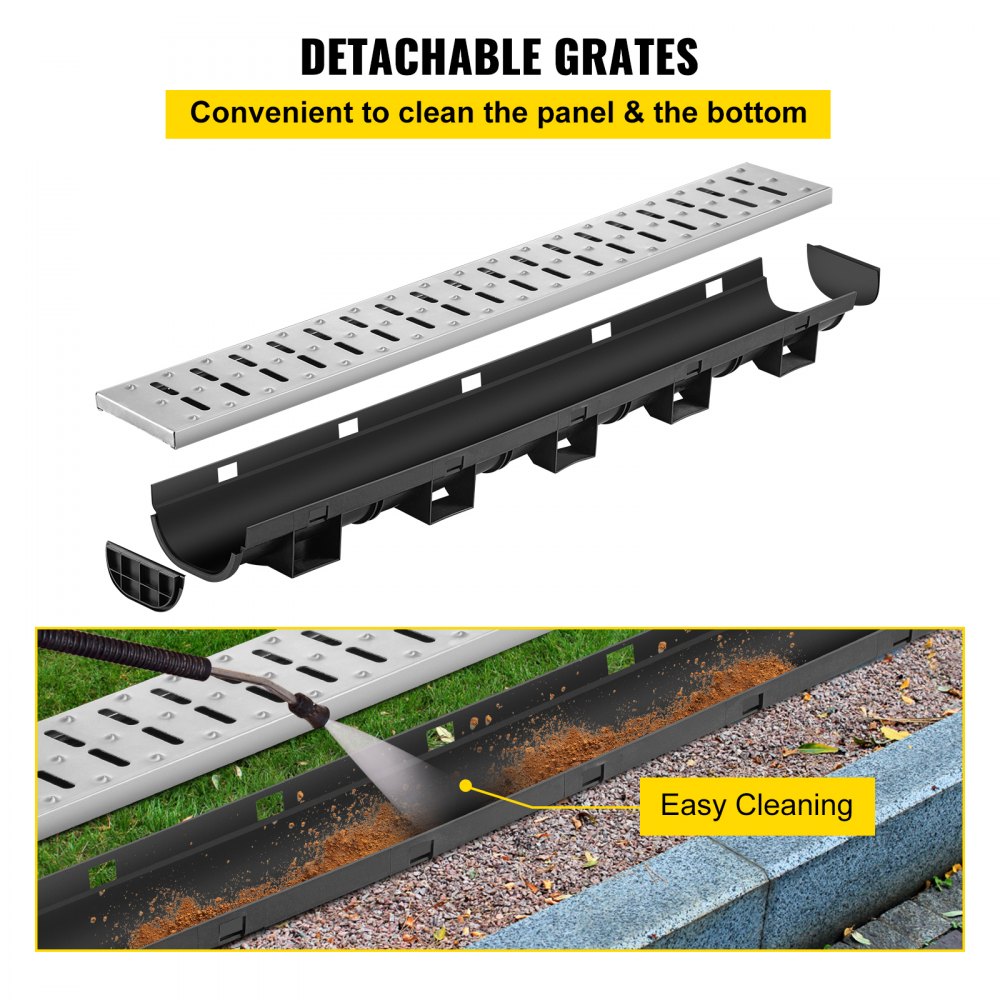

Removable Grates
The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

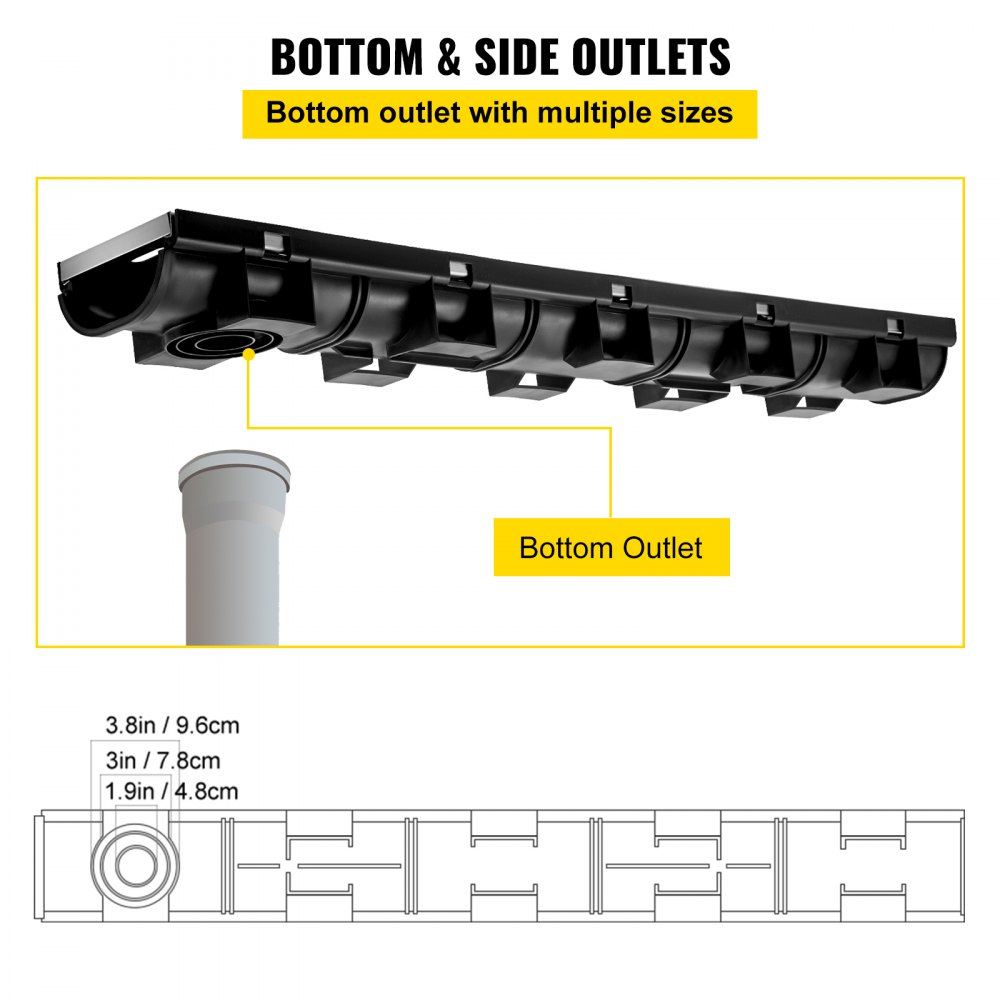

Water Outlets
The bottom outlet connections are built into this trench drain. The bottom outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

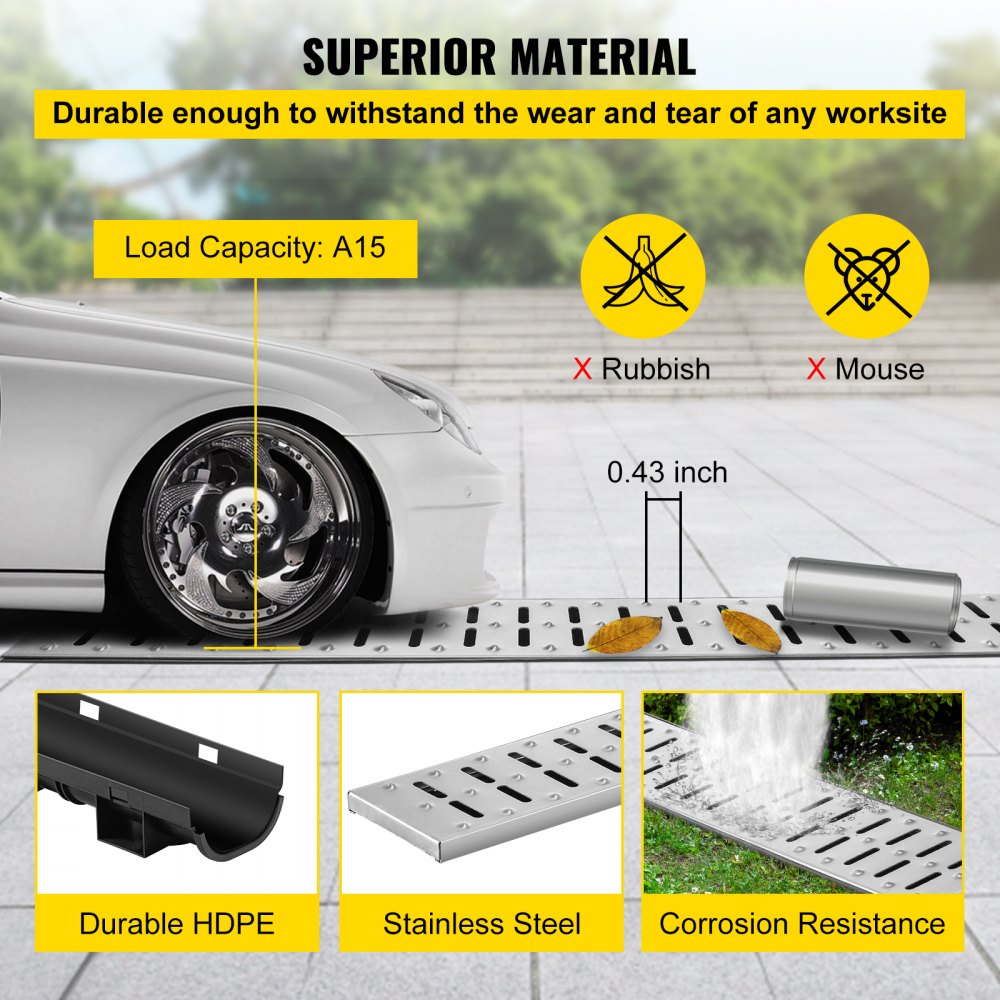

HDPE + Stainless Steel Material
Made of HDPE plastic and stainless steel, the load capacity is A15. It is suitable for driveways. The superior material creates a smooth and durable surface to drain the water away smoothly.
Trench Drain Kit
This trench drain kit includes 5 trench drains. Each one is one meter long. The accessories include 5 metal grates and 5 end caps. We offer you all the accessories that you may need.
Extensive Application
This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the A15 load rate, it is also suitable for driveways.

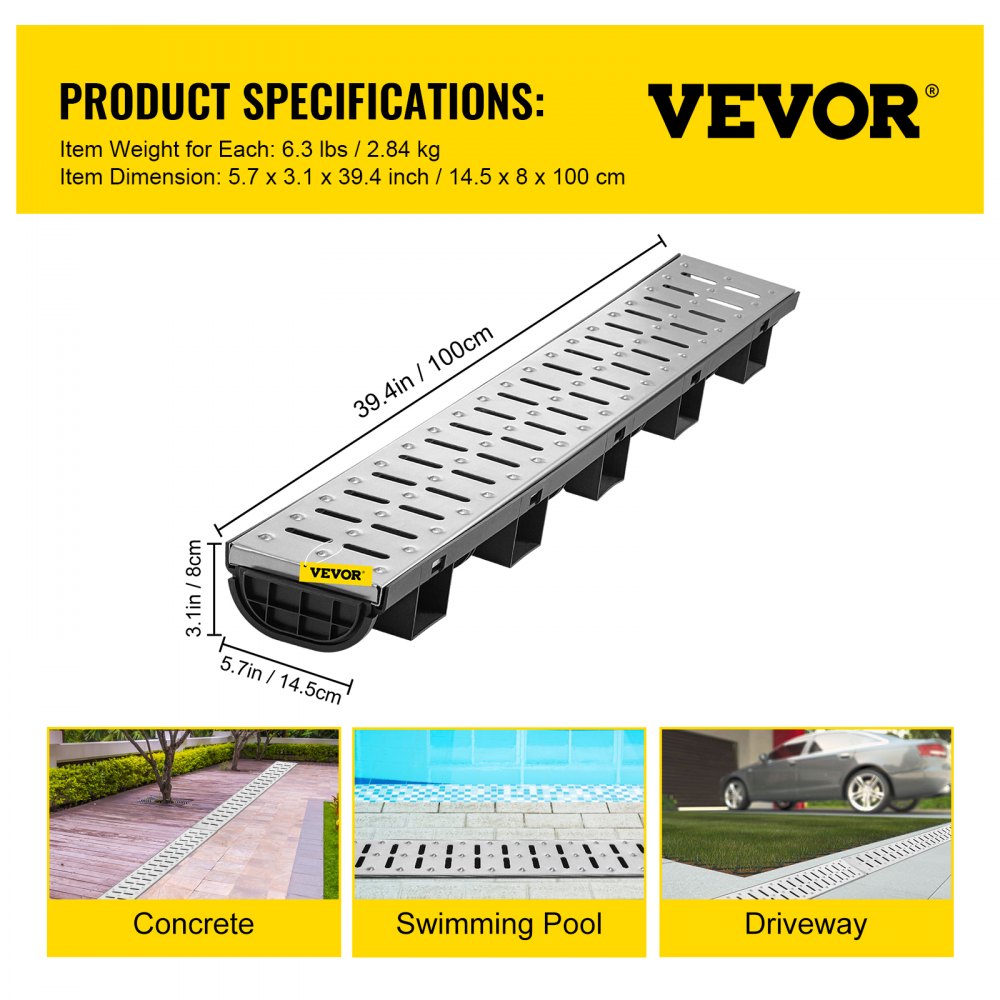

Specifications
-
Model: PSG100*45*5M
-
Material of Trench Drain: HDPE Plastic
-
Material of Grate: Stainless Steel
-
Color: Black & Silver
-
Load Rate: A15
-
Amount: 5 Pack
-
External Item Dimensions: 5.7 x 3.1 x 39.4 inch/ 14.5 x 8 x 100 cm
-
Internal Item Dimensions: 3.9 x 1.8 x 39.4 inch/ 10 x 4.5 x 100 cm
-
Diameter of Bottom Drain Hole: 48/78/96 mm
-
Item Weight Each: 2.84 kg / 6.3 lbs
-
Maximum Working Temperature: 120℃ / 248℉
-
Minimum Working Temperature: -40℃ / -40℉
Package Content
-
5 x Trench Drain
-
5 x Metal Grate
-
5 x End Cap
