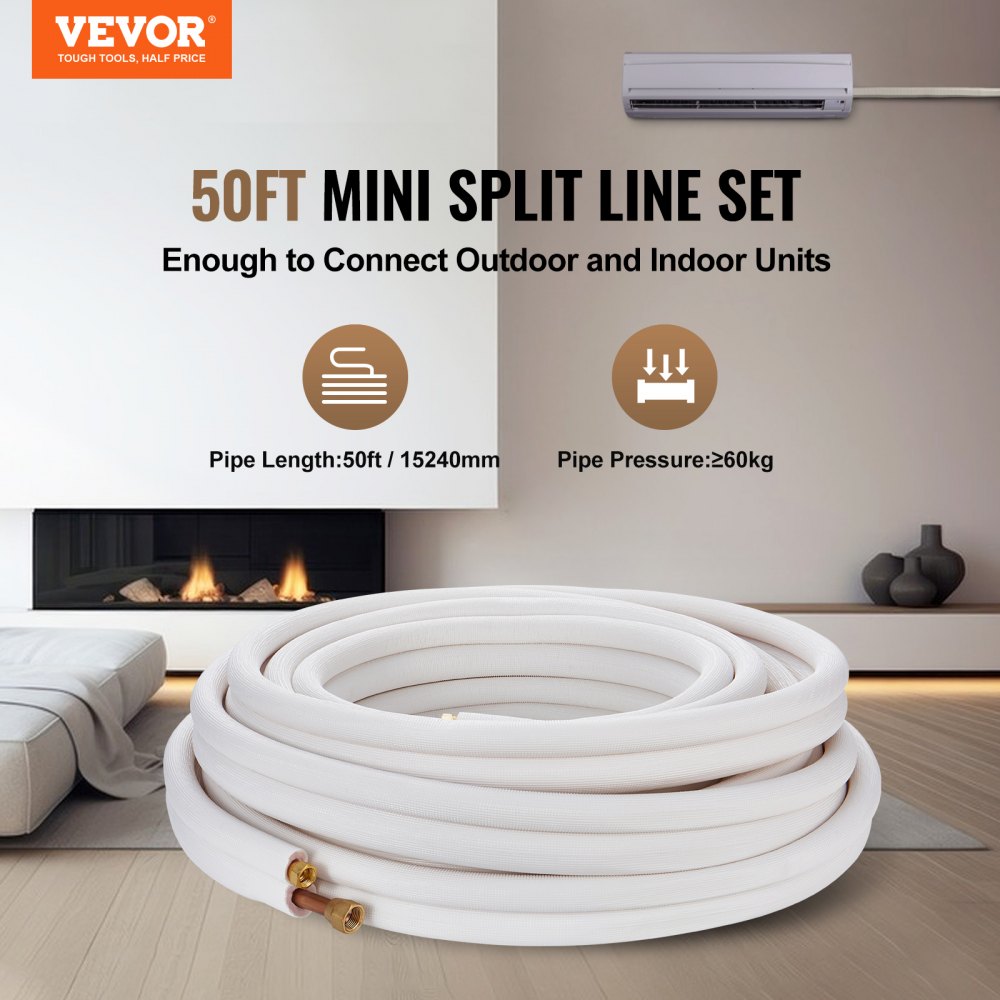

50FT Copper Tube: With a length of up to 50ft, the copper tube can easily connect indoor and outdoor units even over long distances without difficulty.

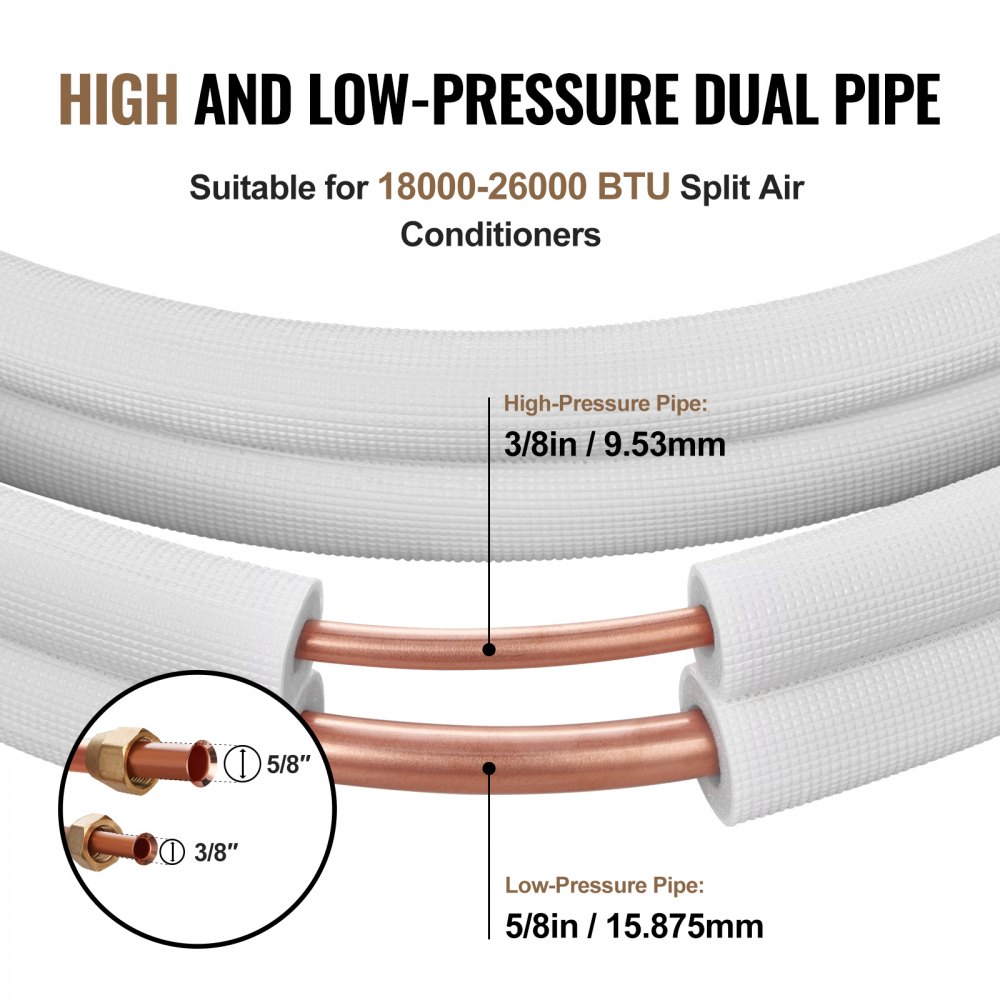

High and Low Pressure Dual Pipes: Includes 3/8” high-pressure tubes and 5/8” low-pressure tubes, compatible with 18000-26000 BTU split air conditioners, specifically designed for mini-split air conditioning systems.

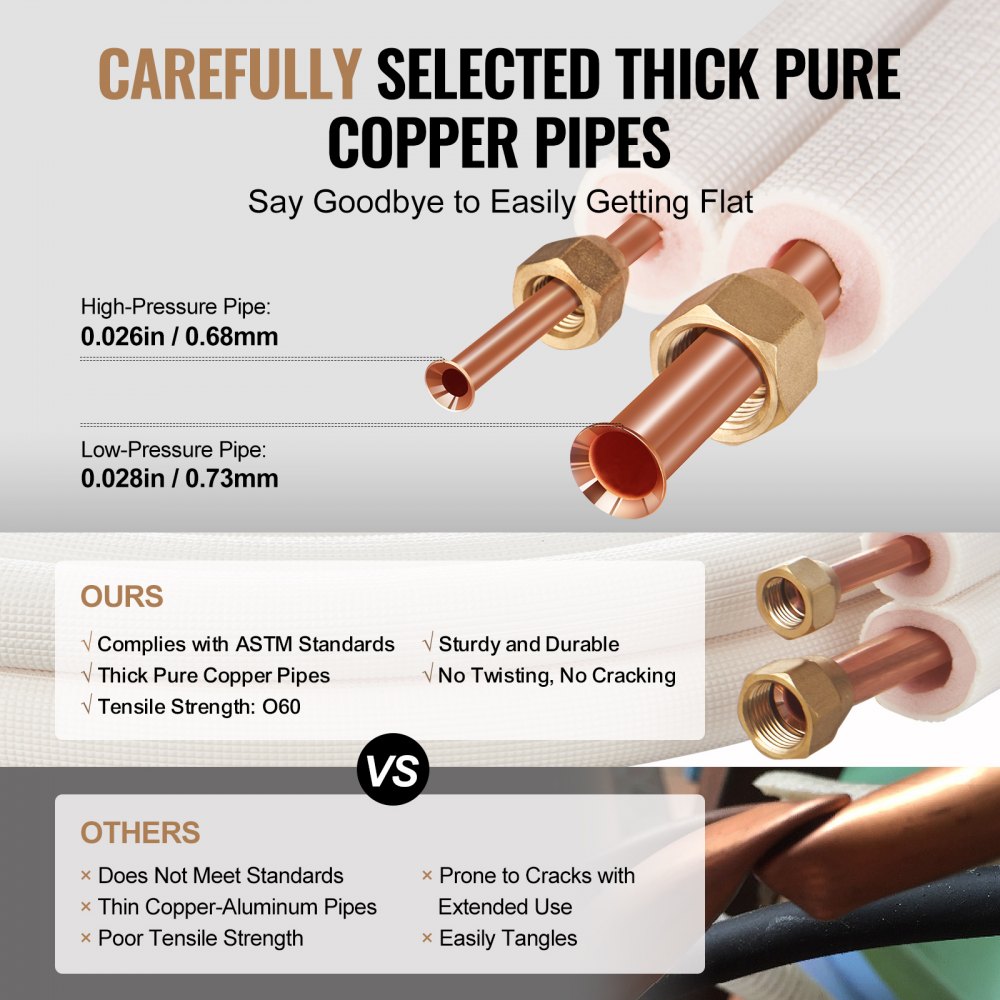

Thickened Pure Copper Tube: Utilizes high-quality copper tubes compliant with ASTM standards, meticulously controlling the wall thickness of both high-pressure and low-pressure tubes, providing excellent toughness and hardness, eliminating the frustration of thin copper tubes easily flattening with a single fold.

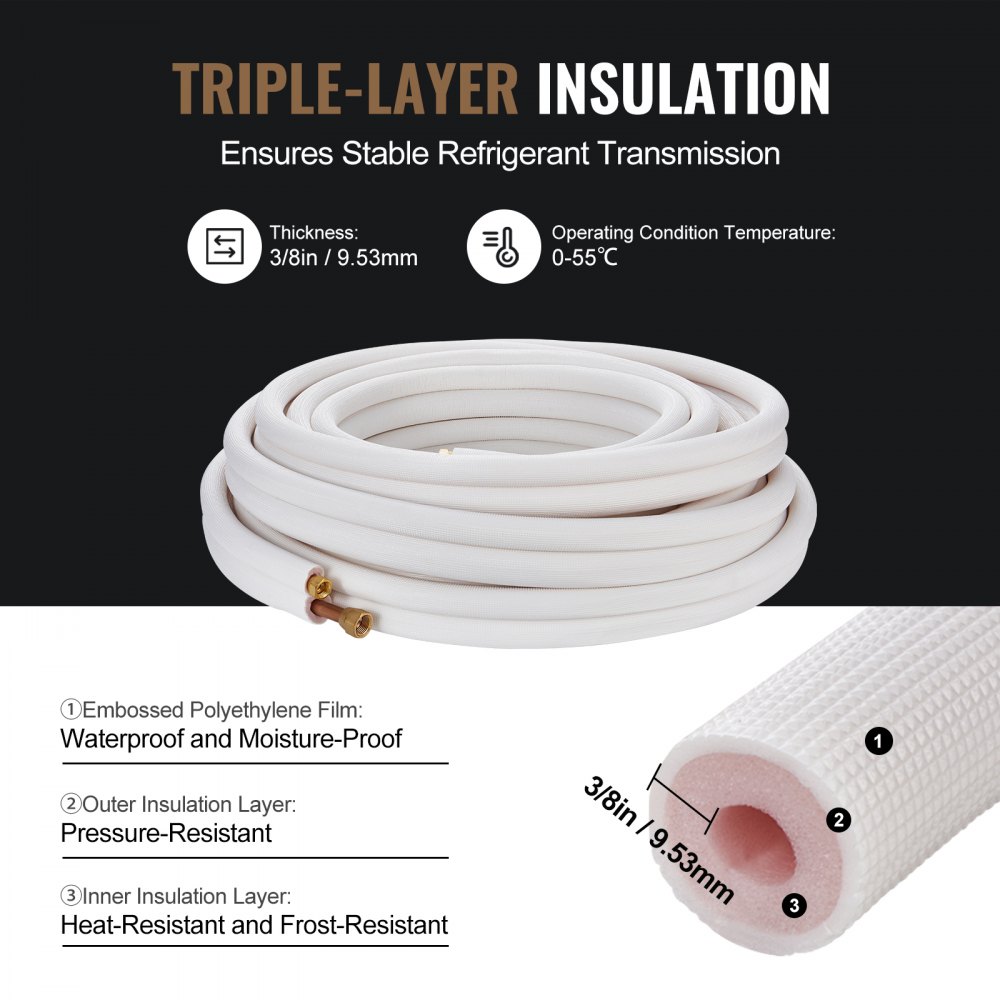

Three-layer Insulation Cotton: Wrapped tightly with three layers of insulation cotton, the copper tube sustains effective insulation while being waterproof and pressure-resistant, offering better protection for the internal copper tubes.

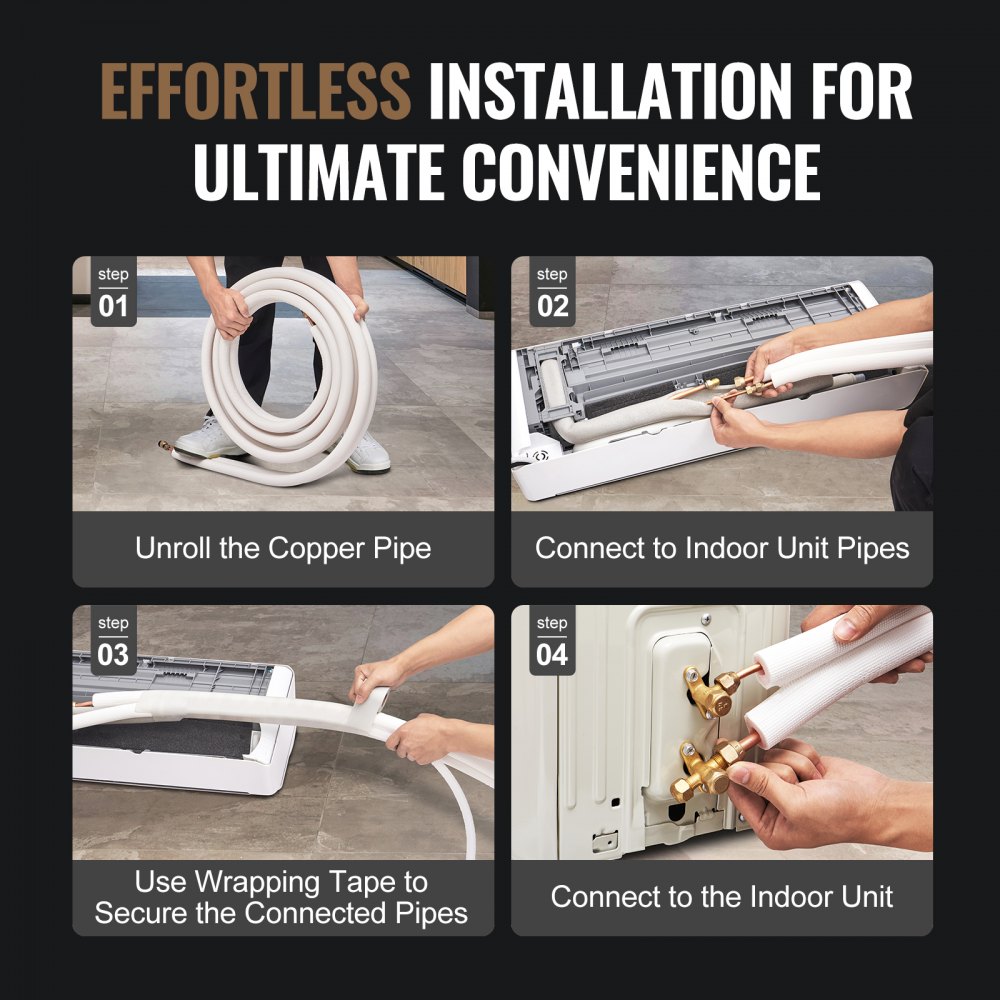

4-Step Quick Installation: Equipped with 2 tie wraps, installation is extremely simple, requiring only 4 steps to complete, effortlessly connecting indoor and outdoor units.

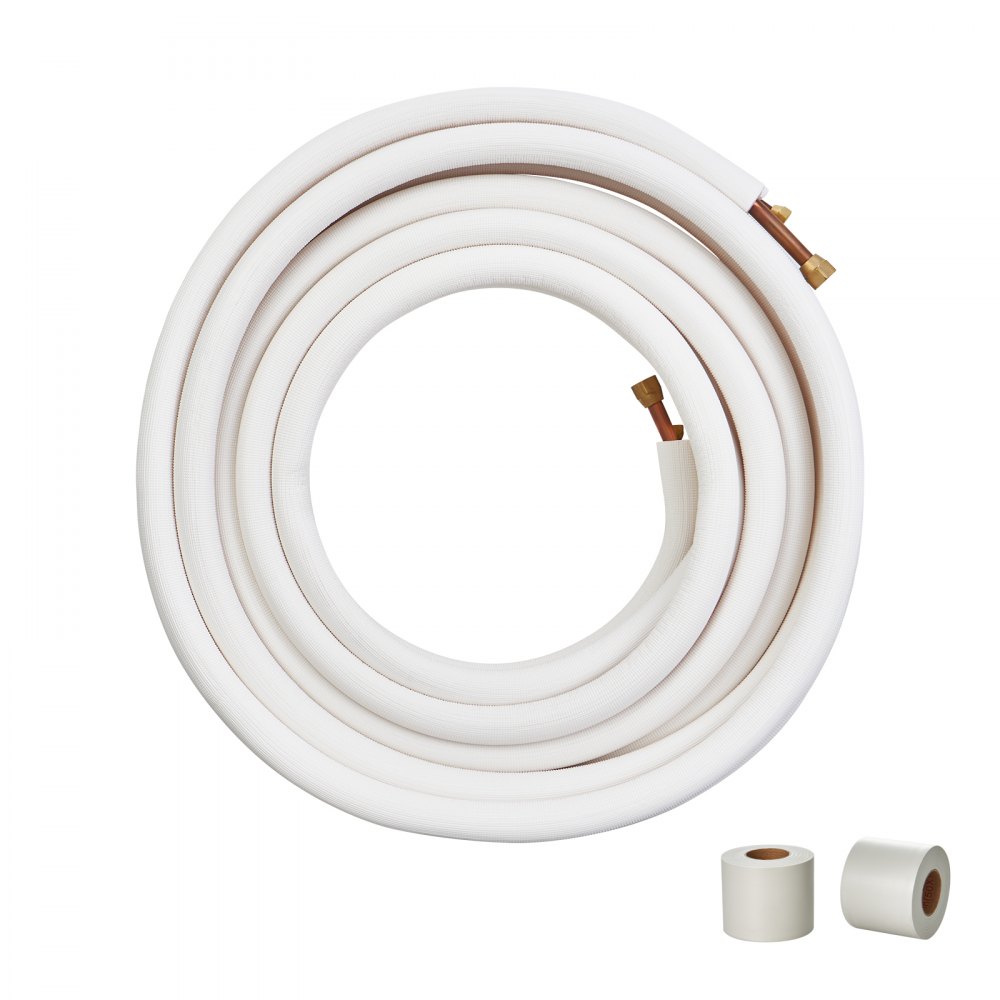

50FT Mini Split Line Set, 3/8″ & 5/8″ O.D Copper Pipes Tubing and Triple-Layer Insulation, for Mini Split Air Conditioning Refrigerant or Heating Pump Equipment & HVAC with Wrapping Strips.
High Flexibility
One Pipe For Multiple Uses
Stringent Material Quality Control
Unquestionable Thermal Insulation
Simple Installation
Long Lifespan

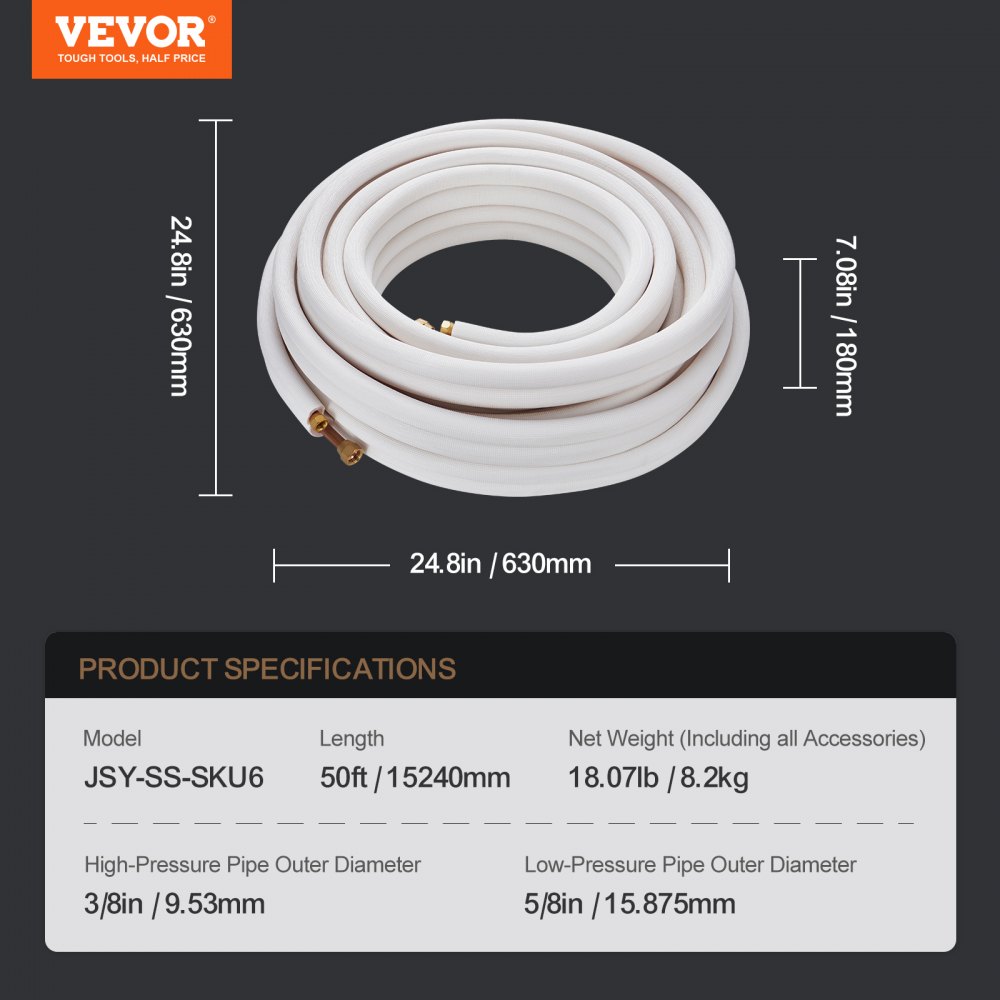

Overall Dimensions (L x W x H): 24.8×24.8×7.08in / 630x630x180mm,Length: 50ft / 15240mm,Net Weight (Including all Accessories): 18.07lb / 8.2kg,Model: JSY-SS-SKU6,High-Pressure Pipe Outer Diameter: 3/8in / 9.53mm,Low-Pressure Pipe Outer Diameter: 5/8in / 15.875mm
