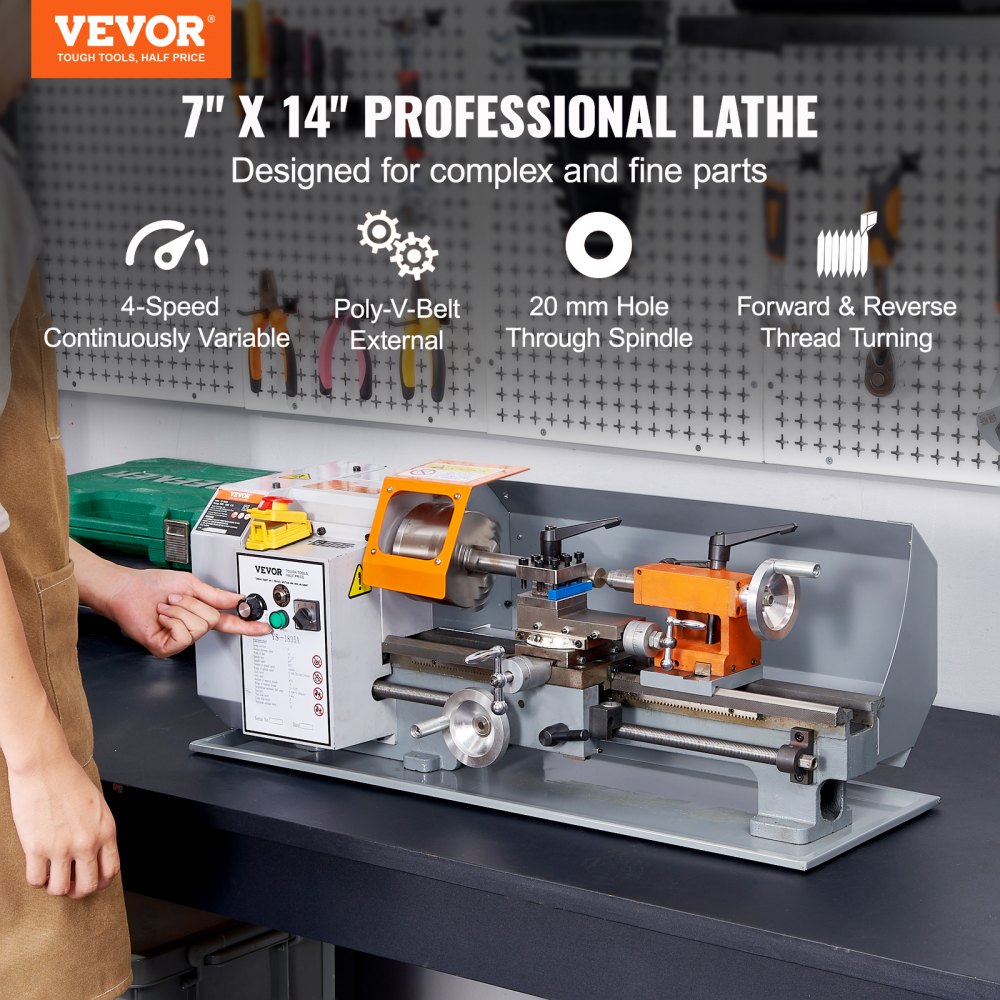

7″ x 14″ Metal Lathe: Our metal lathe machine adopts external poly-V-belt drive technology. The output torque is increased by 3 times, up to 1:9, so you can turn 45# steel bar easily. With 20 mm / 0.79 in hole through spindle diameter, you can process all kinds of rotating surfaces and end faces of rotating bodies.

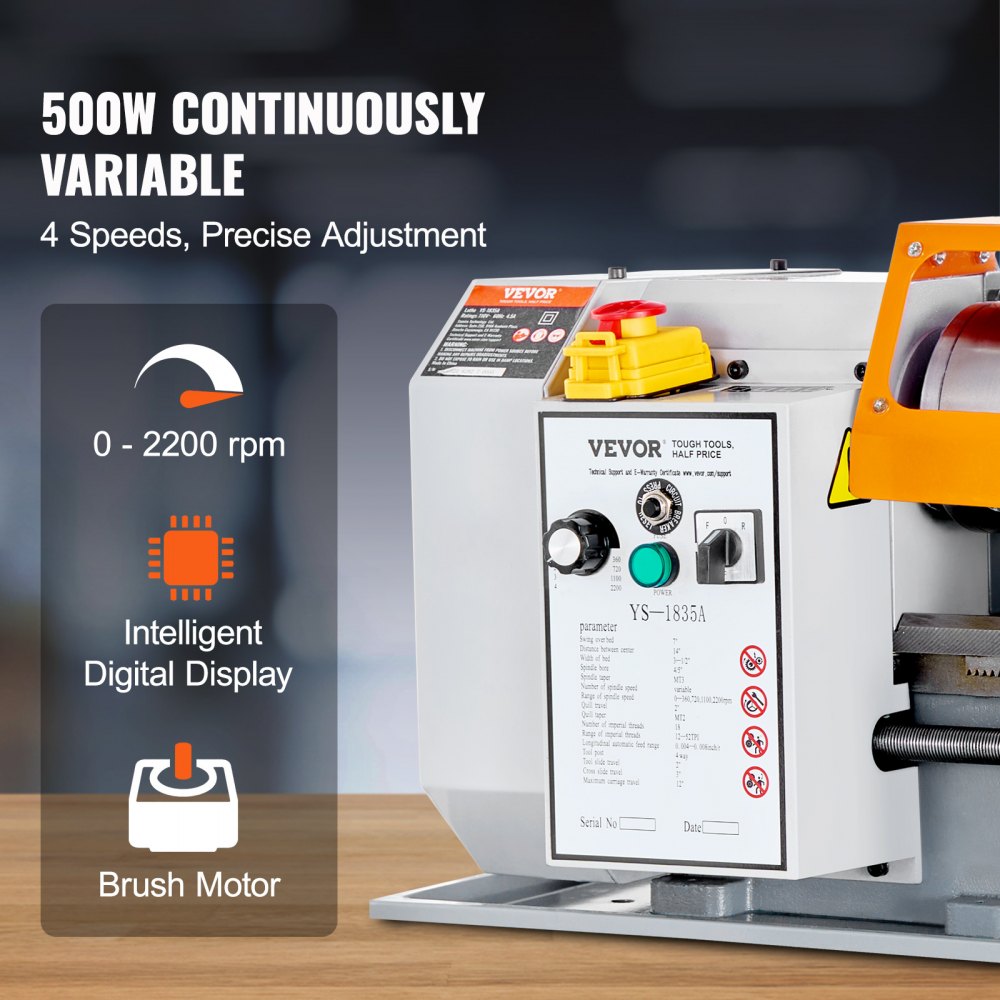

4-Speed Adjustment: The benchtop metal lathe adopts a 4-speed continuously variable function so that you can adjust spindle speed flexibly from 0 to 2200 rpm according to your demand. Intelligent electric control speed regulation and digital display equipment are more convenient for you to adjust and operate accurately.
High Accuracy & Professionalism: The tailstock spindle features an MT2 taper with top-press thread quick-lock technology for user-friendly use without effort. The precision dial is provided in the tailstock handle so that you can work more accurately and professionally.

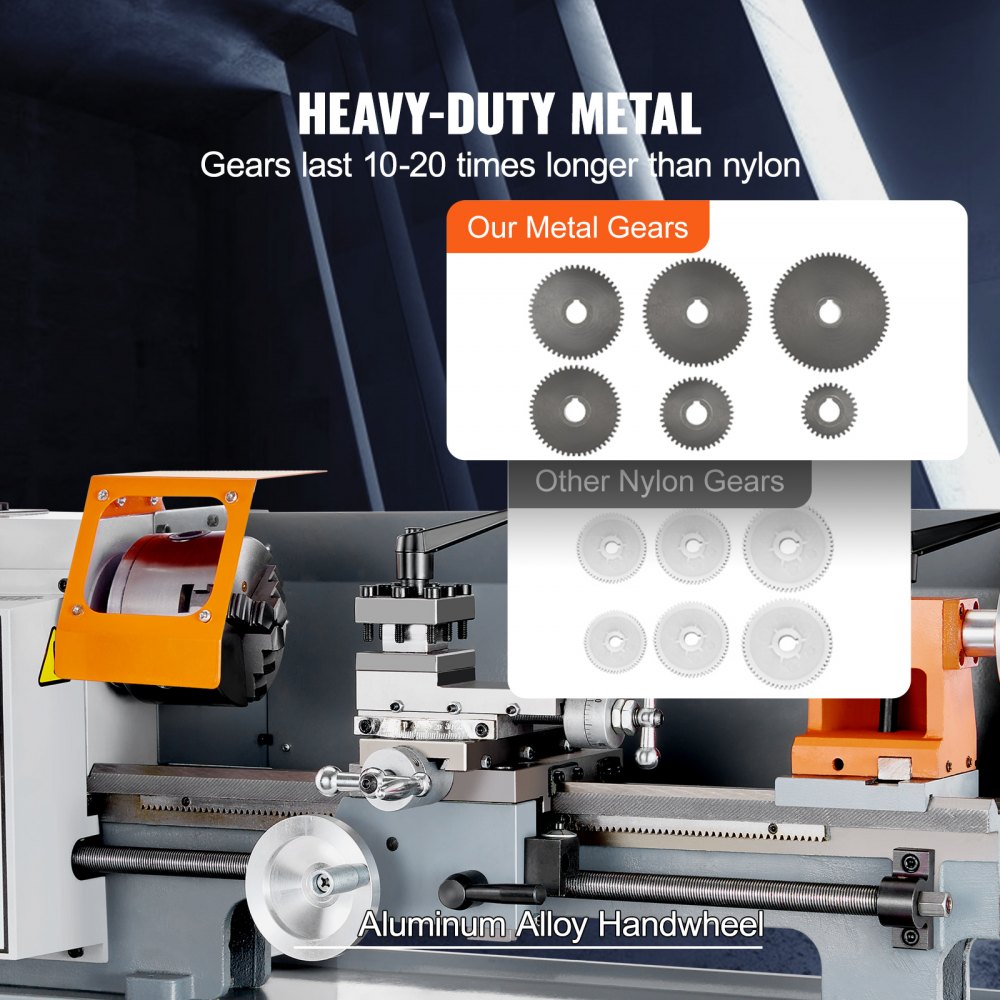

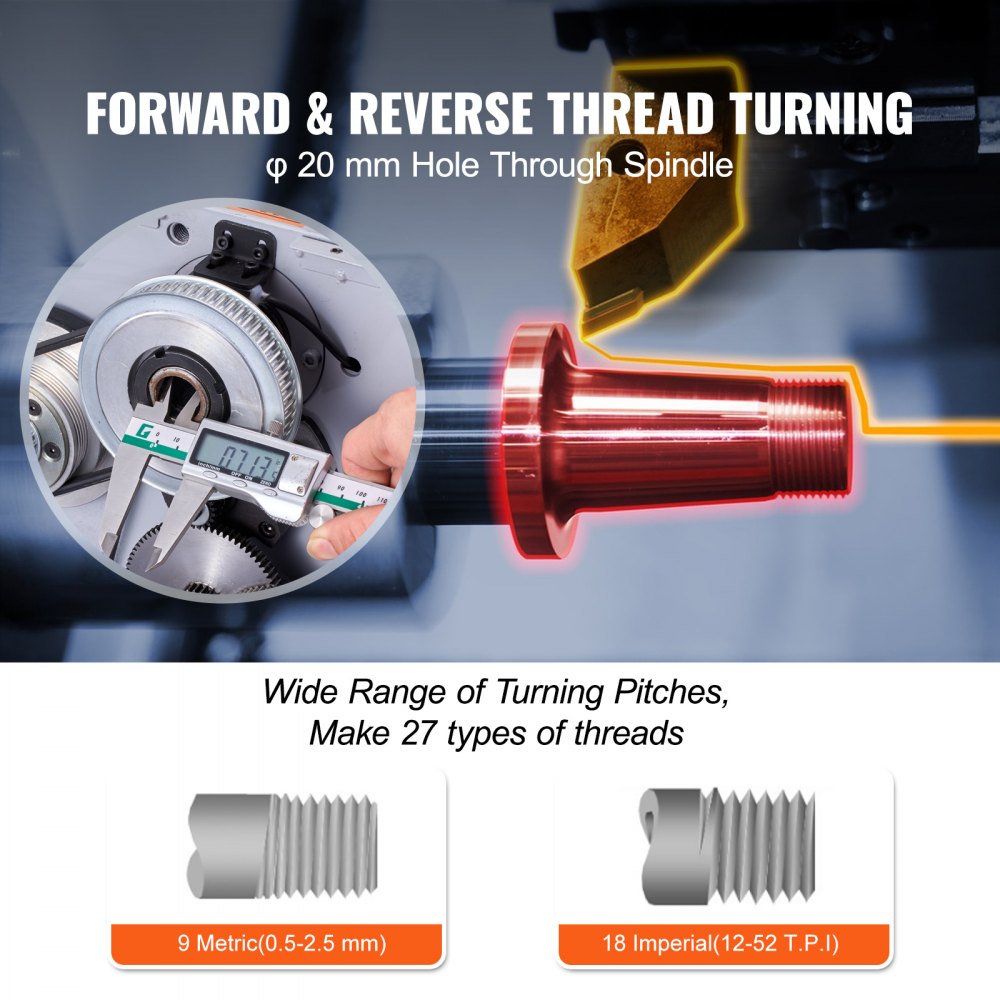

Forward & Reverse Thread Turning: All gears of the power metal lathe are made of high-quality metal material, ensuring a longer service life. It can turn 18 types of imperial threads (12-52 T.P.I) in both forward and reverse.
Security Comes First: The benchtop metal lathe has chuck cover disconnection protection, automatic overload protection, and an added circuit board protector to avoid high-speed reverse short circuits, which protects the security of the operator and the machine motor.

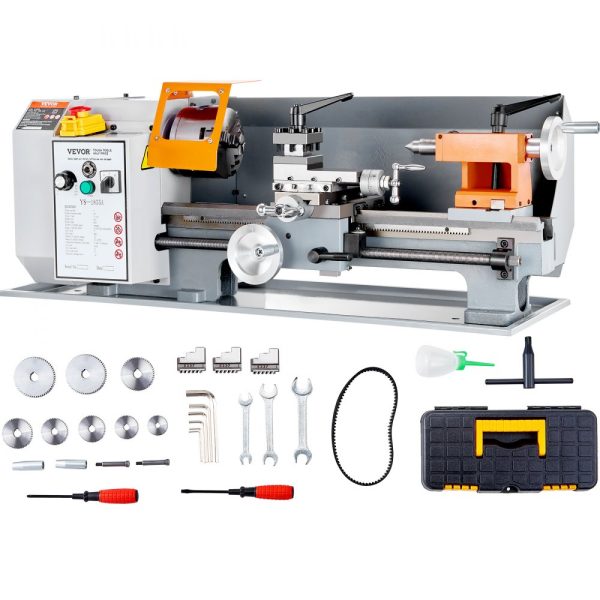

Metal Lathe Machine, 7“ x 13.78“, Precision Benchtop Power Metal Lathe, 0-2200 RPM Continuously Variable Speed, 500W Brush Motor Metal Gears, with Tool Box for Processing Precision Parts
Metal Lathe
Continuously Variable
Enhanced Security

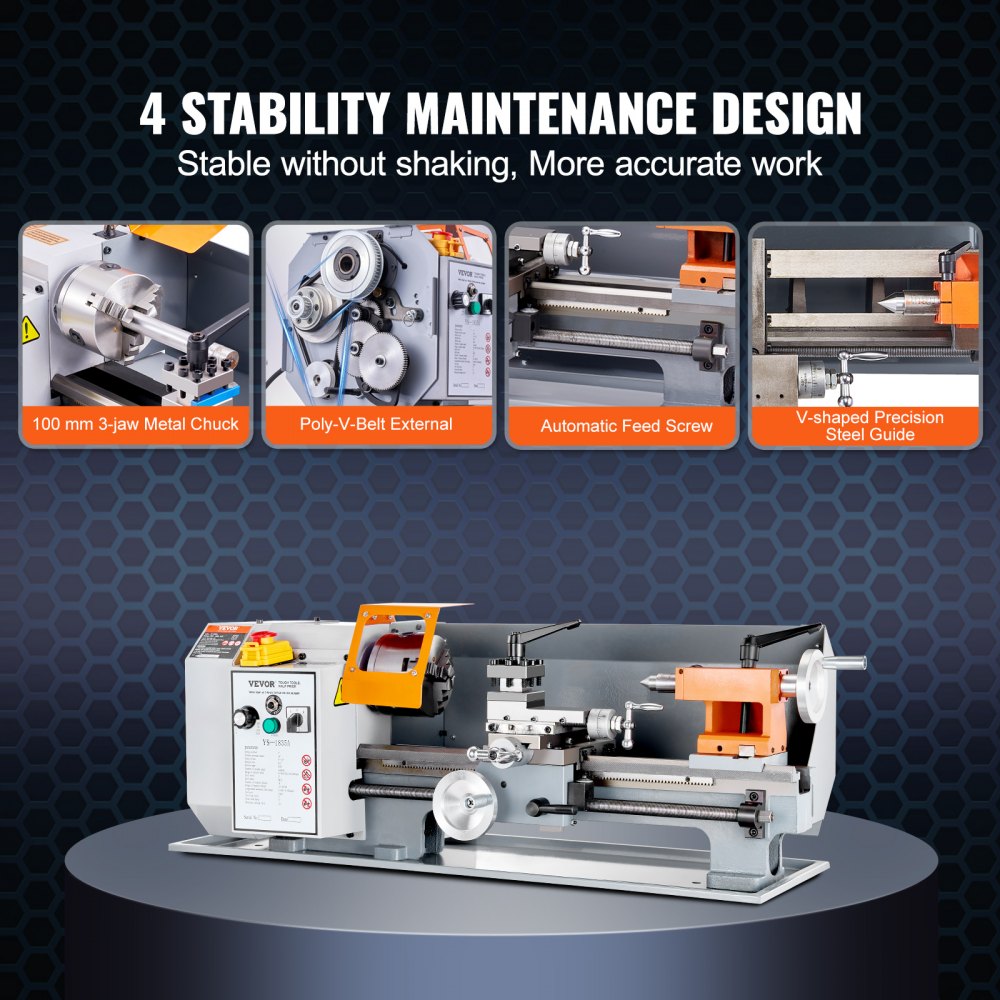

External Poly-V-Belt
High Precision
Wide Application

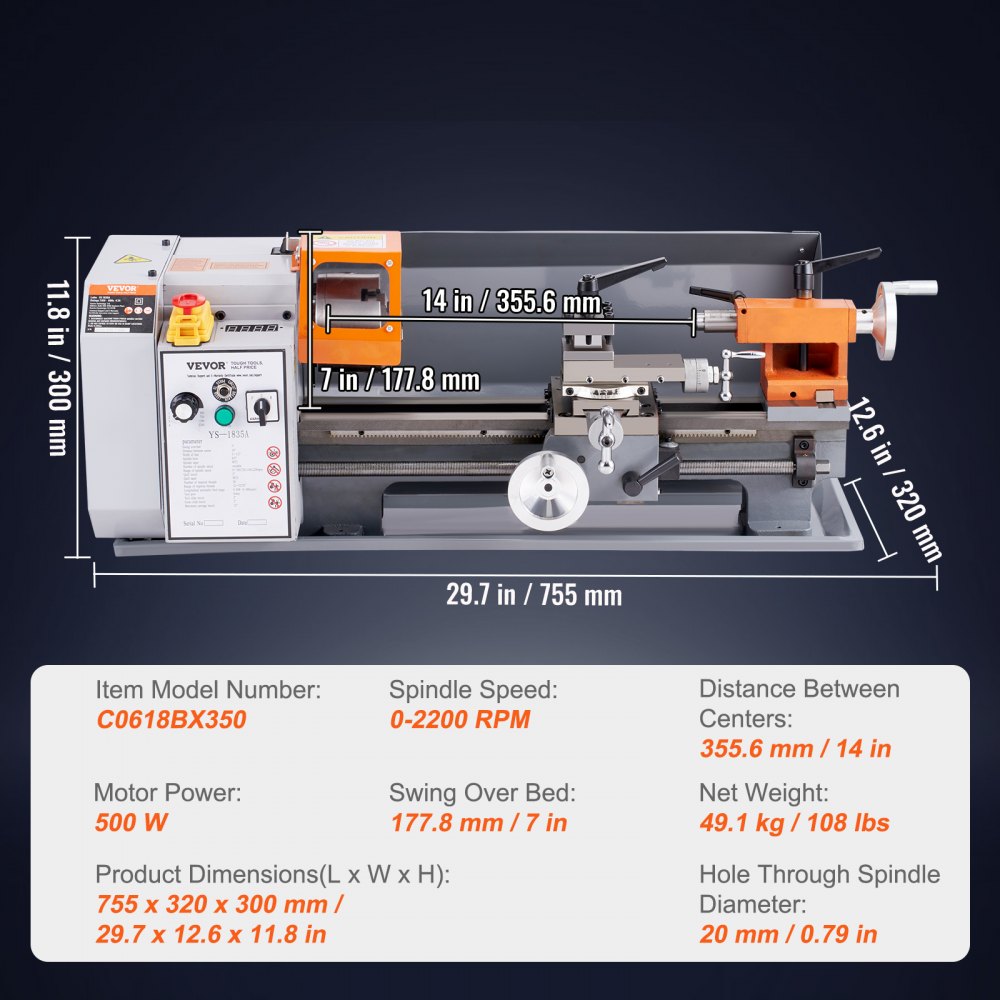

Spindle Speed: 0-2200 RPM,Tail Stock Taper: MT2,Hole Through Spindle Diameter: 20 mm / 0.79 in,Item Model Number: C0618BX350,Motor Power: 500W,Chuck Diameter: φ100 mm / 3.9 in,Spindle Taper: MT3,Product Dimensions(L x W x H): 755 x 320 x 300 mm / 29.7 x 12.6 x 11.8 in,Net Weight: 49.1 kg / 108 lbs,Main Material: HT200 Cast Iron
