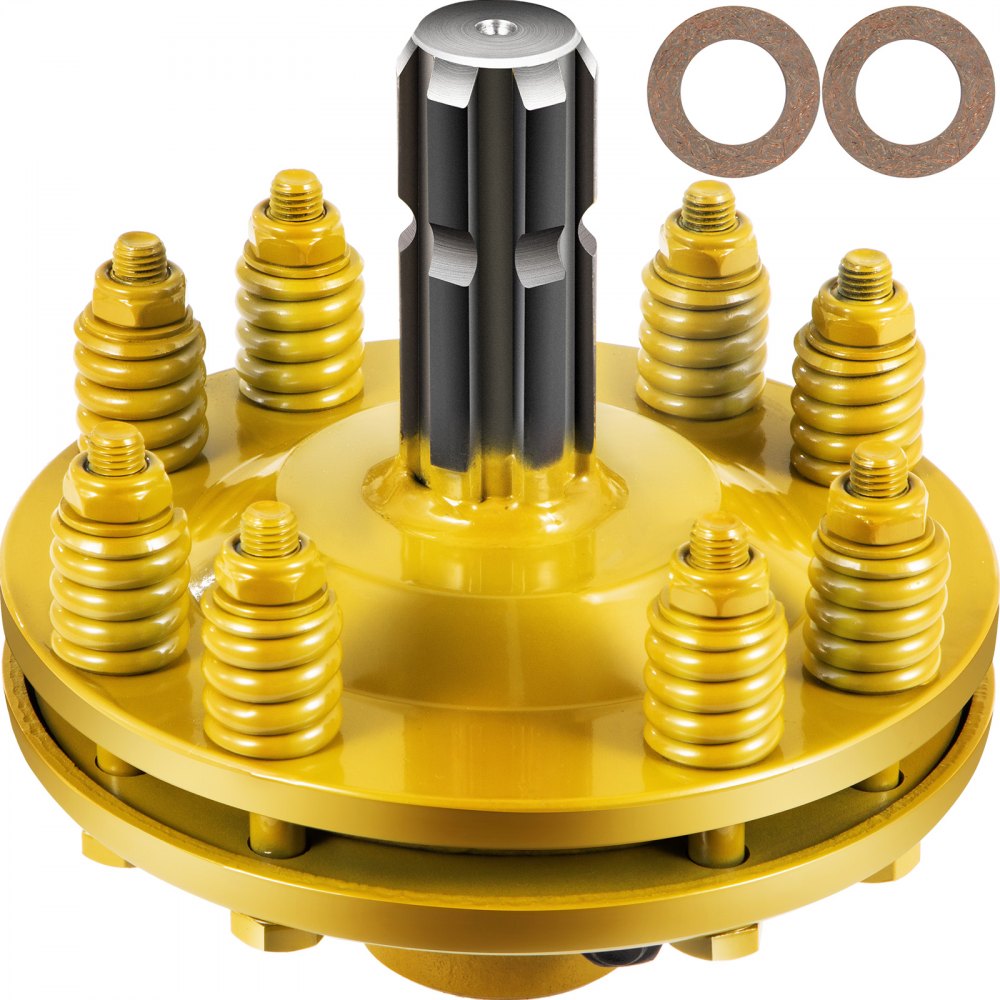

PTO Slip Clutch
1 3/8″ 6 Splined ＆ Yellow ＆ Adjustable Tongue
This splined PTO slip clutch is built from heavy-duty 20CrMnTi steel, and features 1-3/8″ x 6 spline male / female shaft ends with locking conical pin. It is equipped with adjustable tension springs, replaceable friction discs, and allow two speeds at the shaft ends.
-
Allow Two Speeds
-
Quality PTO Slip Clutch
-
1-3/8″ x 6 Spline Ends
-
Easy Torque Adjustments
-
Replaceable Friction Discs

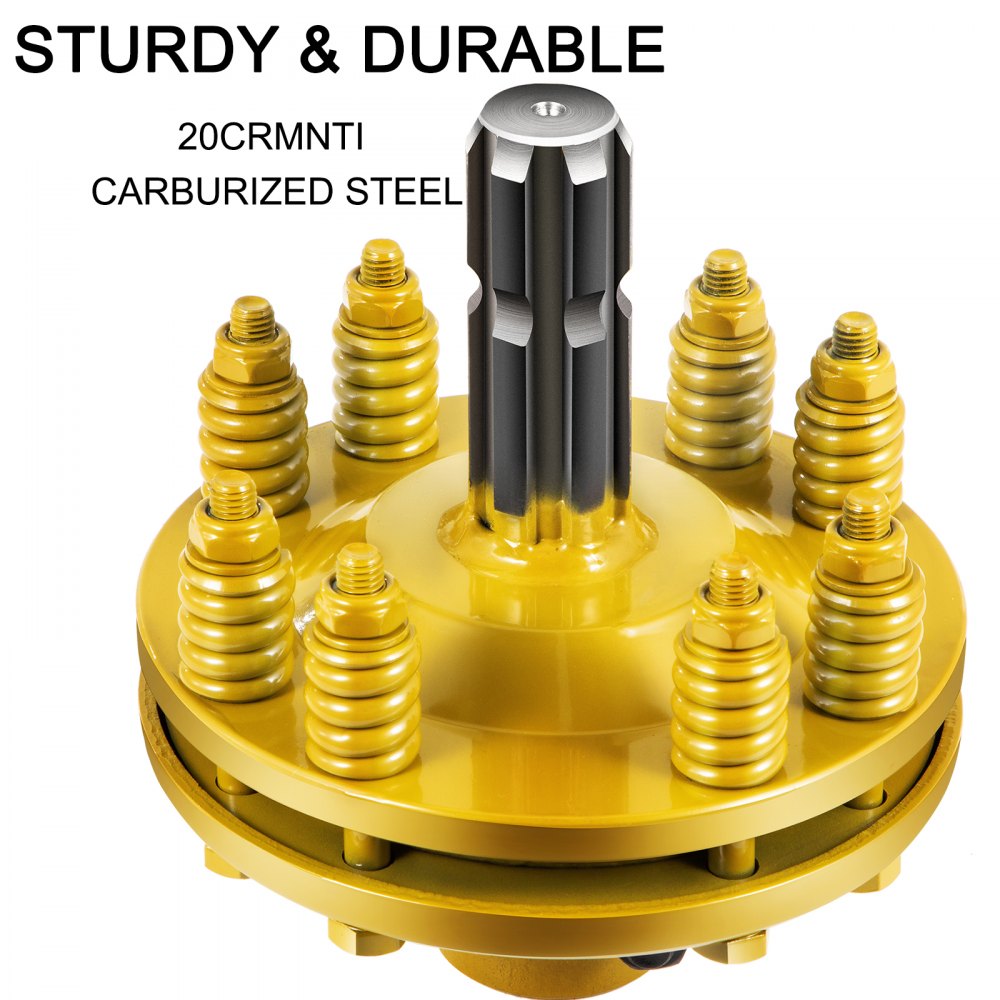

20CrMnTi Carburized Steel
This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a yellow-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.

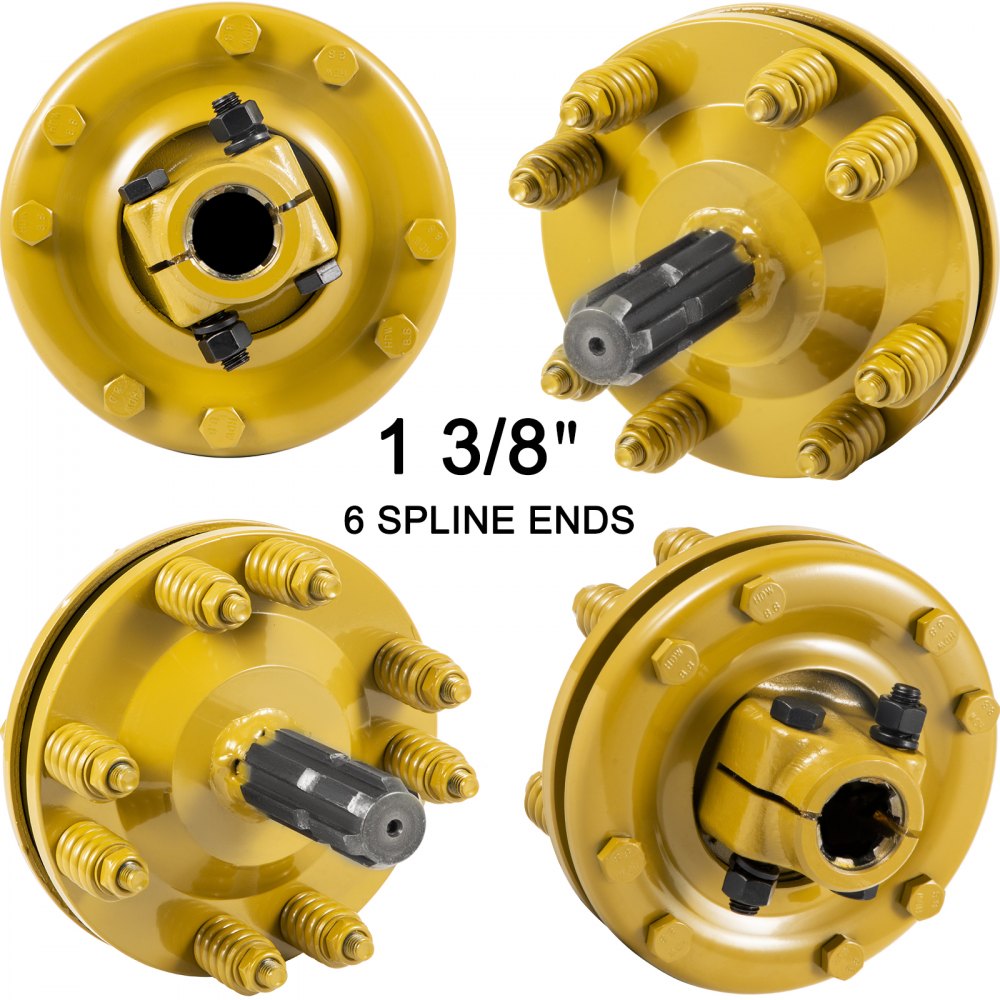

6 Spline Connection Ends
Designed with 6-splined shaft ends, this tractor PTO link slip clutch is compatible with 1-3/8″ implement end or tractor end shafts. It stands out with superior protective ability, and it is way better than the shear bolts.

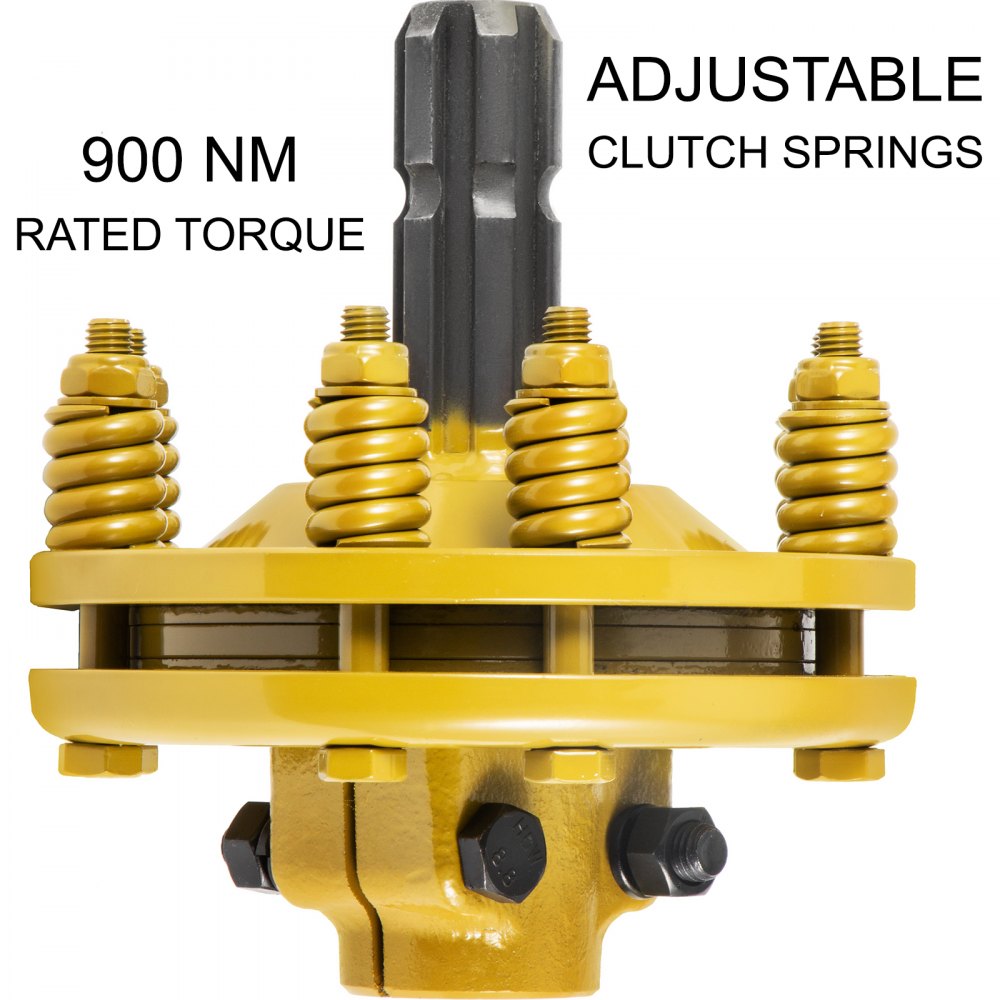

Adjustable Torque
Eight tension springs enable you to adjust the torque easily. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightness to ensure smooth operation.

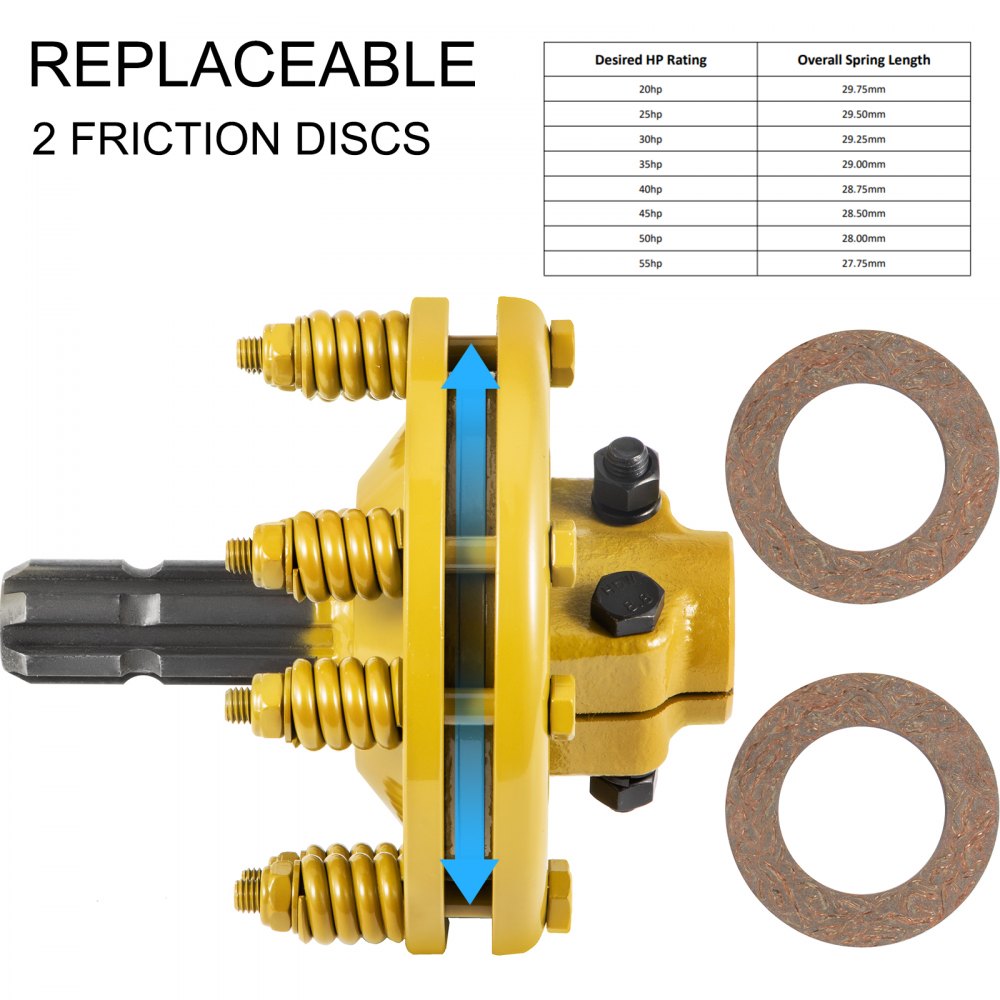

Protective Friction Discs
The friction discs have already been assembled in the fiction lining, and they are replaceable. The torque of the PTO slip clutch can be adjusted from 20 hp to 55 hp, by turning the springs.
Compact Structure

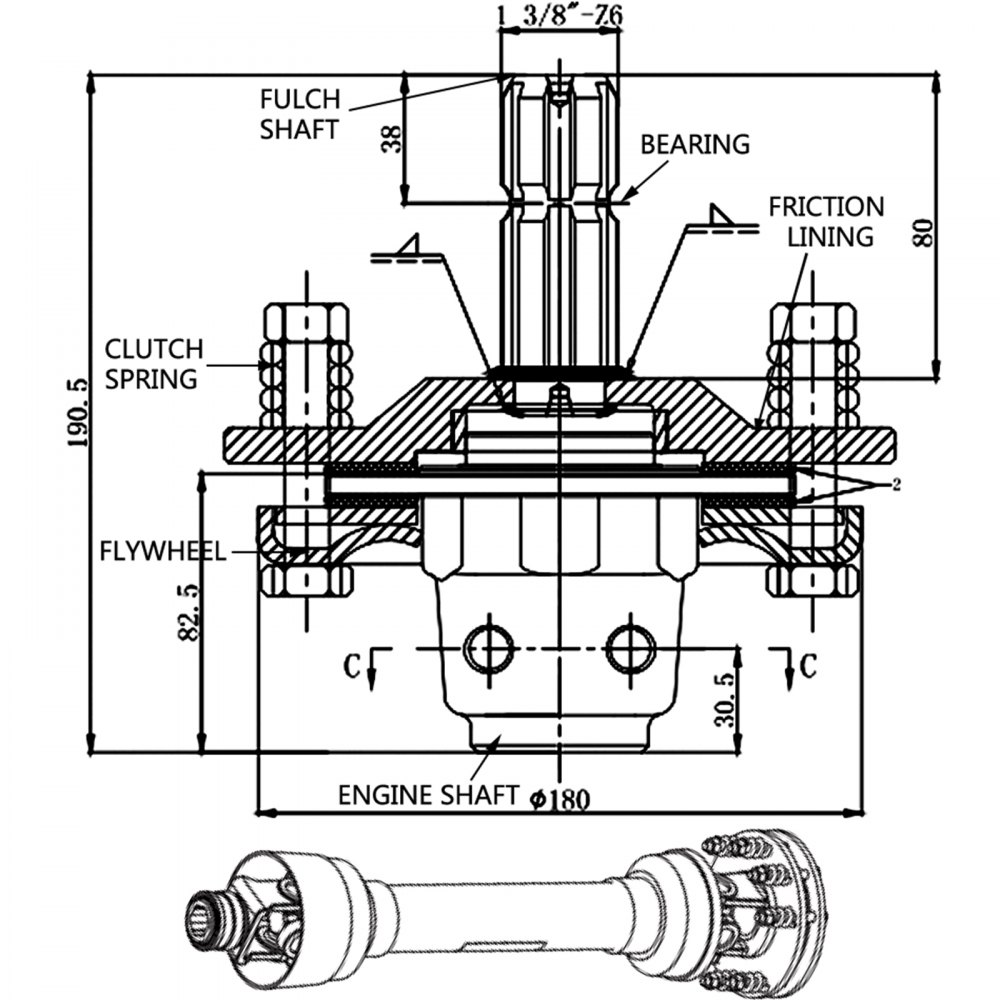

Our PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel. It has two round ends attached to the engine / clutch shaft to perform the implements better.
Wide Application
Our PTO slip clutch has been widely used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.
Specifications
-
Material: 20CrMnTi Carburized Steel
-
Color: Yellow
-
Surface Finishing: Painted
-
Female & Male End Size: 1-3/8″ 6 Spline
-
Tension Springs: Adjustable
-
Friction Discs: Replaceable
-
Rated Torque: 900 nm
-
Adjustment Range: 20 – 55 Horse Power
Package Content
-
1 x PTO Split Clutch
