Brazed Plate Heat Exchanger 60 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
-
High Thermal Efficiency
-
Energy Optimized
-
Robust Construction
-
Compact Design

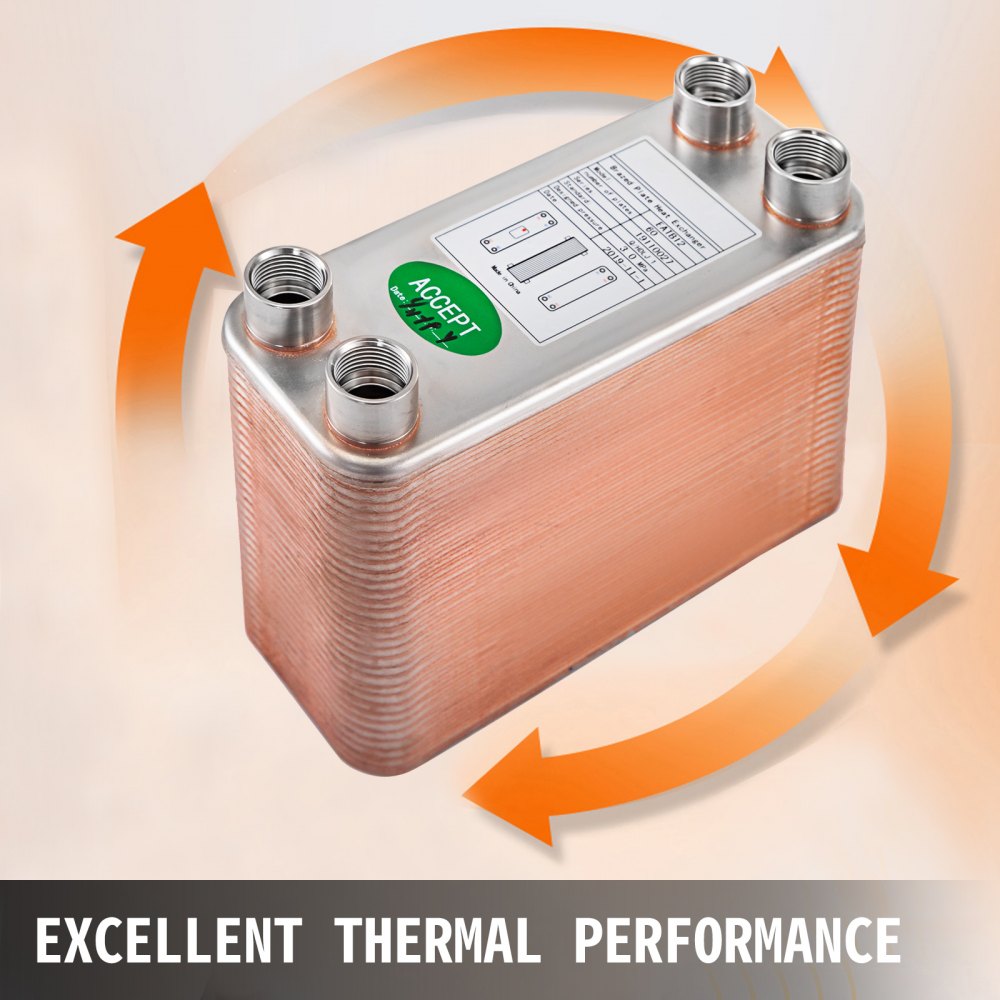

Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

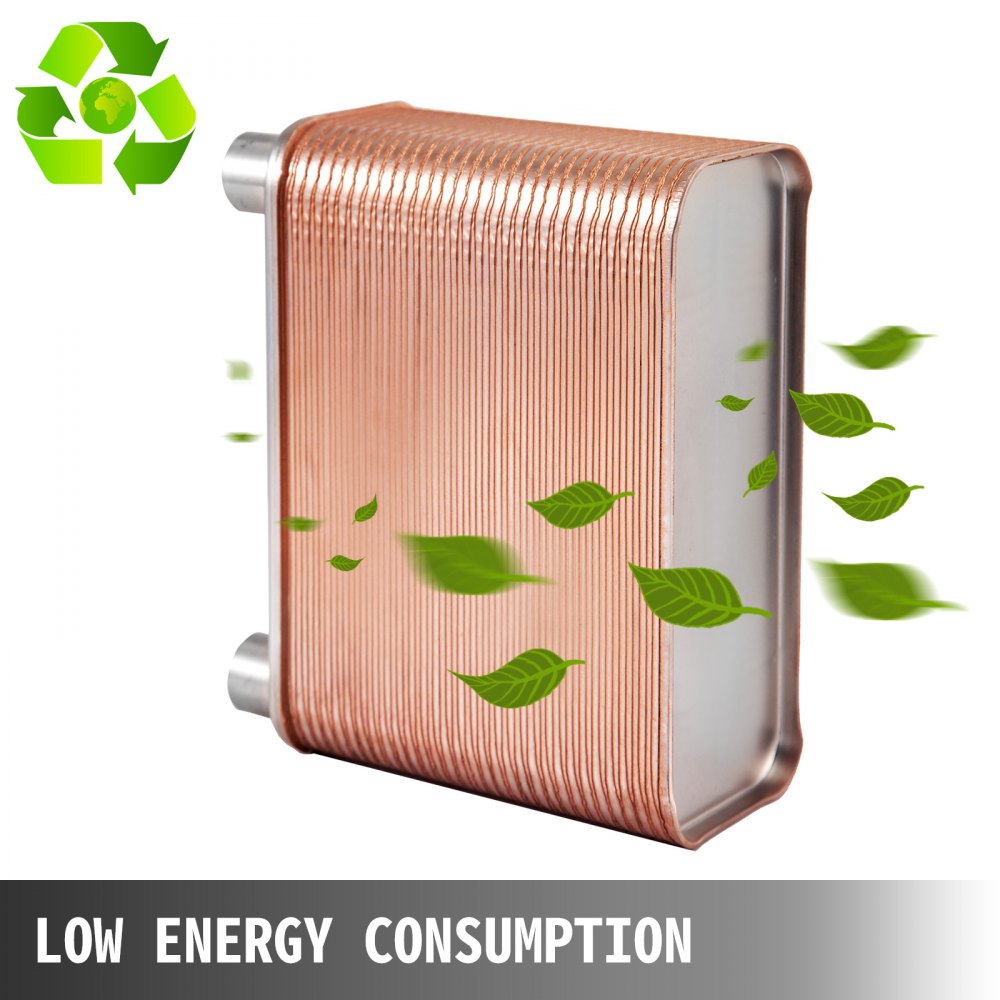

Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

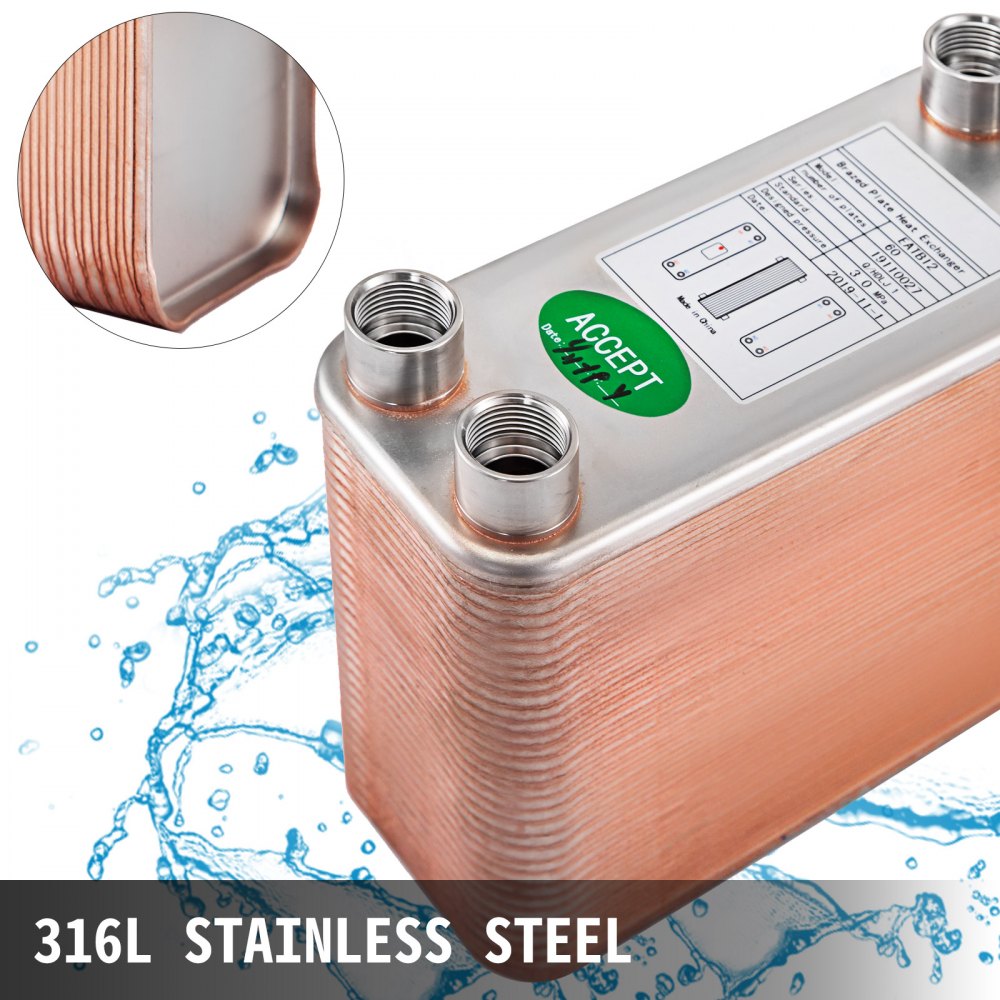

316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.

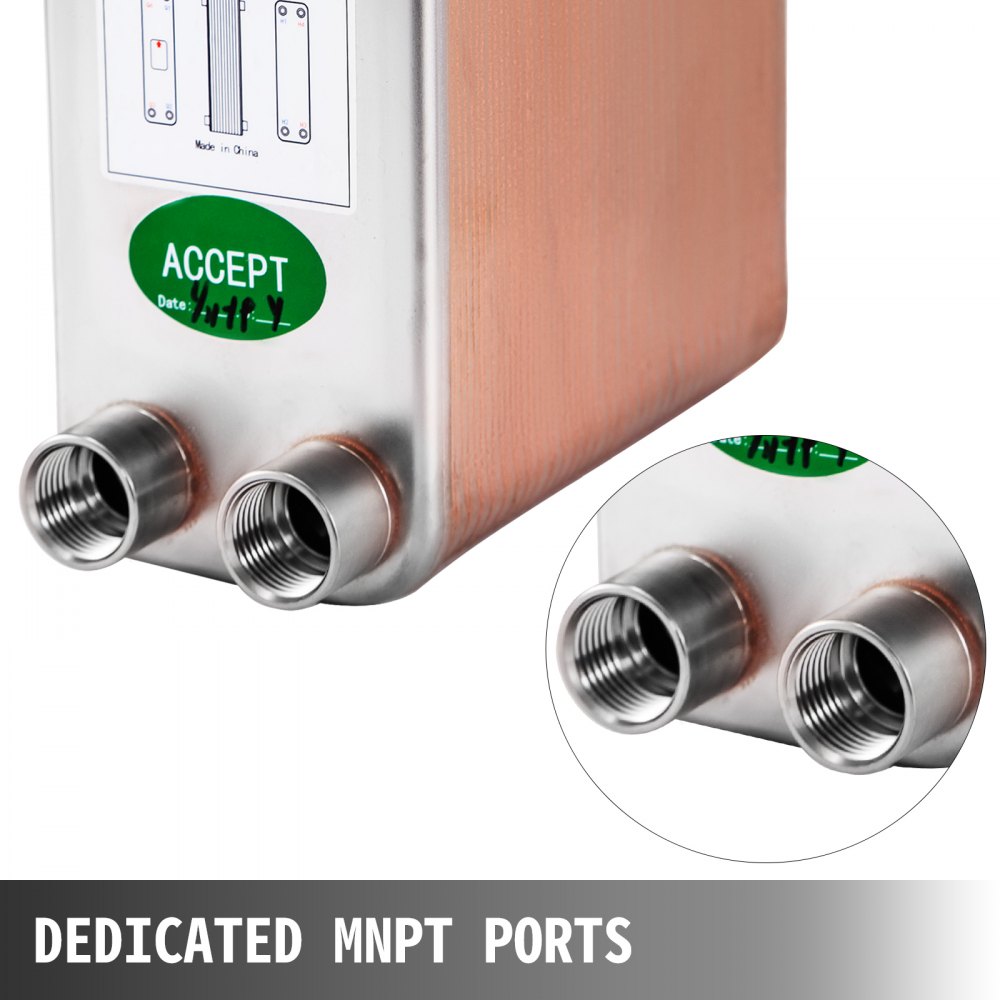

Dedicated FB Ports
Four Thickened 1/2″ BSP FPT ports for your easier installation.

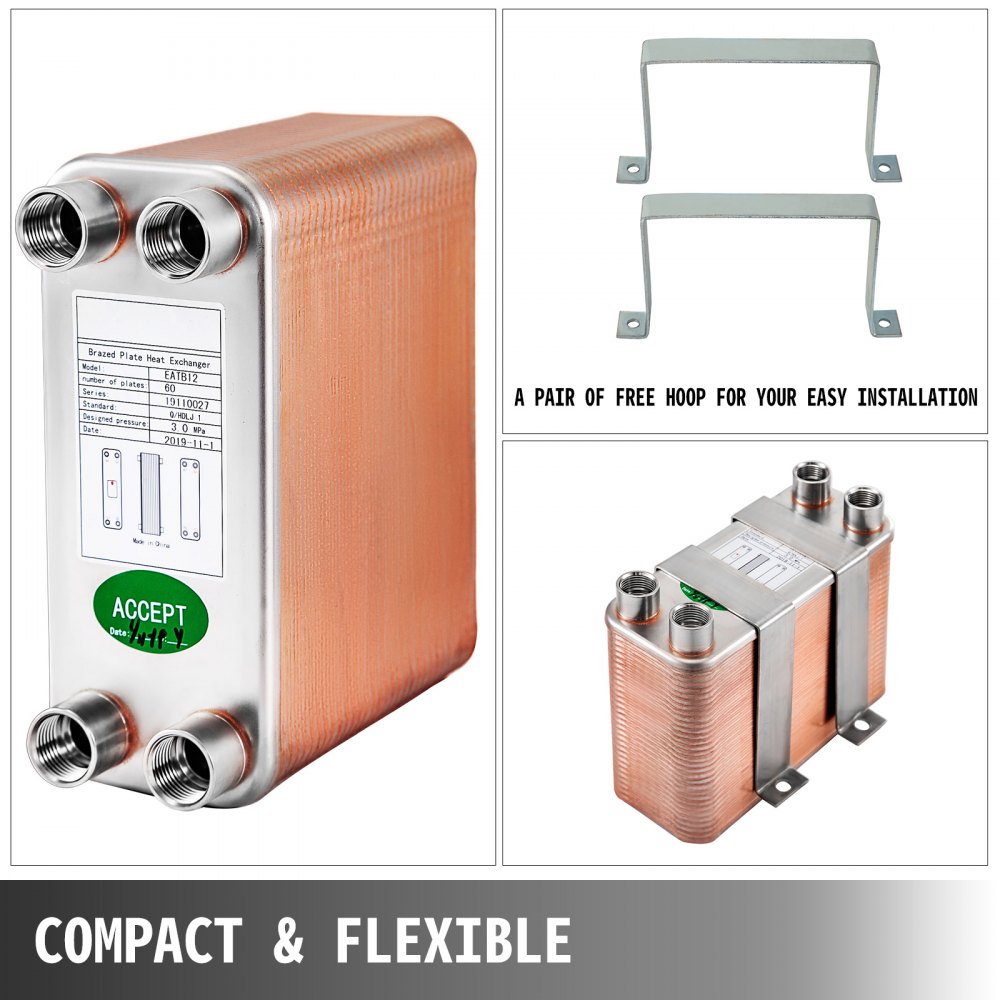

Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
Wide Application
The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.
Specifications
-
Model: B12-60
-
Material: 316L +99.9% Copper
-
Ports: 1/2″ BSP FPT
-
Plate Quantity: 60
-
Design Pressure(Max):3.0 Mpa
-
Test Pressure:(Min):4.5 Mpa
-
Design Temp.(℃): Max +225
-
Design Temp.(℃): Min -196
-
Dimension: 7.6″ x 2.8″ x 6.3″ / 19.4 cm x 7.2 cm x 16.1 cm

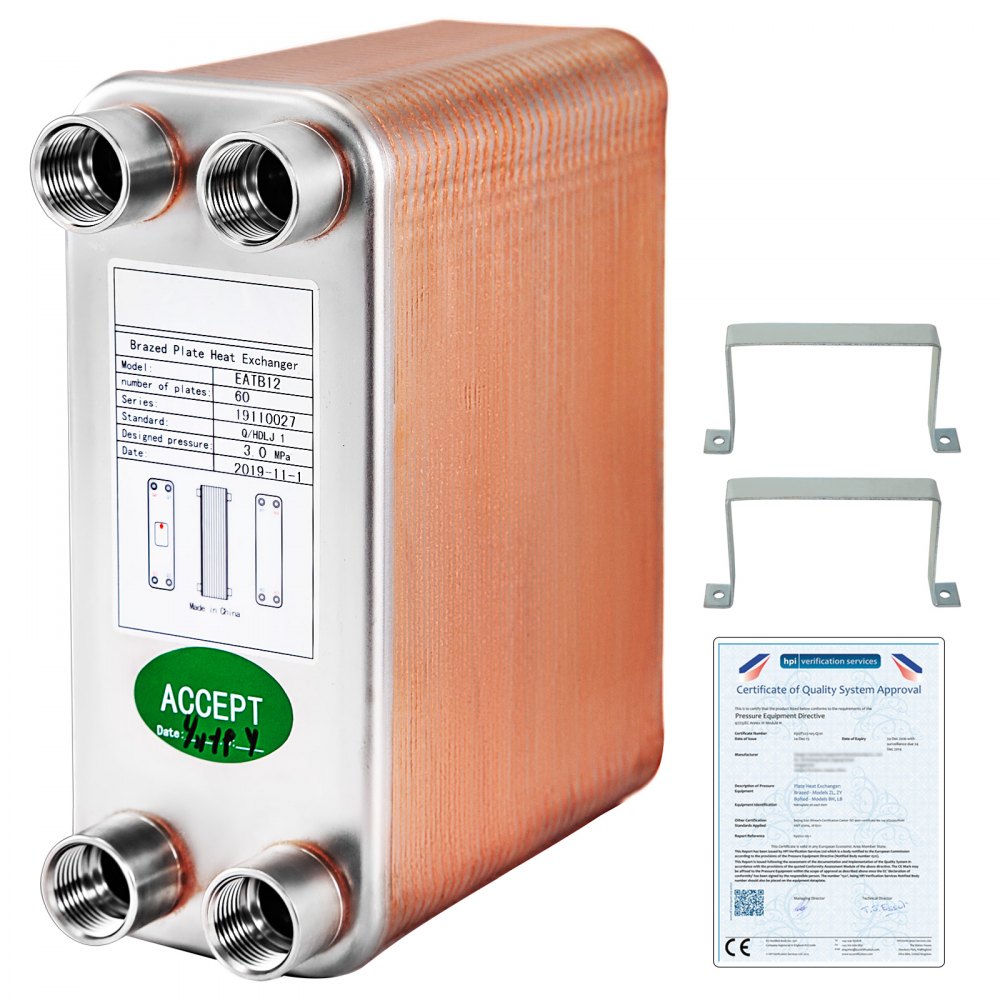

Package Content
-
1 x Heat Exchanger
-
1 x A Pair of Hoops
