Durable Aluminum PEX Heat Transfer Plates 4ft Radiant Heat for 3/4 PEX Pipe Easy to Install and Trim Perfect for Wood Floors 100 Pieces

Even Heat Distribution: Tired of the winter chill? This unique U-shaped heat transfer plate is designed to snugly fit with PEX pipes, ensuring even heat distribution across the entire radiant floor. It can reduce heat loss by 30%-40%, maintaining a stable room temperature for your comfort throughout the winter.

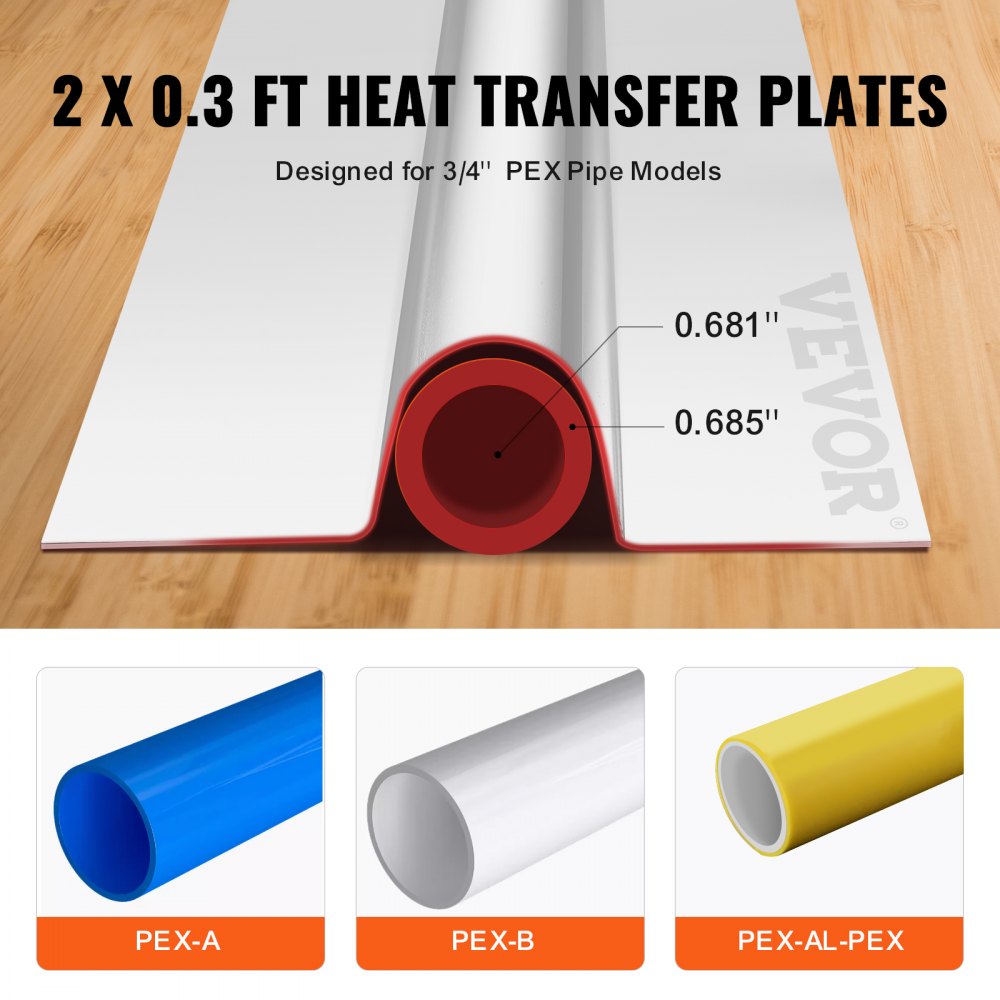

Versatile Compatibility: These 4×0.3 ft (1200×100 mm) heat transfer plates are suitable for 3/4“ (19.05 mm) PEX pipes, including PEX-A, PEX-B, PEX-AL-PEX pipes, with an ID of 0.681“ and OD of 0.685“. Before purchasing, make sure to check the dimensions of your plumbing pipes.

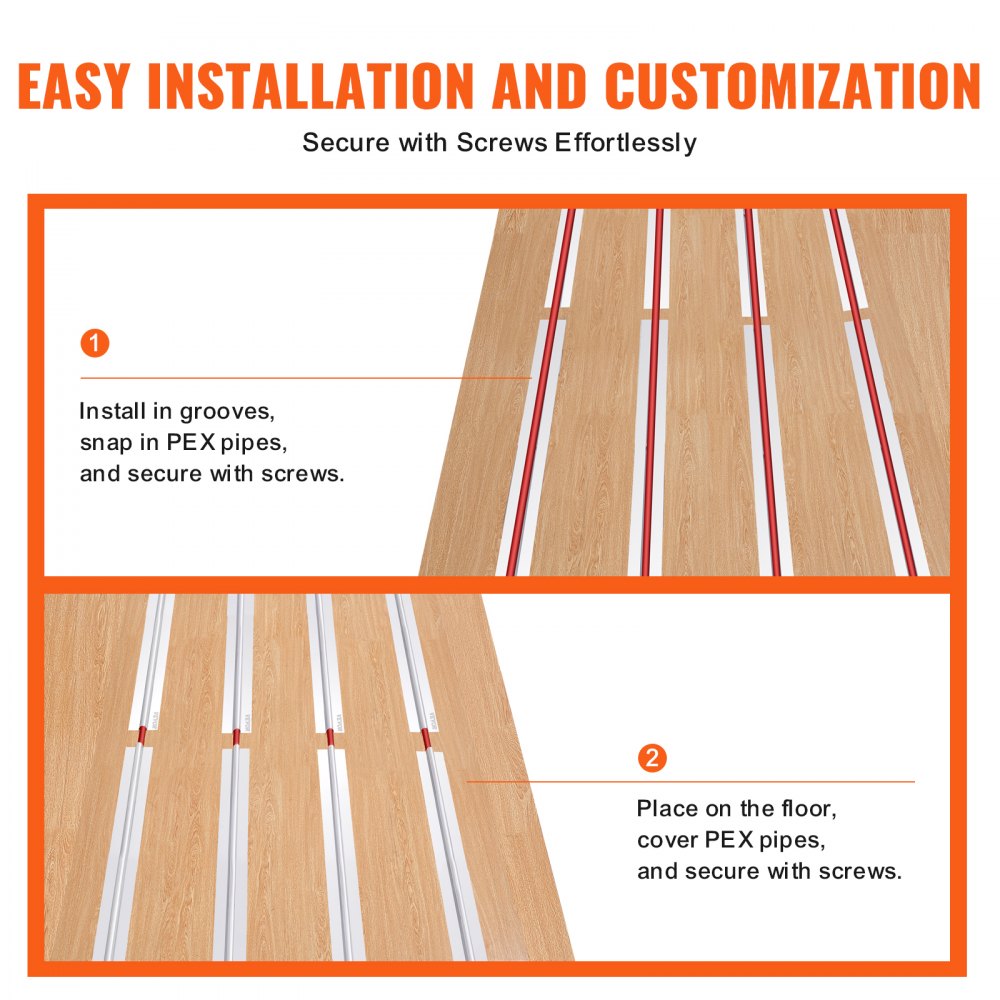

Easy Installation: Choose from two installation methods based on your floor structure. Remember to wear gloves and remove the protective film from the heat transfer plate surface before installation to ensure optimal heat transfer. Leave a 1-2 inch gap between two heat transfer plates for long-term stability. You can also trim the plates to your desired length for effortless installation.

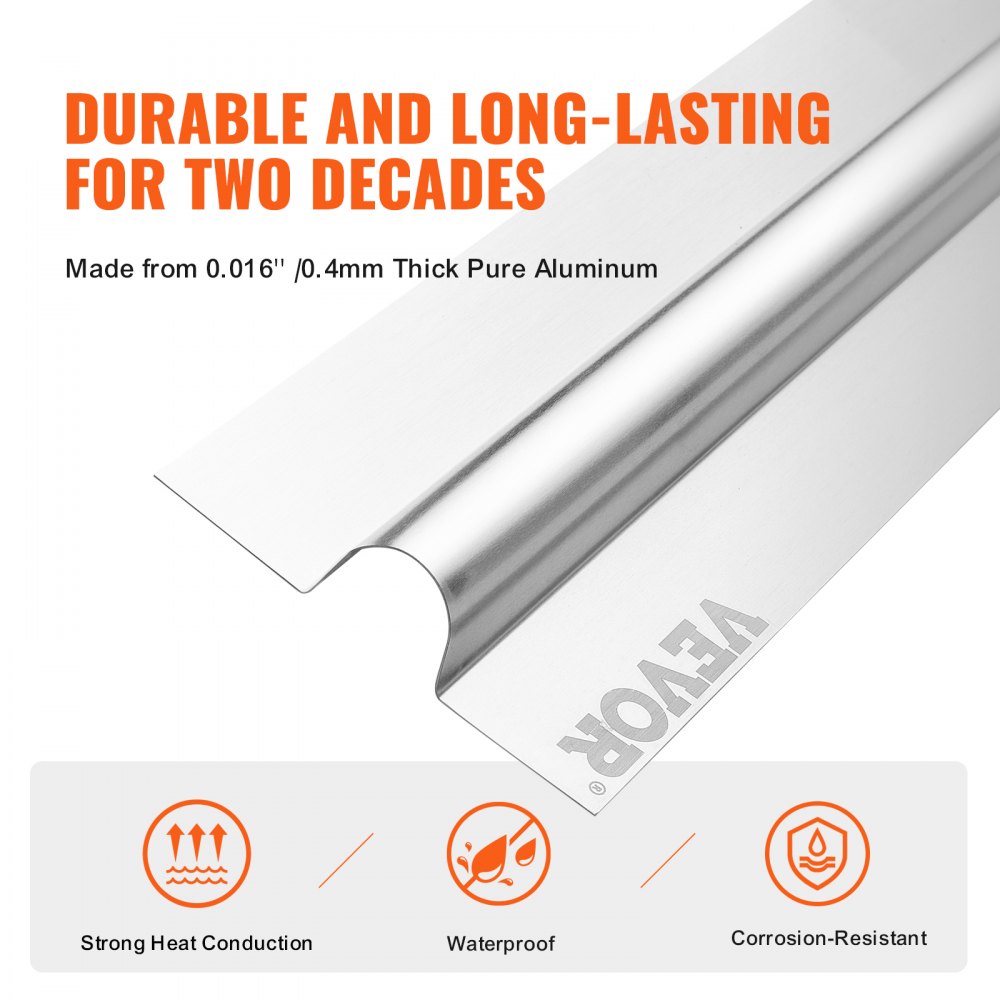

Durable Quality: These heat transfer plates are made of 0.016“ (0.4mm) thick pure aluminum, which is waterproof, corrosion-resistant, and provides efficient heat transfer. They remain unaltered and can last up to 20 years.

Wide Applications: You can install these PEX heat transfer plates in various radiant heating systems, including between floor joists, sandwiched between layers, or above subflooring (over sleepers). They are suitable for use in living rooms, bedrooms, study spaces, and other wooden-framed or wooden-floored homes with plumbing pipes.

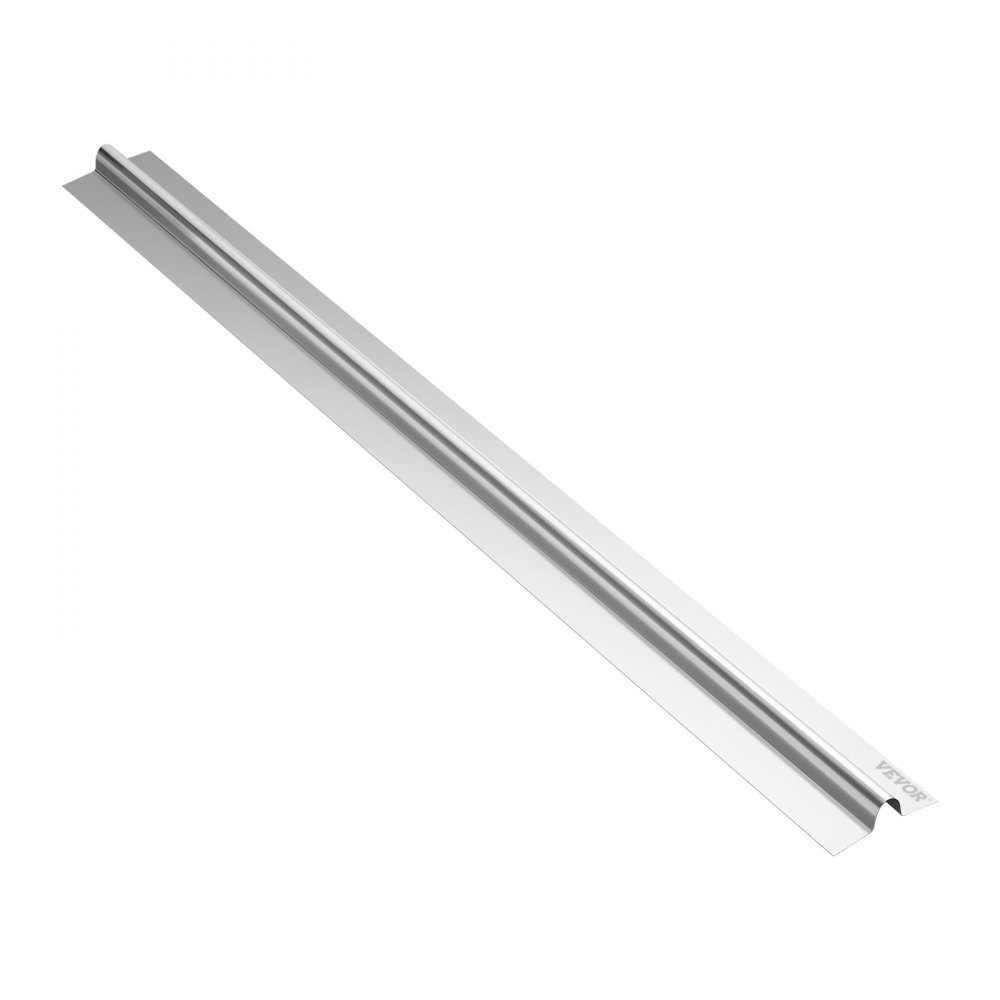

PEX Heat Transfer Plates 4 ft, Radiant Heat Plates for 3/4″ PEX Pipe, Durable Aluminum & Easy Trimming and Install Underfloor Heat Tubing Plates, Perfect for Wooden Floors (100pcs)
Uniform Heat Dispersion
Versatile Compatibility
Easy Installation
Durable Quality
Versatile Applications
Rich Combination

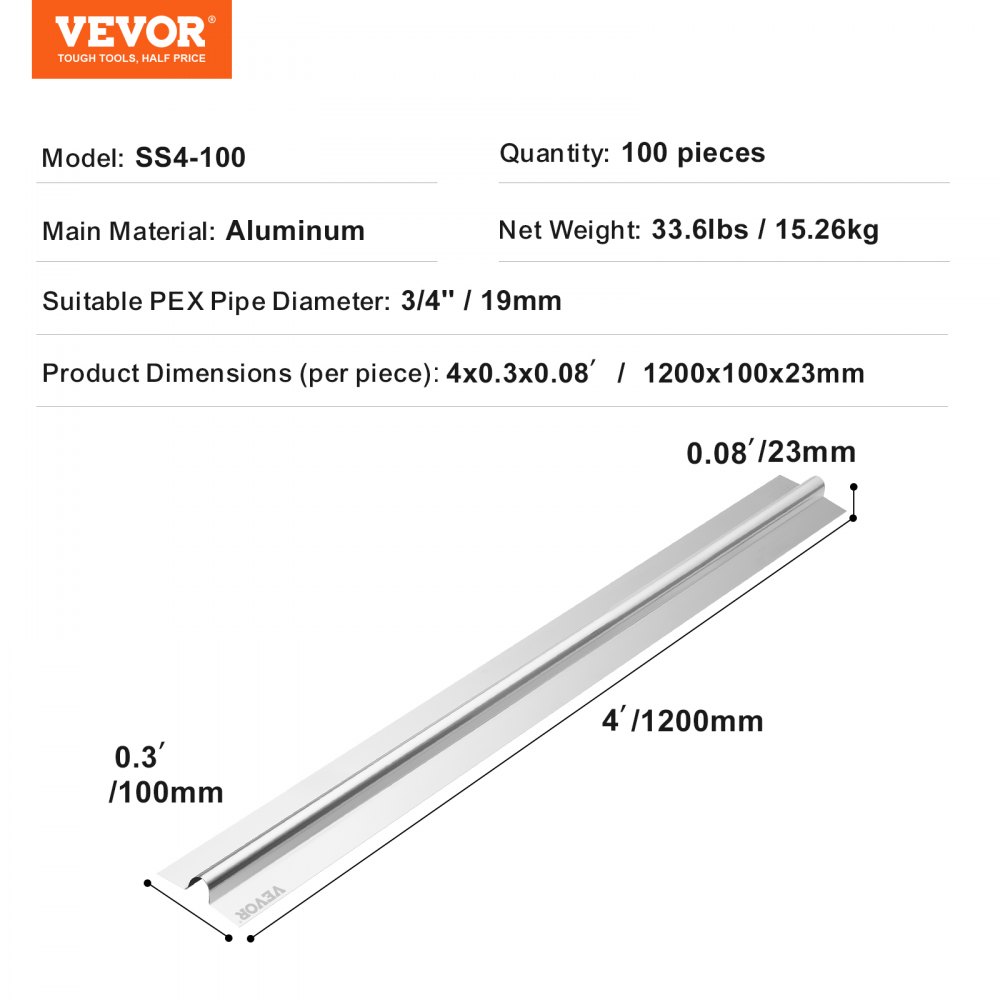

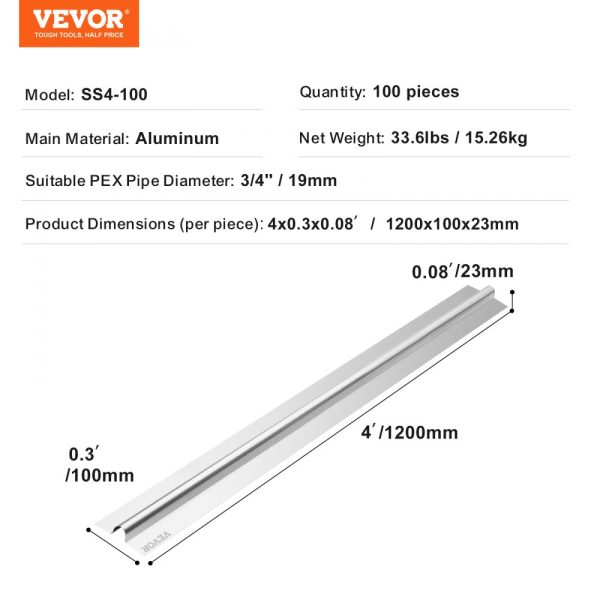

Product Dimensions (per piece): 4×0.3×0.08 feet / 1200x100x23mm,Suitable PEX Pipe Diameter: 3/4“ / 19 mm,Model: SS4-100,Quantity: 100 pieces,Net Weight: 33.6 lbs / 15.26 kg,Main Material: Aluminum
