A-80S Precision Optical Fiber Fusion Splicer
This fiber fusion splicer machine is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical.
-
Faster Splicing & Heating
-
3 in 1 Fiber Holder
-
Automatic Heating
-
Long Time Standby
Excellent Splicing Performance
The fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 8 seconds, heating in 30 seconds. The high-speed image processing technology unique precision positioning technology is applied while working.

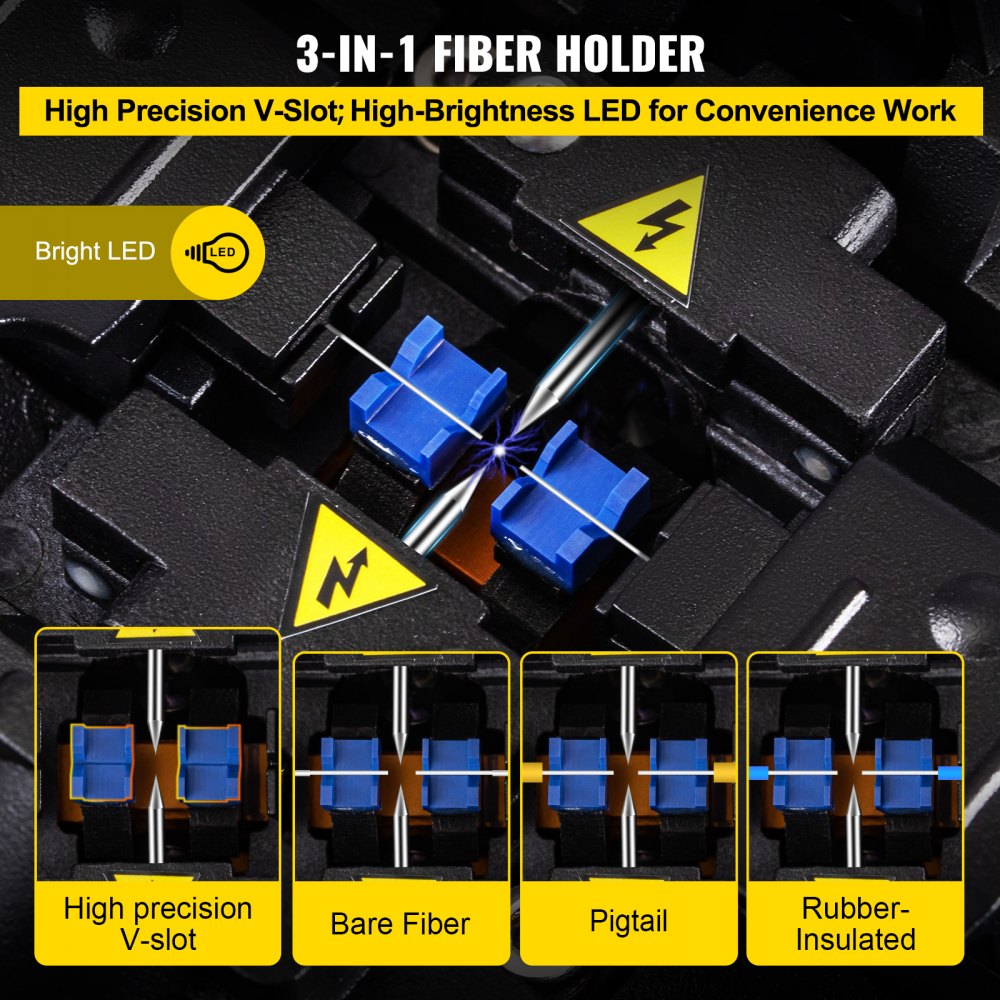

3 In 1 Fiber Holder
SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable. Applicable splice machine fibers: SM(0.02db); MM(0.01db); DS(0.04db); NZDS(0.04db). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects.
Optical Power Meter
The fiber fusion splicer machine comes with plenty of accessories. The FL-2310 power meter + VFL and FL-210 fiber cleaver contribute a lot to the easy use. In addition, the toolbox keeps it clean and protects it against strong vibrations and shocks.
Automatic Heater
The fusion machine features a V-shaped high-power automatic heater. It can achieve rapid heating in 20 seconds and 180-degree three-dimensional heating. Heat shrink bush: 60 mm, 40 mm, and a series of the miniature bush.
Clear LCD & 5200 mAh Battery
5-inch high-resolution LCD screen. Magnification times: 300 times (X/Y Axis Displayed Separately); 200(X/Y Axis Displayed Simultaneously). Easily and clearly observe the optical fiber. 5200 mah high-capacity lithium battery can continuously splice and heat about 200 times.
Sturdy Construction
Sturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. Fiber optic fusion splicer is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications.
Specifications
-
Model: FL-2310 Power Meter / FL-210 Fiber Cleaver
-
Splicing time: 8s
-
Heating time: 30s
-
Cleaved Length: 8～16mm
-
Fiber Image/ Magnification: 300/200
-
Heat shrink bush: 60mm, 40mm and a series of miniature bush
-
Power supply: 11.8V built-in lithium battery
-
Battery Capacity: 5200mah
-
Charging time: 3h
-
External adapter: input AC100-240V50/60HZ, output DC11.8V/4.5A
Package Content
-
1 x Fusion Splicer
-
1 x Power Meter
-
1 x Fiber Cleaver
-
1 x Power Adapter
-
1 x Wire Stripping Pliers
-
1 x Miller stripper
-
1 x Kit of Accessories
