6″ Multifunction Precision Lockdown Vise
During workshop operation, many workpieces minor damage due to their materials or excessive force, which caused work delays or economic losses. Therefore, to avoid damage to your workpiece, we recommend that you use the vise to clamp the workpiece. Our vise has a strong clamping force and can hold the workpiece very firmly. It can ensure the stability of the workpiece and avoid damage.
-
Premium Quality Structure
-
Powerful Clamping Force
-
High Accuracy Screw
-
Humanized Design
-
Multifunctional Tool
Durable Material

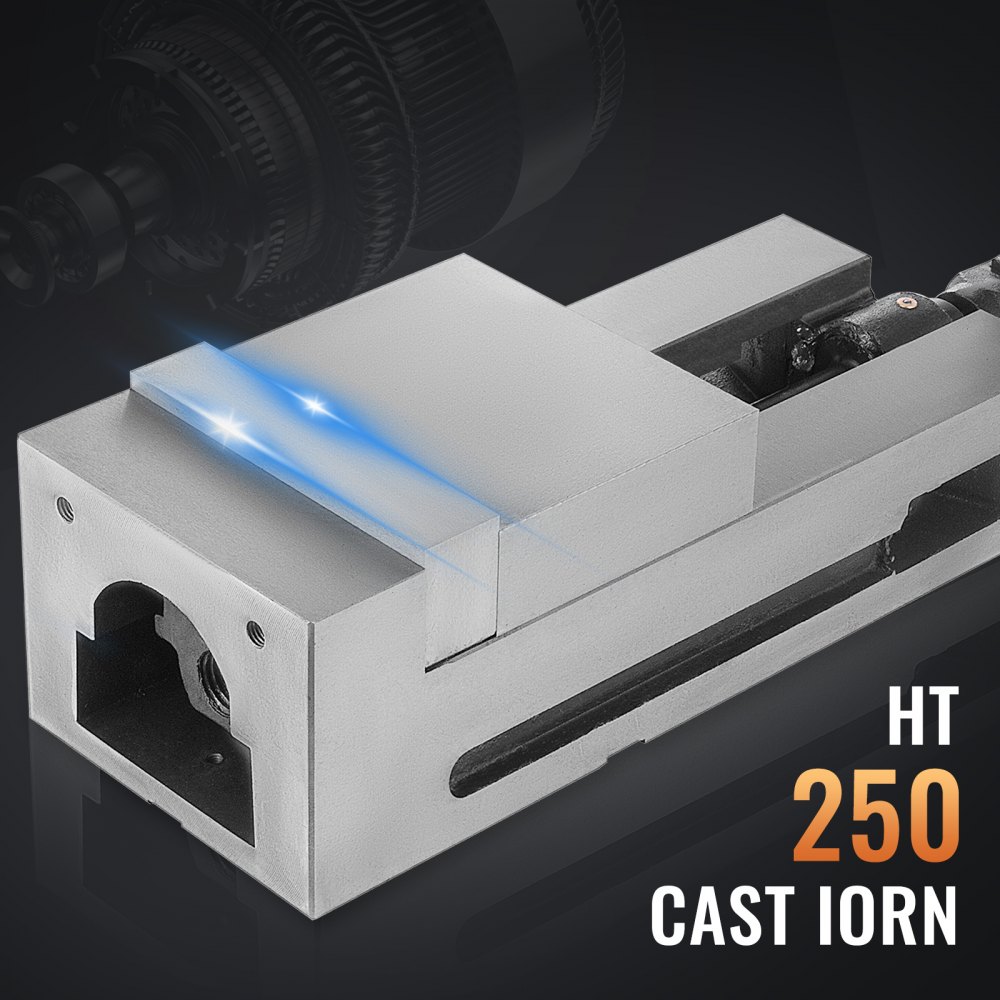

The vise is made of HT250 high-quality cast iron, with strong toughness, high tensile strength, and wear resistance. Internal refine grinding treatment, smooth use, no jamming, rust, and corrosion resistance.
Hardened Clamping Jaw

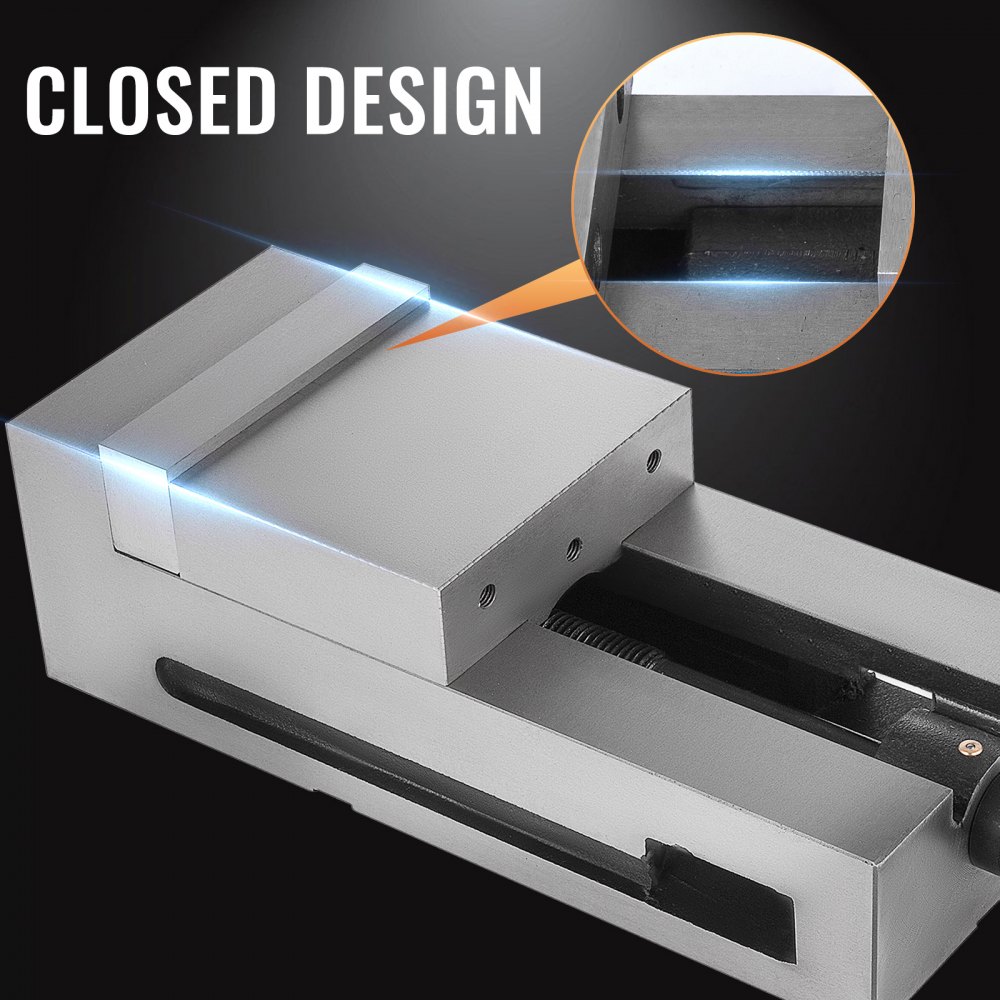

The jaws are thickened and finely ground, and the maximum clamping force can reach 29 KN. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life of the vise.
Quality Lead Screw

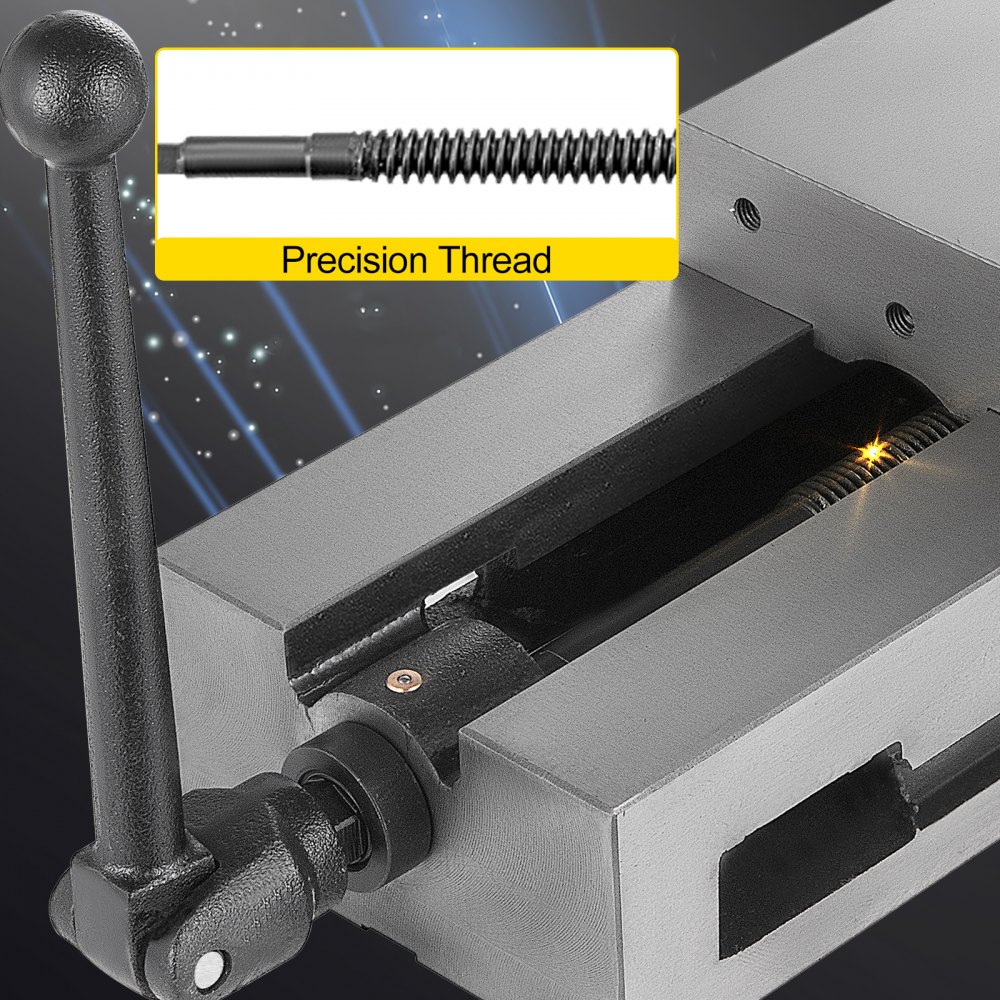

The thread pitch of the ladder screw is larger than the standard screw. The surface is quenched, turned, and ground. It is more wear-resistant, durable, and corrosion-resistant than the ordinary screw, and has higher accuracy.
Adjustable Handle

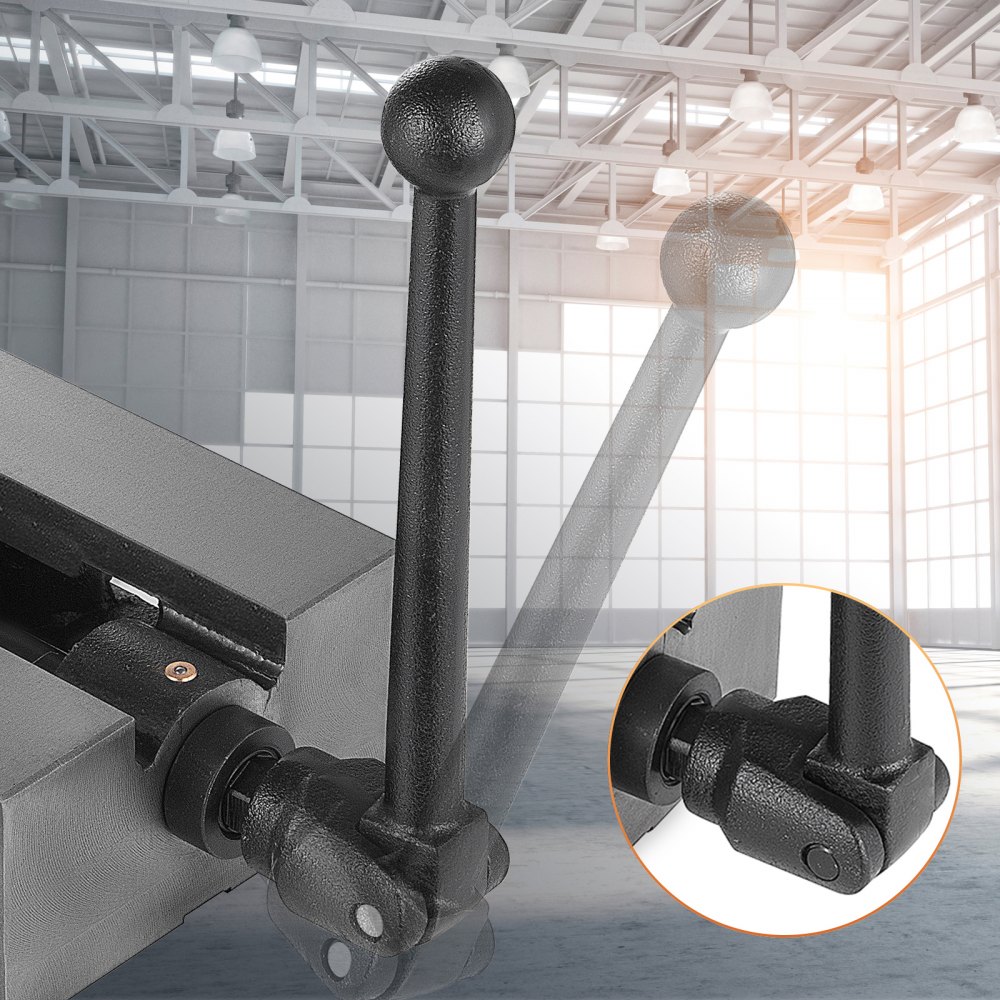

The universal joint handle is ductile iron material, which is not easy to rust and is flexible and durable. You can precisely adjust the gripping force of the jaws through the handle, and complete the workpiece clamping work excellently.
Precision Design

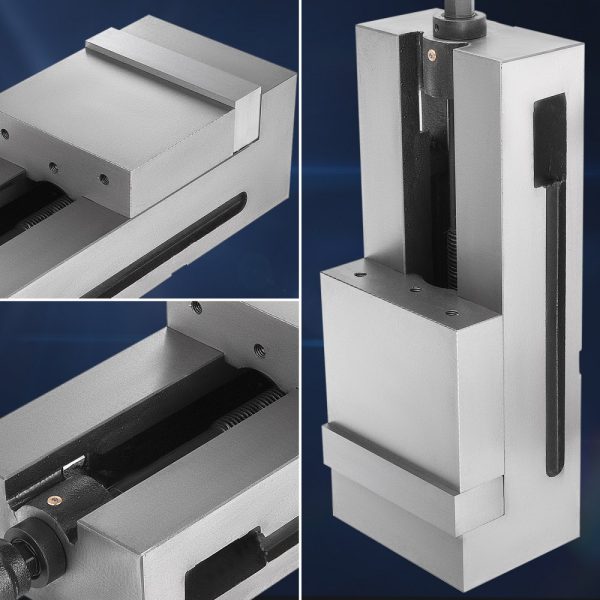

The guide rail surface is refined ground, seamless contact surface, and the positioning is more accurate. Compared with a standard vise, it can be used upright without affecting the accuracy of clamping the workpiece.
Wide Application

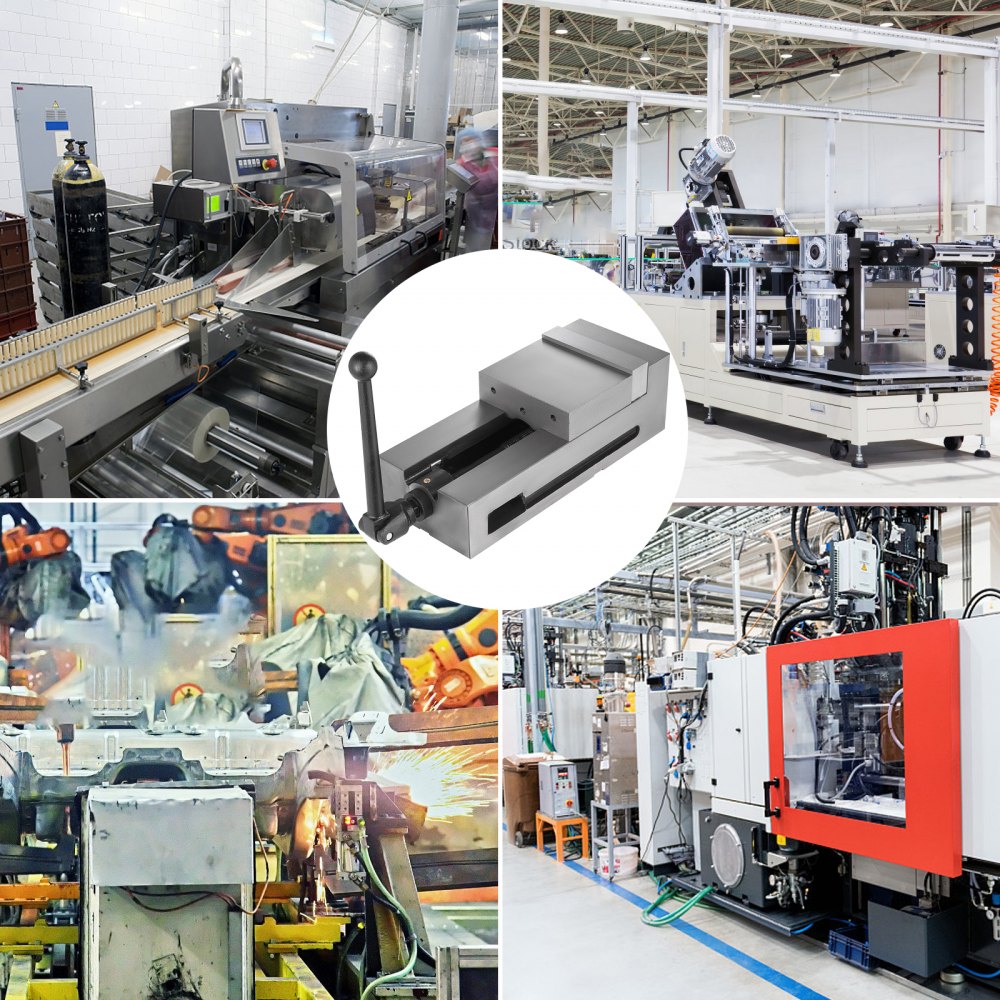

Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.
Specifications
-
Type: Bench Vise
-
Jaw height: 1.8″ (45 mm)
-
Jaw width: 6″ (150 mm)
-
Jaw opening: 6.3″ (160 mm)
-
Jaw material: 45# steel
-
Body material: HT250 gray cast iron
-
Wrench material: QT500 ductile iron
-
Vise Height: 4.7″ (120 mm)
-
Max Clamping force: 29 KN
-
Gross weight: 55.6 lbs (25.2 kg)
-
Package dimensions (L x W x H): 18.1″ x 12.6″ x 6.7″ (46 x 32 x 17 cm)

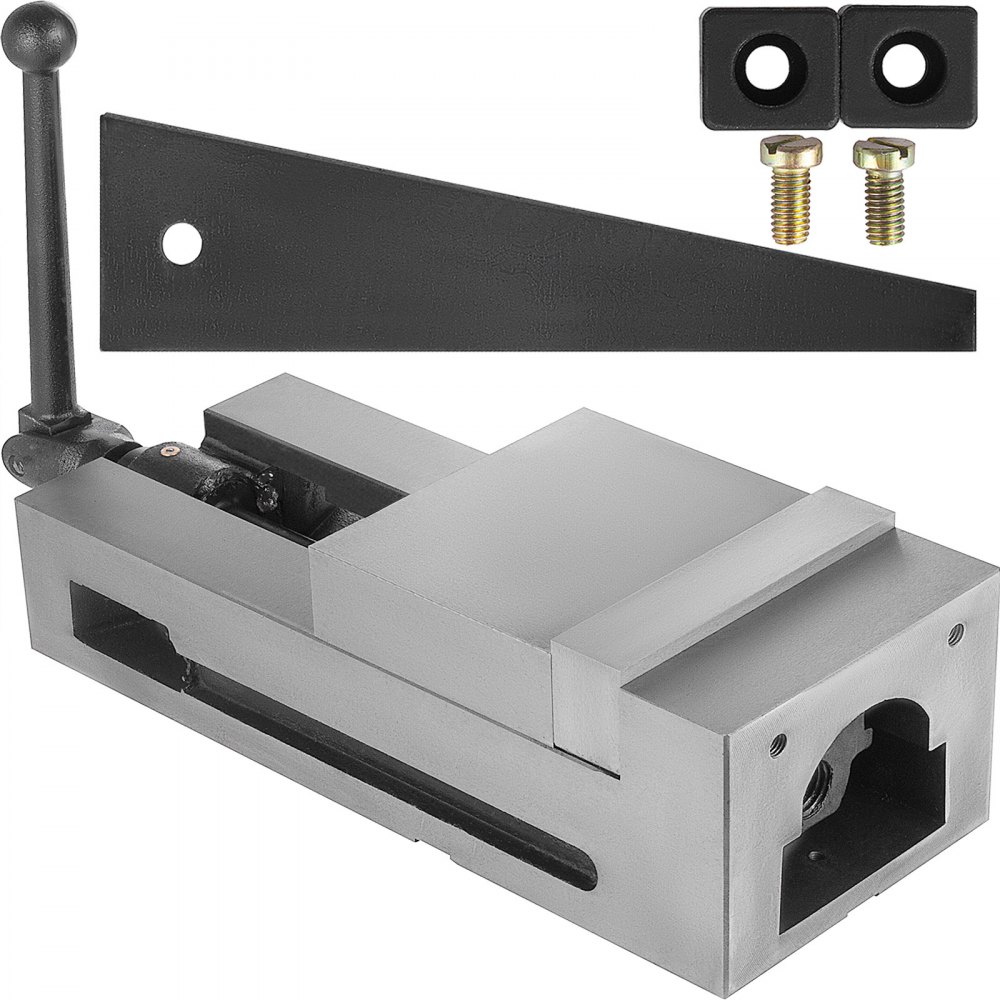

Package Content
-
1 x 6″ Bench Clamp Vise Fixed Jaw
-
1 x Handle
-
1 x Manual
