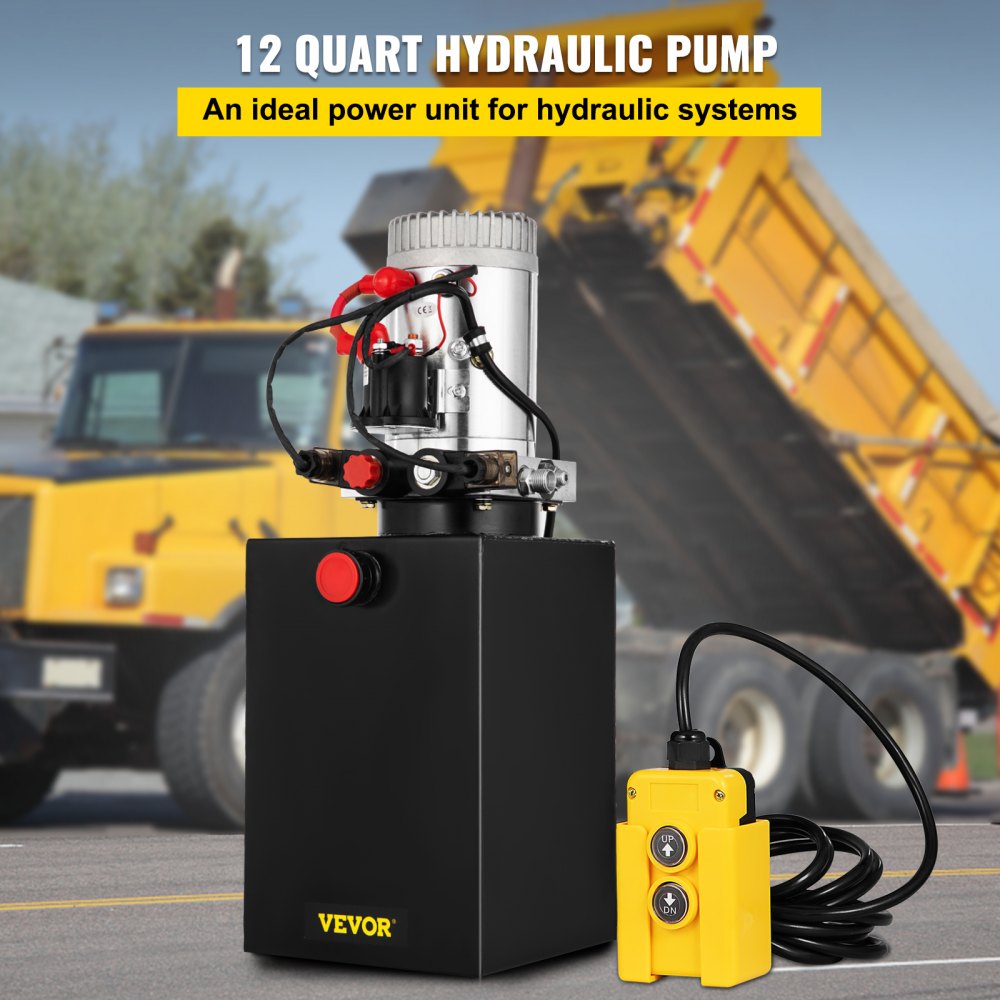

12 Quart Double Acting Hydraulic Pump
This hydraulic pump has a 12-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
-
Easy to Use
-
Reliable Quality
-
Rapid Start
-
Premium Hydraulic Pump

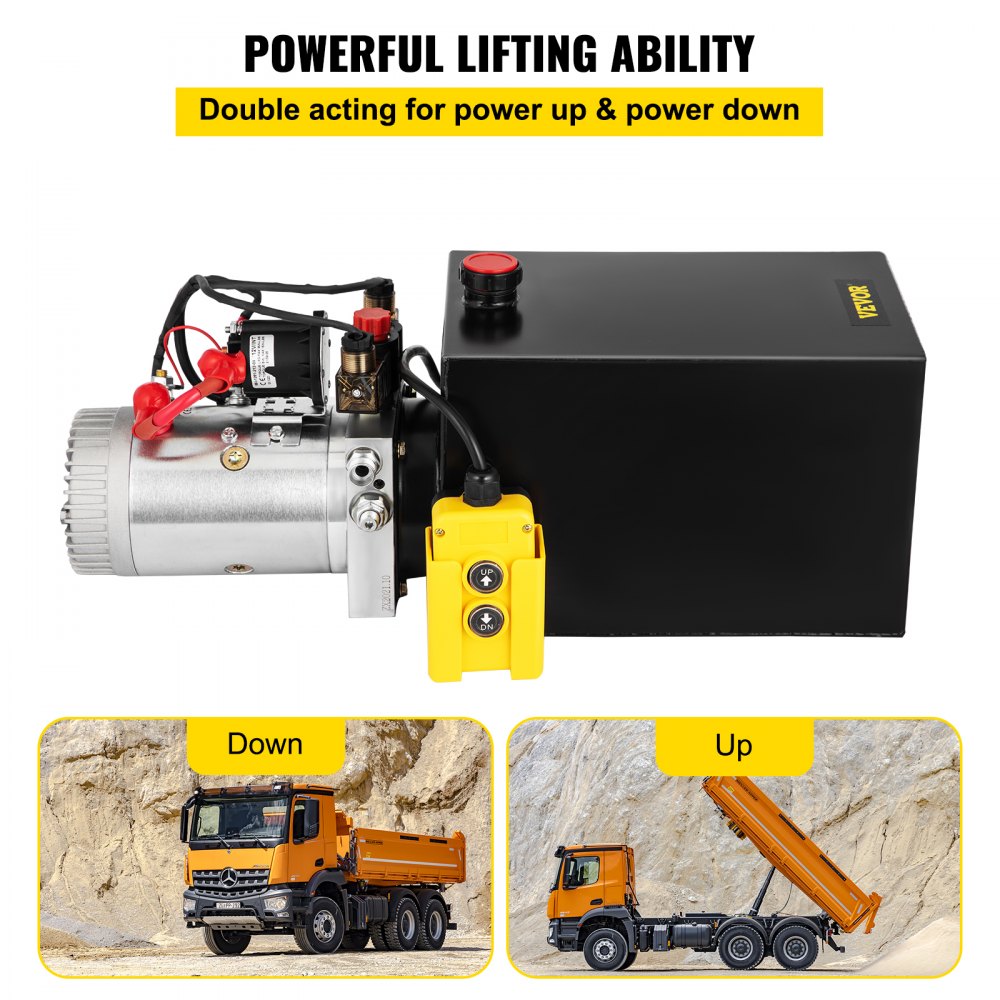

Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 12-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting. The rated speed is 2850 r/min.
Convenient Design

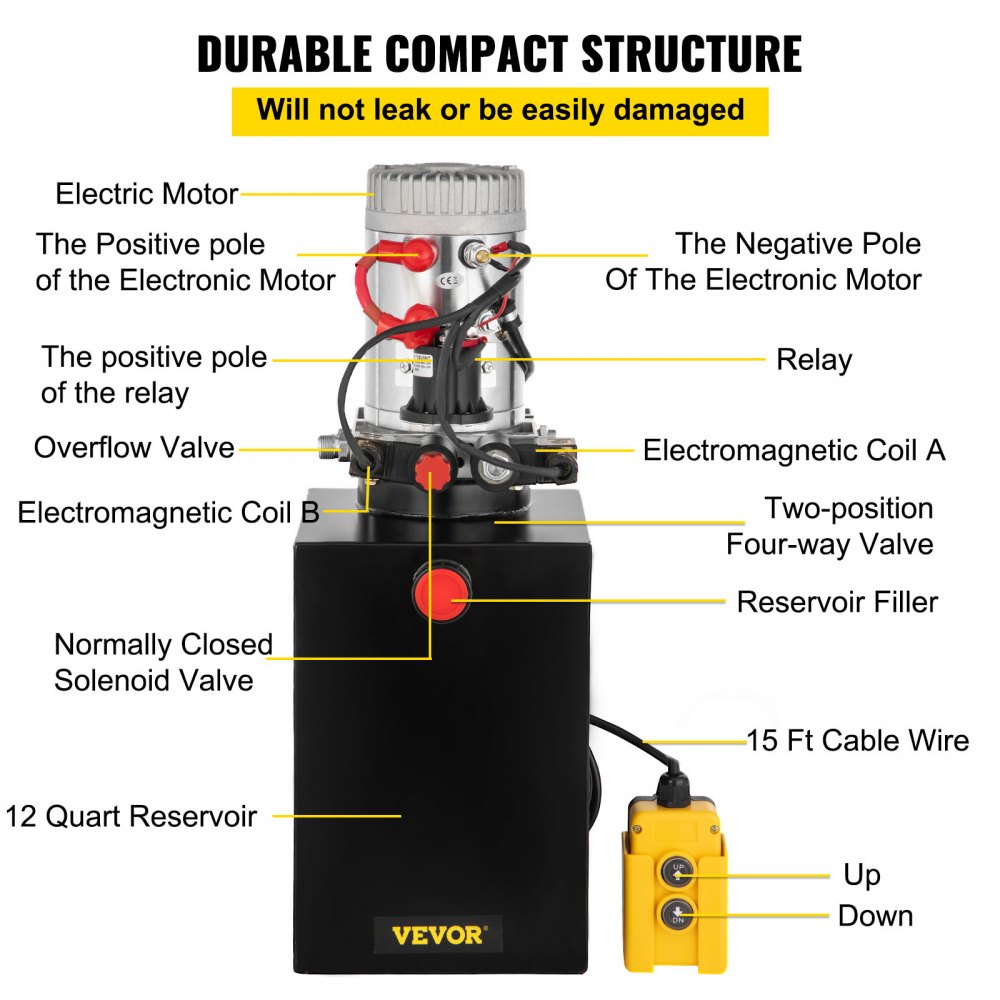

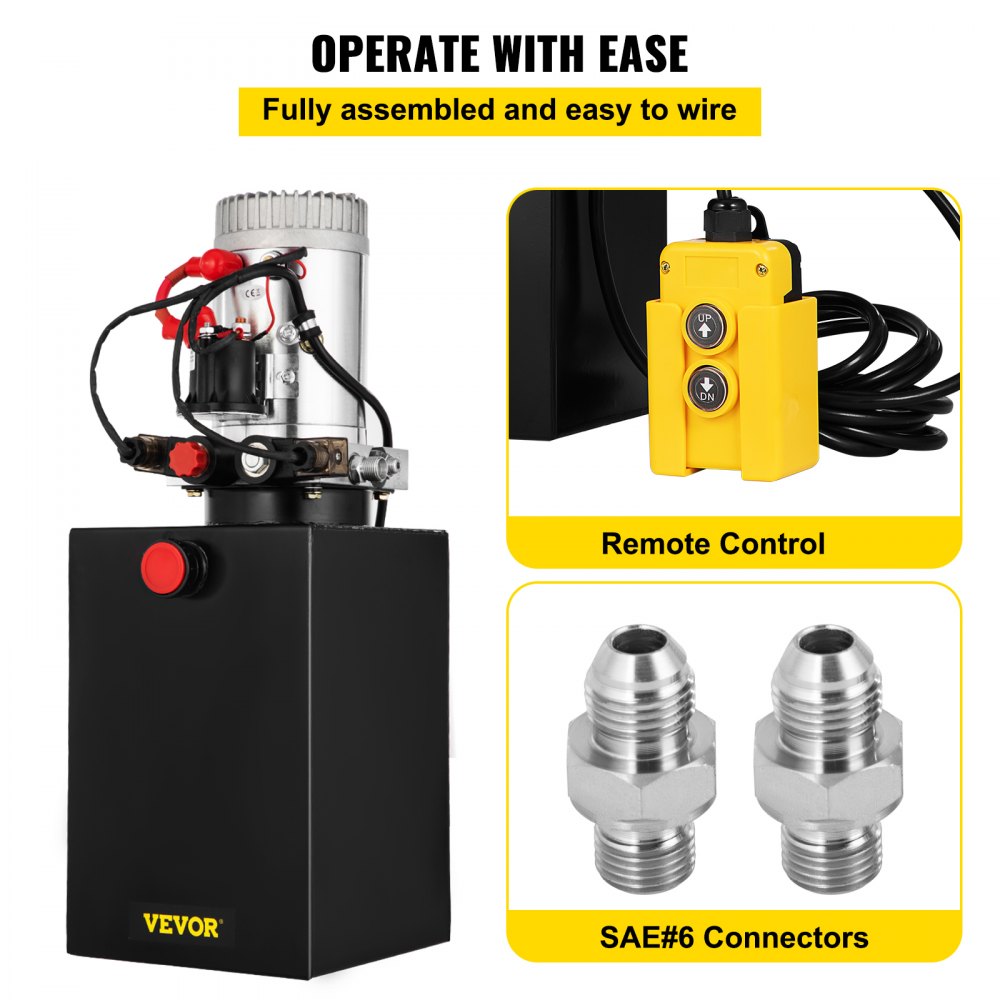

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 2 additional SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation

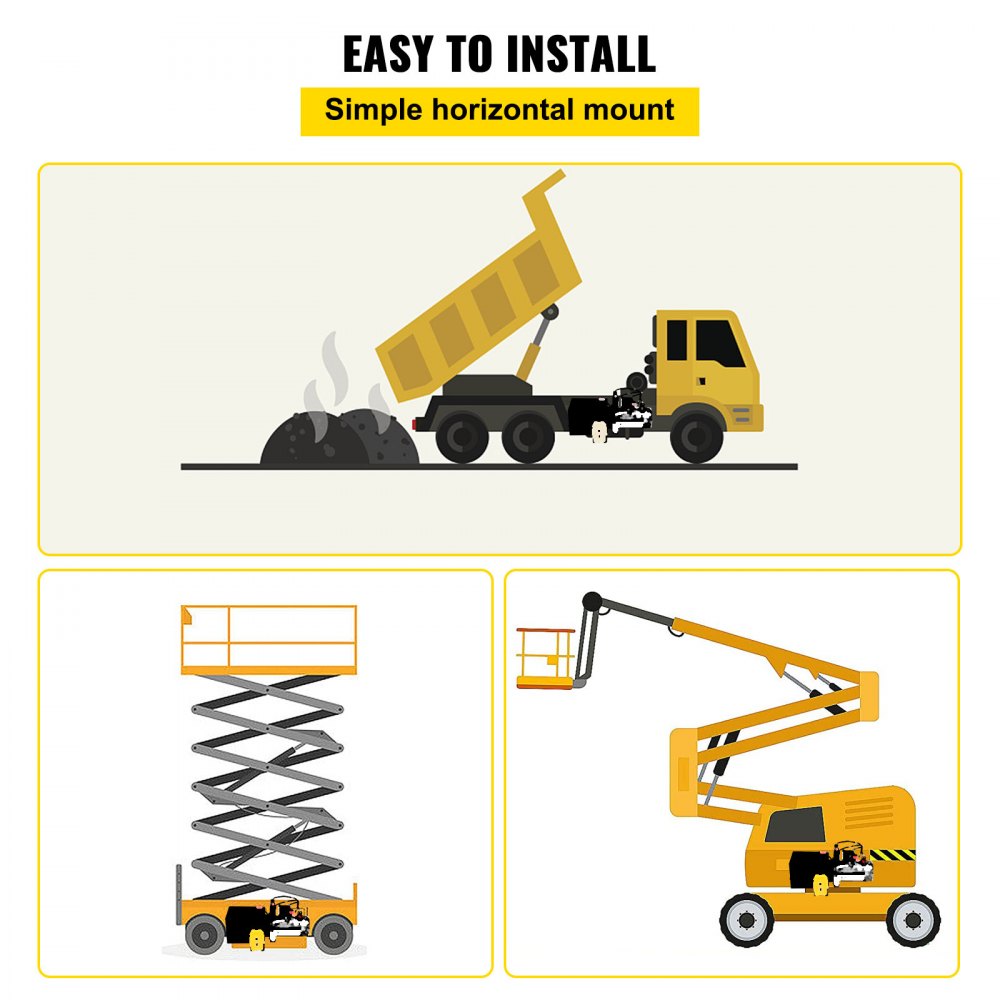

All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

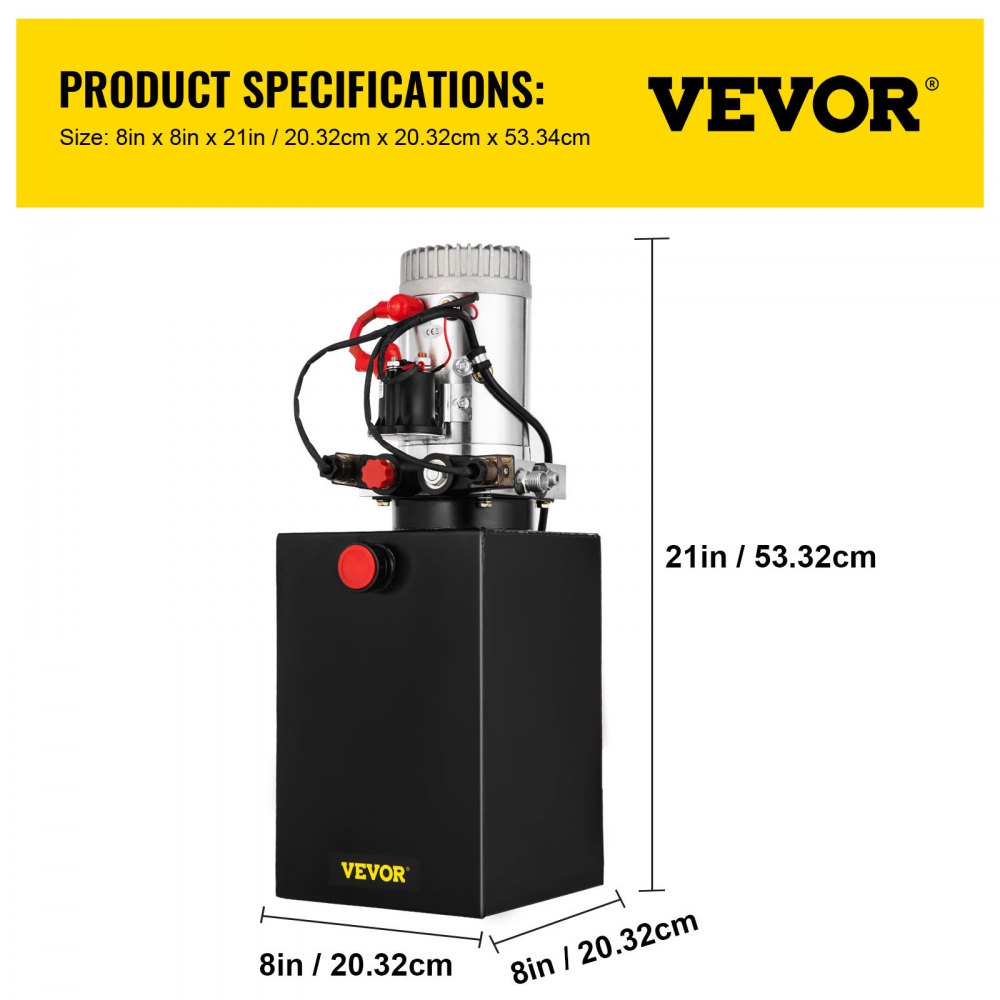

Specifications
-
Material of Tank: Metal
-
Tank Capacity: 12 Quart
-
Action: Double Acting Power-Up/ Gravity Down
-
PSI: 3200 PSI Max. Relief Setting For Increased Lifting Power on A port
-
Reservoir: 12 Quart Steel Reservoir
-
Port: SAE # 6 Port, Horizontal mount
-
Handheld Pendant with 15 feet (4.5 m) Removal Cord
-
Gross Weight: 36.0 lbs (16.3 kg)
-
Package Dimensions (L x W x H): 23.2″ x 11.8″ x 11.4″ (59 x 30 x 29 cm)

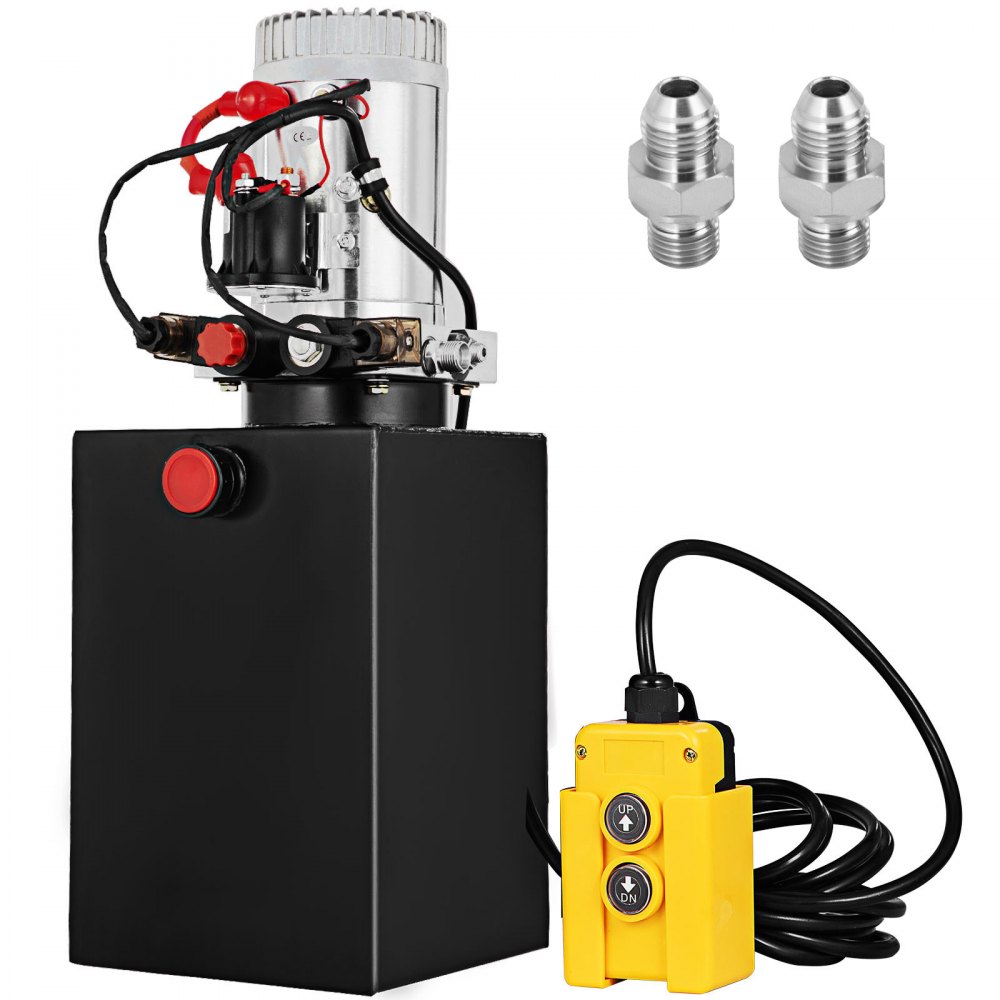

Package Content
-
1 x 12 Quart Double Acting Hydraulic Pump
-
1 x English Manual
-
Several Related Accessories
