Linear Guide Rail Set 1000mm 2-Piece Rails 4-Piece Slide Blocks 4-Piece Supports for Automated Machinery CNC DIY

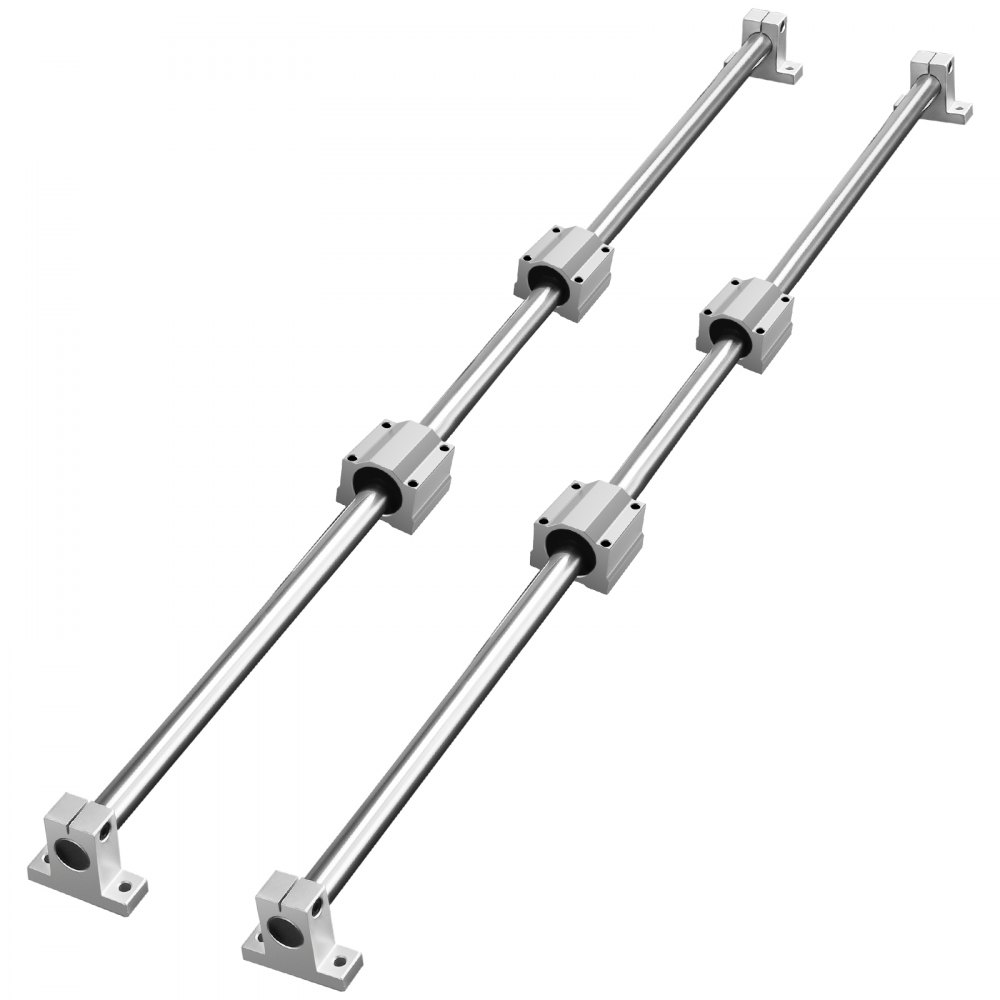

SFC Linear Guide Rail Set: Linear motion guide rail includes 2 x 39.4″ / 1000mm length SFC16 linear shafts, 4 x SC16 slide blocks and 4 x rail supports. Dynamic Load Per Block: 774N, Static Load Per Block: 1180N.

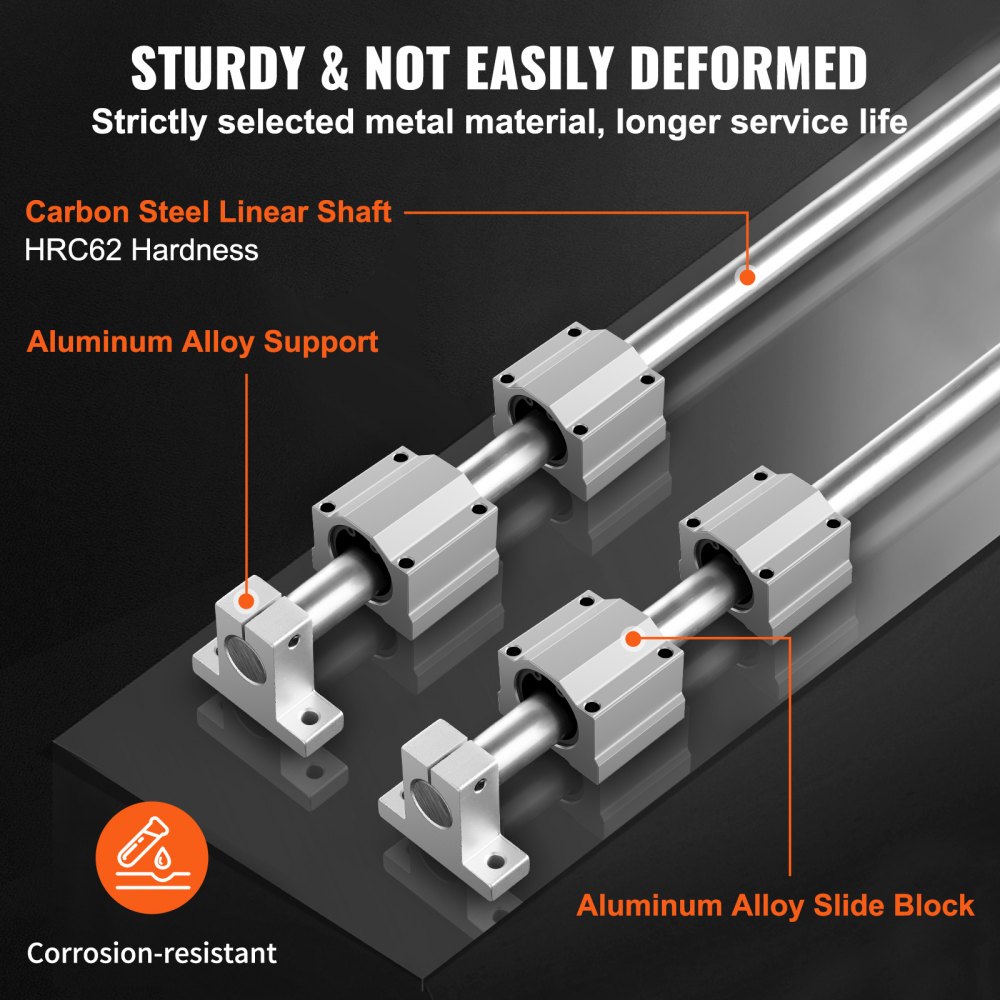

Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.

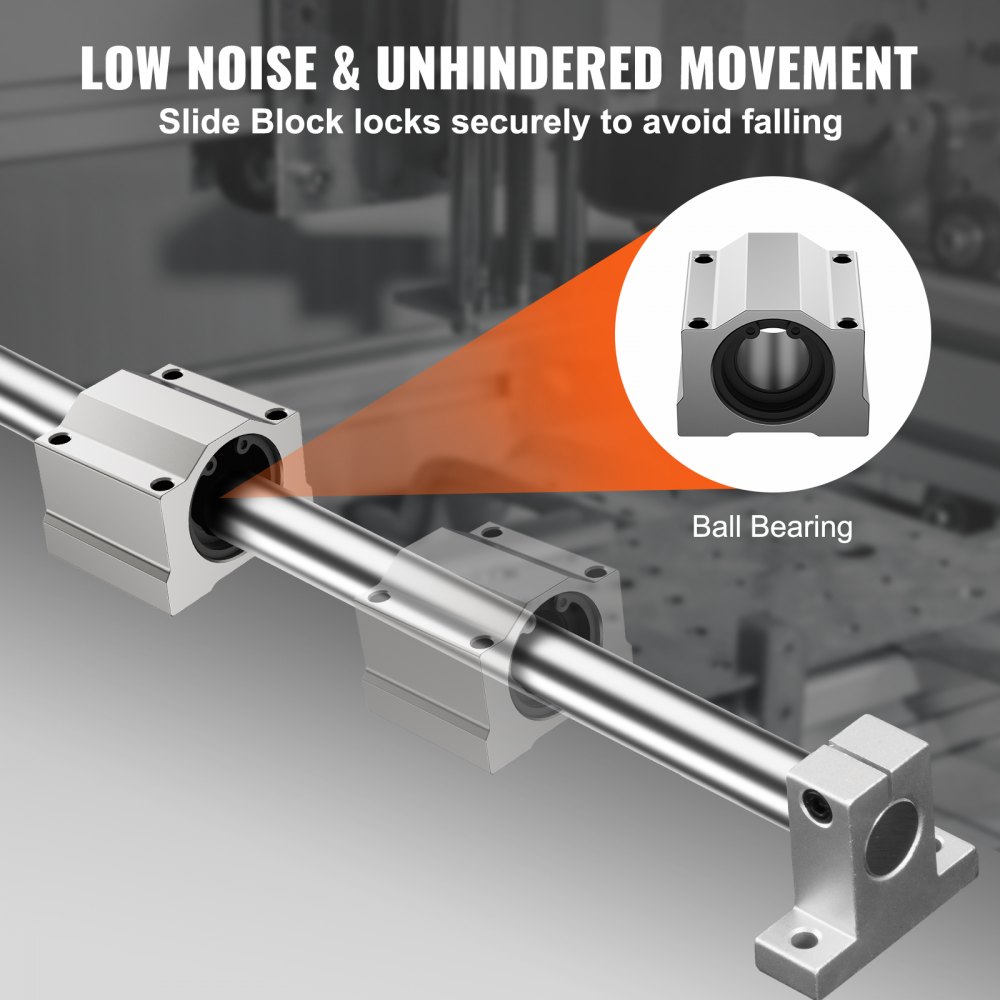

Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.

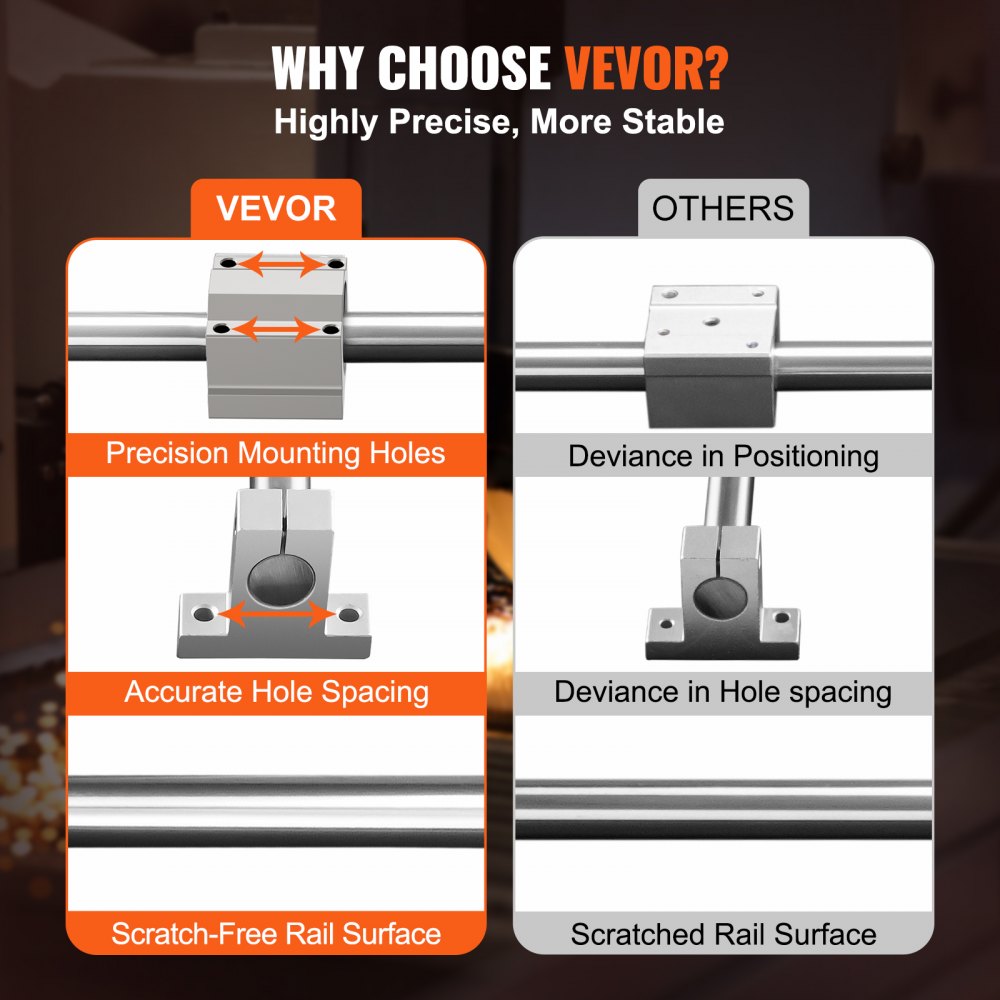

High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.

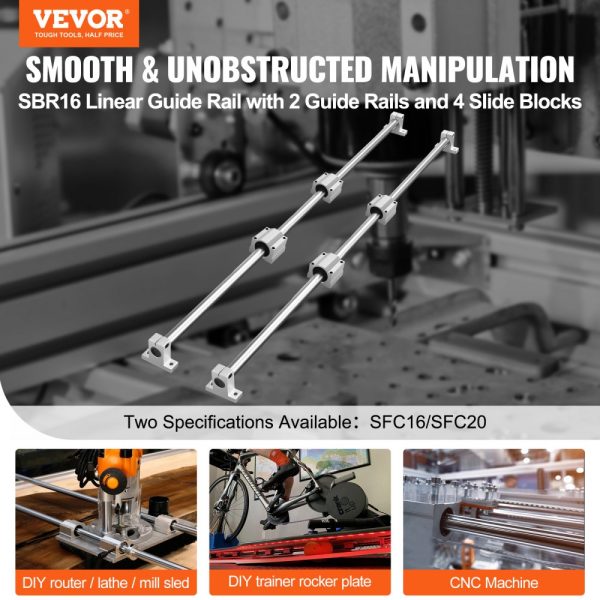

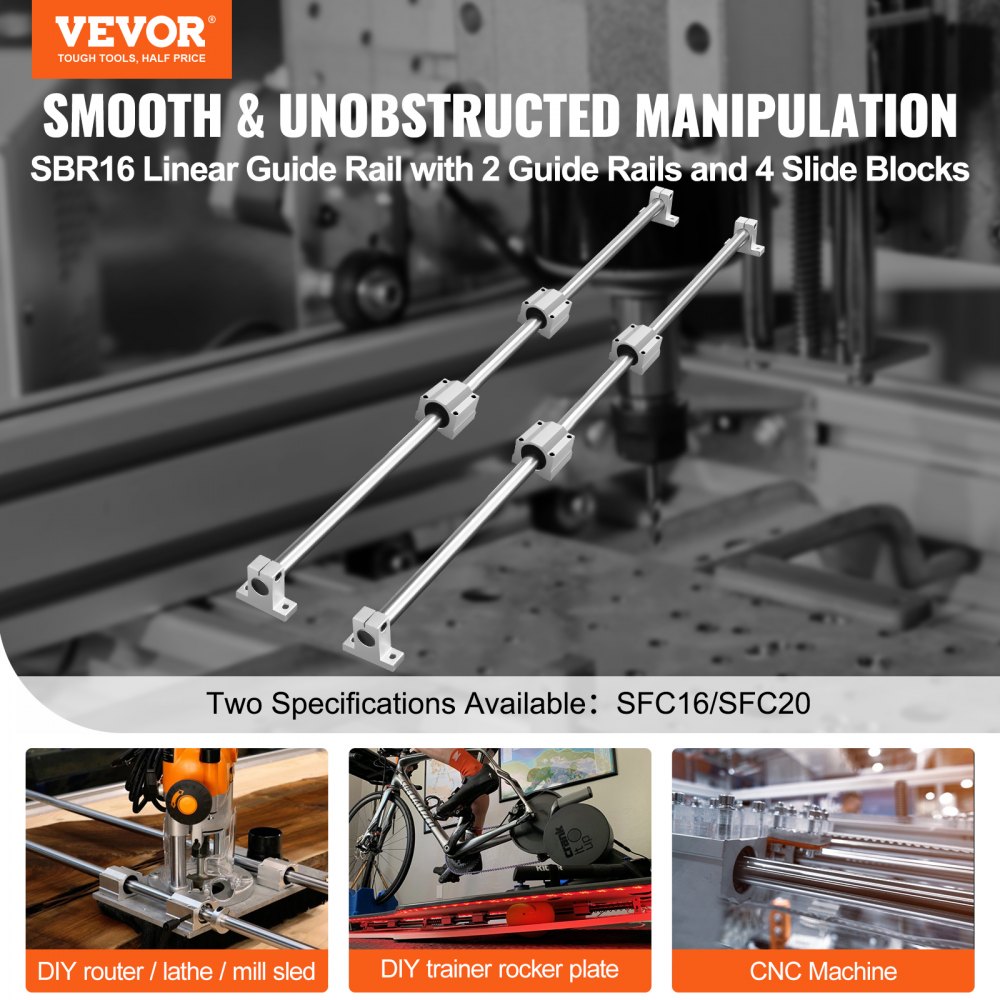

Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Linear Guide Rail Set, SFC16 1000mm, 2 PCS 39.4 in/1000 mm SFC16 Guide Rails 4 PCS SC16 Slide Blocks 4 PCS Rail Supports, Linear Rails and Bearings Kit for Automated Machines CNC DIY Project
Handle Pressure with Ease
Smooth Sliding without Stutter
More Accurate Than Ever
Broad Usage Scenarios
Strong Corrosion Resistance
Installation Made Easy

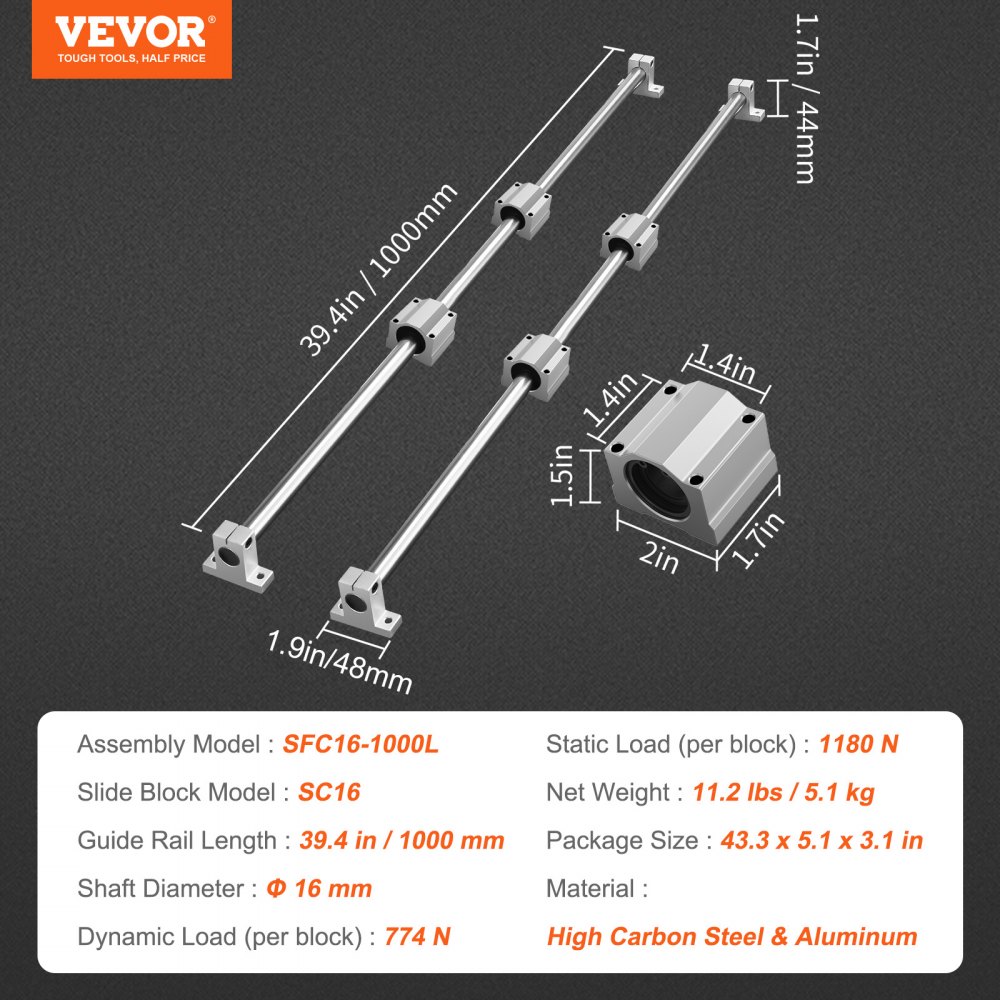

Shaft Diameter: Φ16 mm,Material: High Carbon Steel & Aluminum,Model Number: SFC16-1000L,Product Dimensions(L x W x H): 39.4 x 3.8 x 1.7 in/1000 x 96 x 44 mm,Package Size(L x W x H): 43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm,Dynamic Load (per block): 774 N,Mounting Hole Distance B: 1.4 in/36 mm,Mounting Hole Distance A: 1.4 in/36 mm,Slide Block Size(L x W x H): 1.7 x 2 x 1.5 in/44 x 50 x 38.5 mm,Static Load (per block): 1180 N,Slide Block Model: SC16,Net Weight: 11.2 lbs/5.1 kg,Guide Rail Length: 39.4 in/1000 mm
