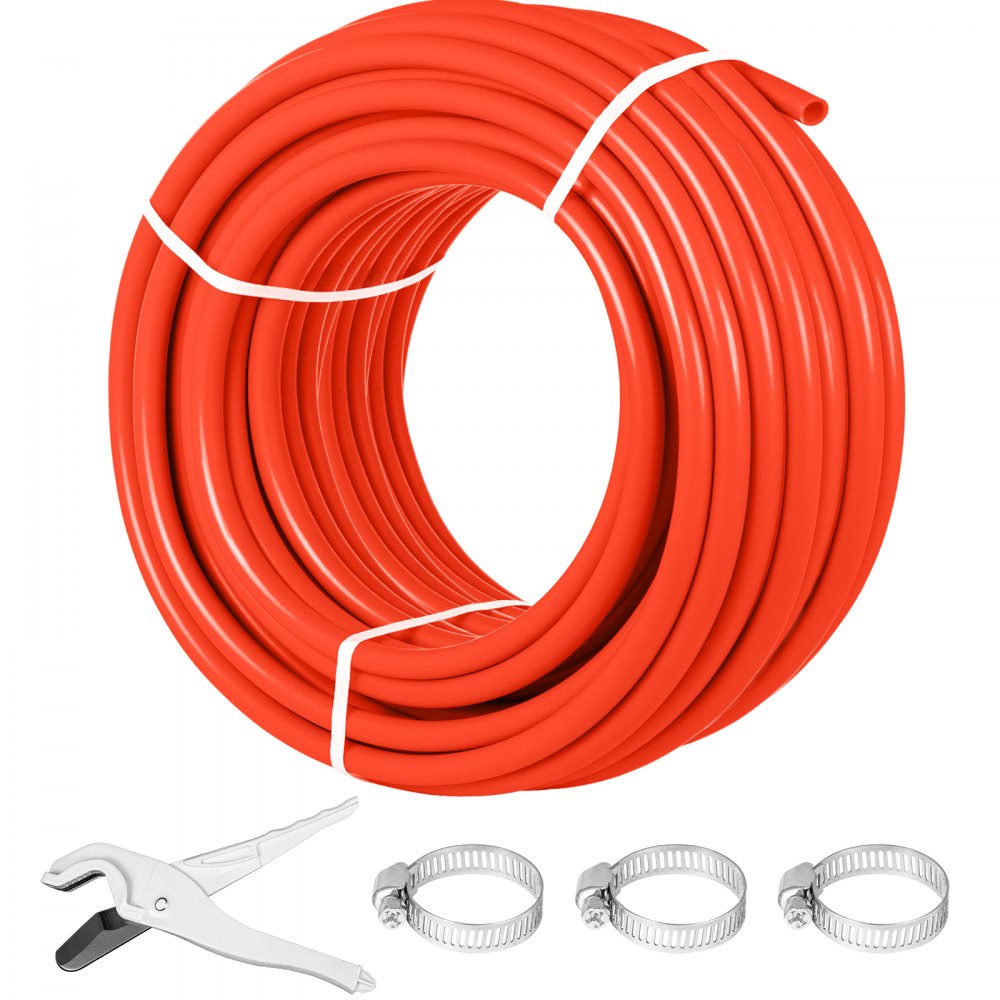

Oxygen Barrier 1/2 Inch 300 Feet Tube Coil EVOH PEX-B Pipe, for Residential Commercial Radiant Floor Heating, Red

【RELIABLE PEX MATERIAL】- Color: Red

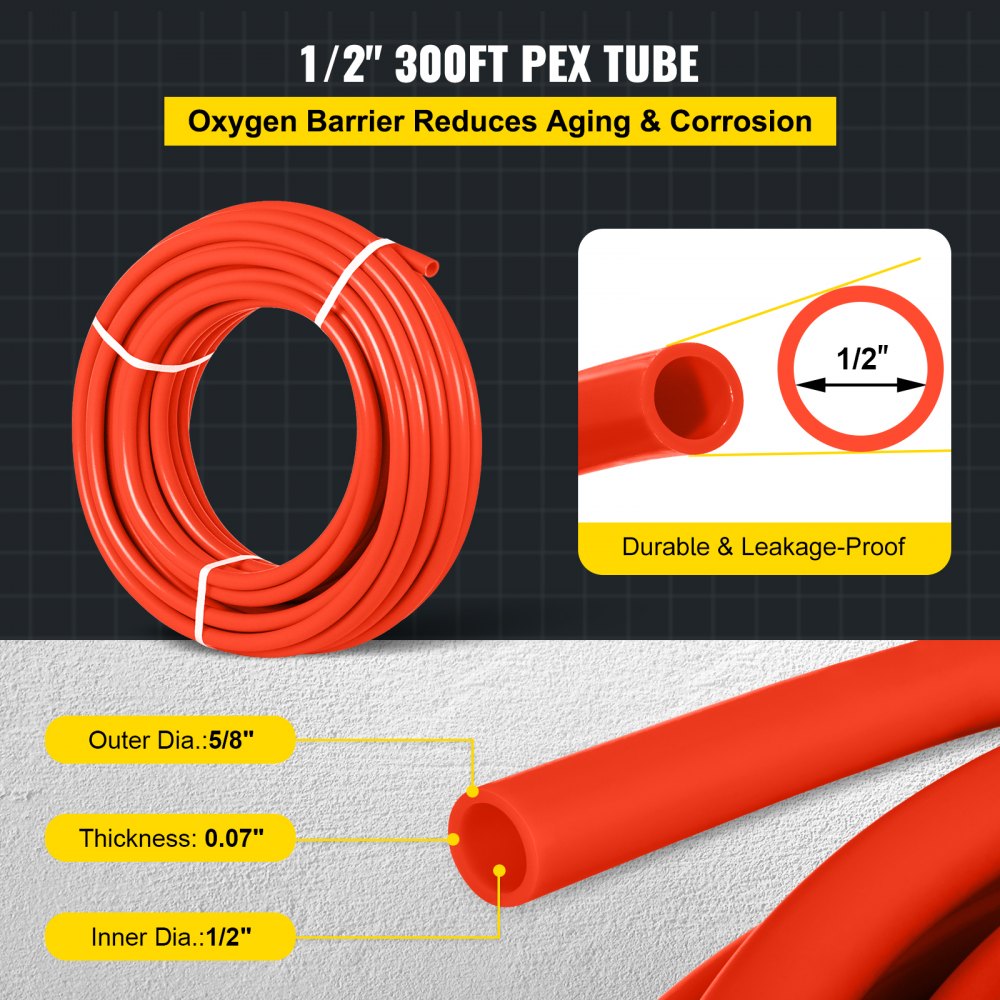

Nominal Diameter: 1/2″

Total Length: 300 ft. Outside Diameter: 5/8″

Inner Diameter: 1/2″

Keep quick & smooth hot/cold water flows. Made of PEX material, non-toxic, crack-proof, leak-proof. Perfect for potable water or radiant floor water use.

【ROBUST O2 RESISTANCE】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. This non-broken 1/2″ PEX tube can tackle different weather circumstances, no matter the high or low temperature, to ensure the integrity and safer use for longer life expectancy.

【PREMIUM FLEXIBILITY】- Min.5″ bending radius, easy to bend for different ground situation. Compatible water temperature: -40℃ to 95℃/-40℉ to 203℉. Big pressure capacity: 80psi @ 200℉, 100psi @ 180℉, 160psi @ 73℉. Thus, to ensure its good temperature resistance, crack- & leakage-proof.

【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings)

Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings)

Press system (by Viega)

Compression PEX Fittings.

【DIVERSE USE SCENARIO】- Suit for home & commercial use, like radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, “Sandwich” type radiant heating (between subfloor and finished floor), Snow & ice melting systems etc.

Oxygen Barrier 1/2 Inch 300 Feet Tube Coil EVOH PEX-B Pipe, for Residential Commercial Radiant Floor Heating, Red
1/2″ 300ft PEX-B Tube
5″ Bending Radius
Reliable Performance

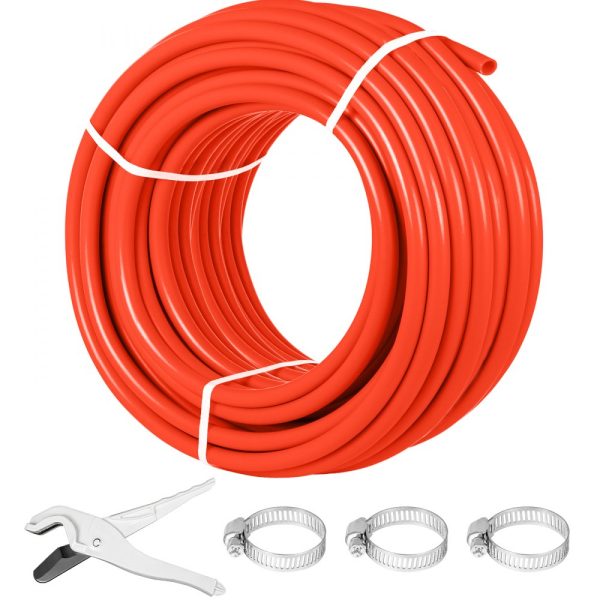

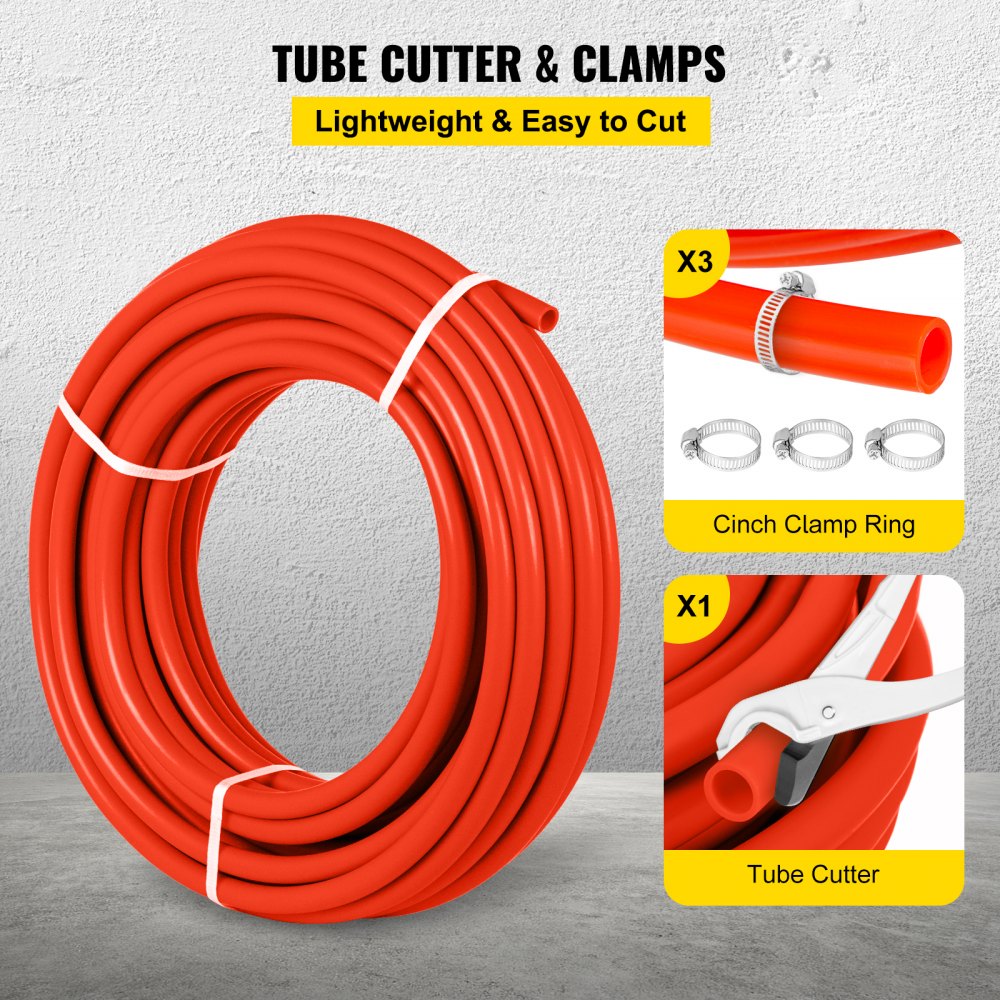

Tube Cutter & Clamps
Multiple Connections
Home & Commercial Use
Total Length: 300 ft/ 91.4 m,Type: PEX-B Tube(Oxygen Barrier),ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).:,UPC listed by IAPMO:,Inside Diameter: 1/2″/1.2 cm,Color: Red,Pressure Ratings: 80psi @ 200F, 100psi @ 180F, 160psi @ 73F,Min.Bending Radius: 5″/12.7 cm,Nominal Diameter: 1/2″/1.2 cm,Outside Diameter: 5/8″ / 1.6 cm,Tube Thickness: 0.07″ / 1.8 mm,SDR-9 Dimensional Standards:
