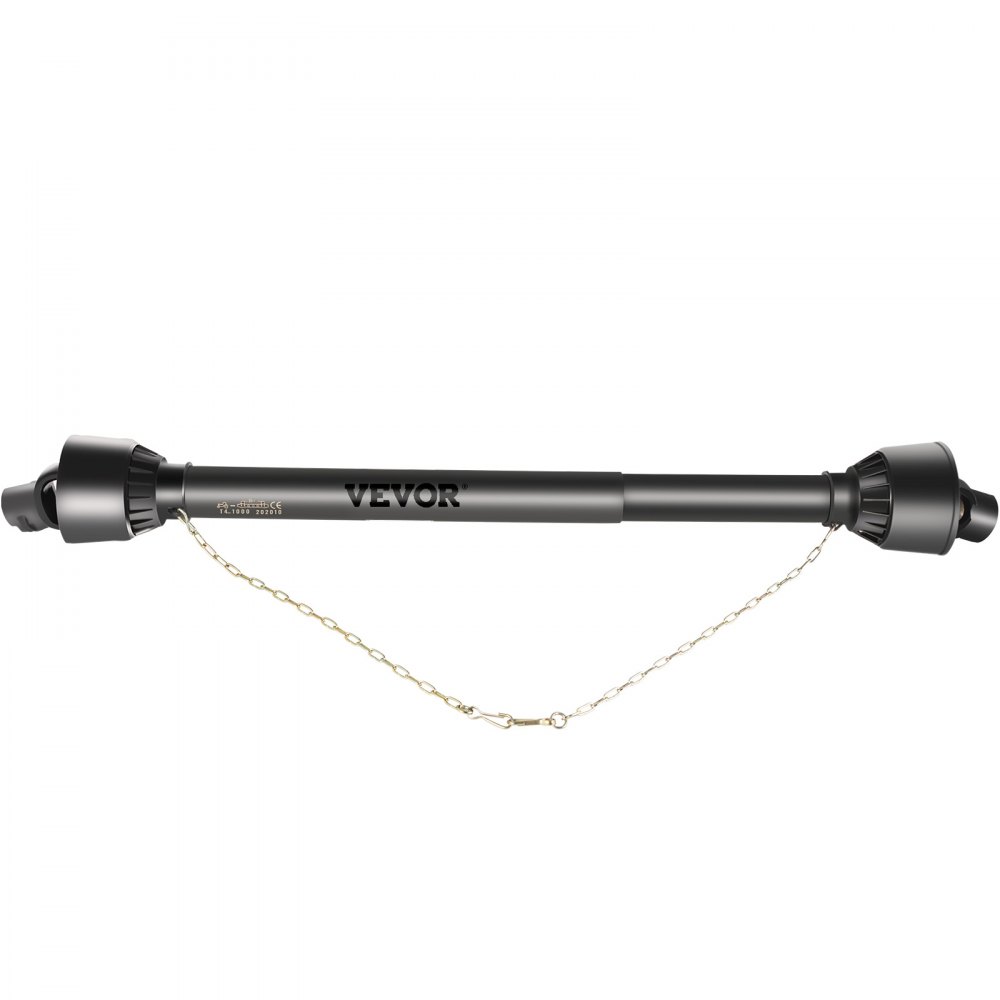

PTO Drive Shaft for Tractors
39″-55″ ＆ 1-3/8″ Ends ＆ Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
-
Sturdy and Durable
-
6 Spline ＆ Round Ends
-
Adjustable Length
-
Easy Assembly＆Safer Use
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
Perfect Match

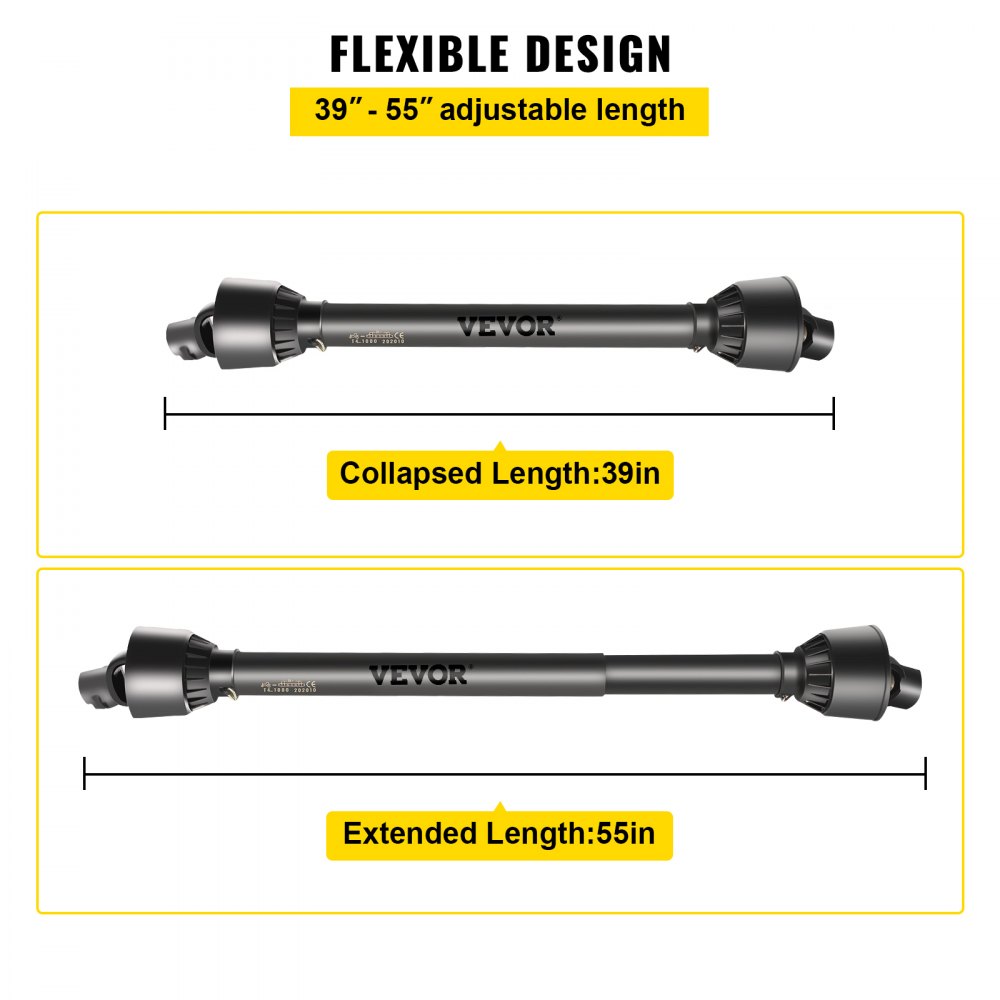

With 39″-55″ extendable length and featuring 1-3/8″ 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

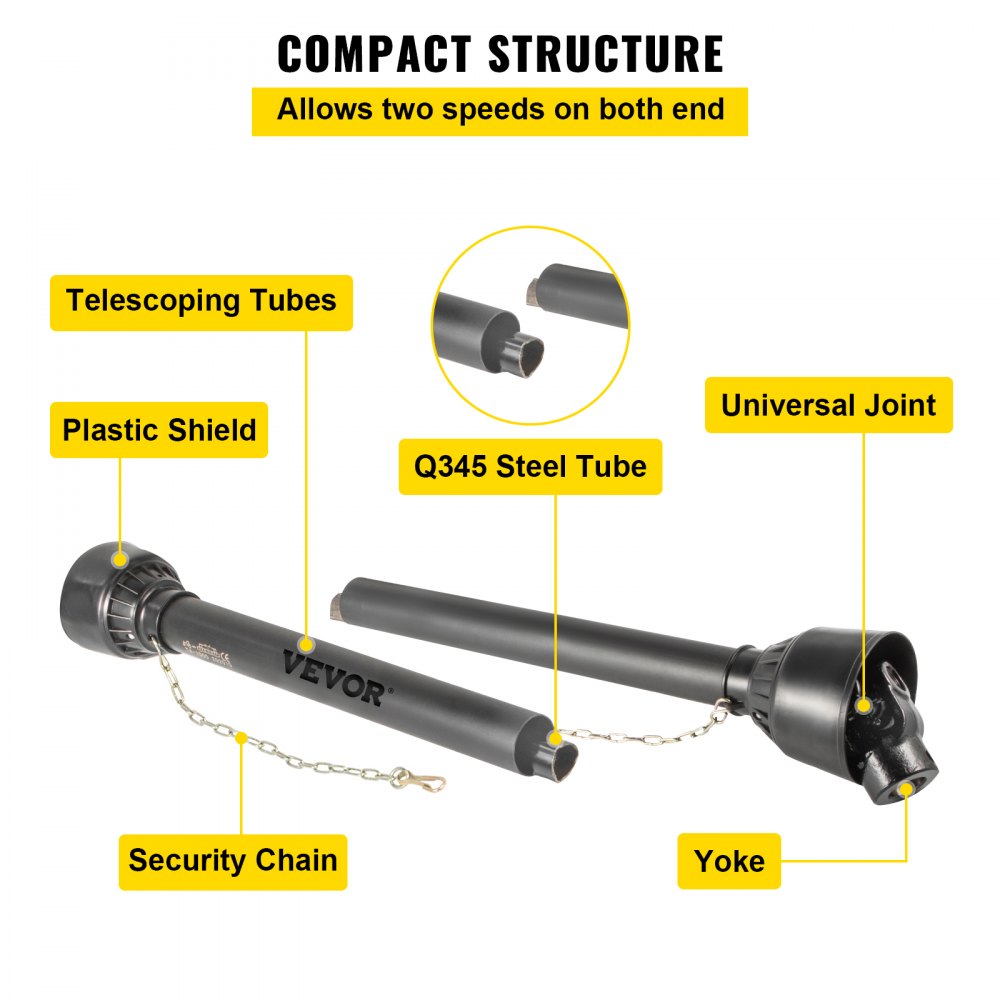

Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

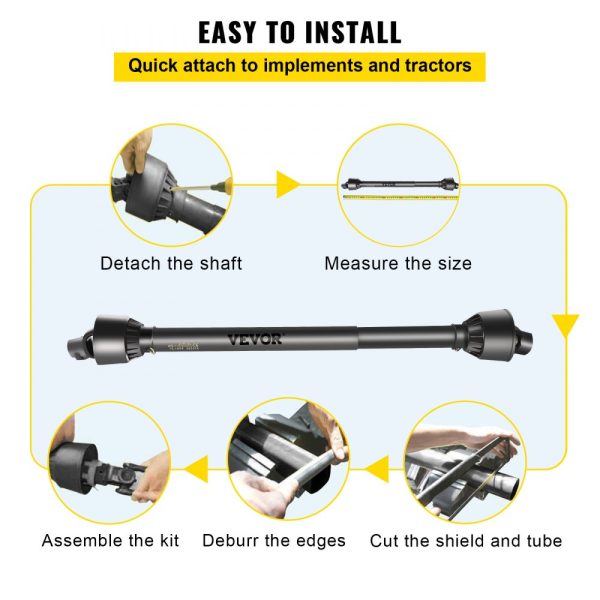

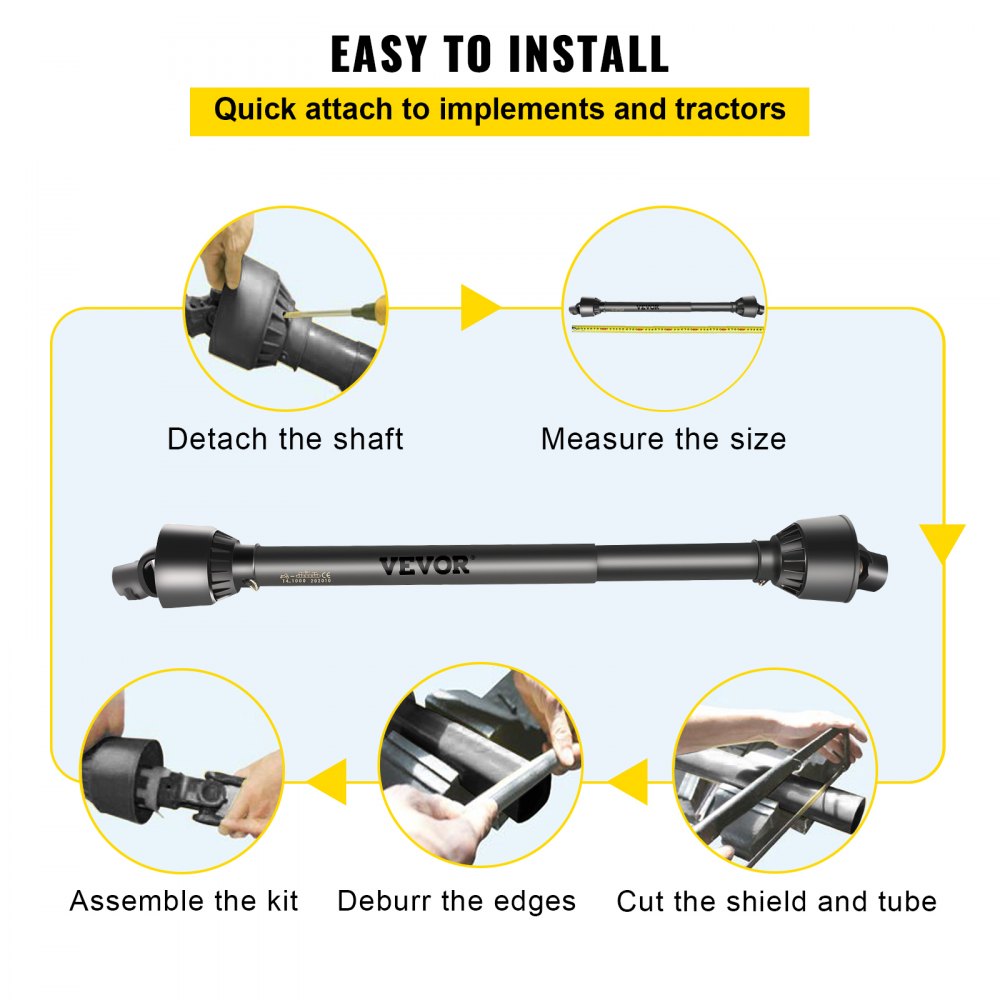

Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
Specifications
-
Model: T4-BⅢP*1000mm*4.05.05B*4.05.A35
-
Part Type: PTO Drive Shaft
-
Series: 4
-
Certificate: CE Certification
-
Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
-

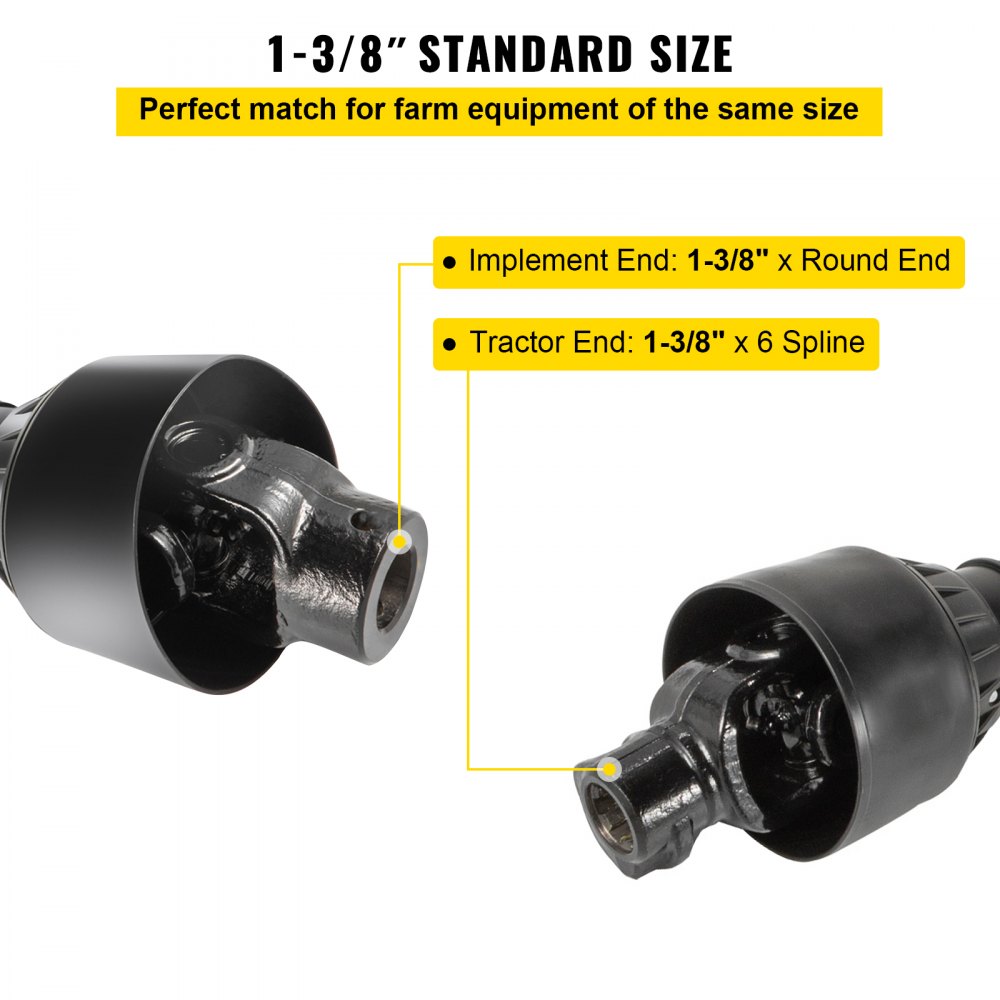

Tractor End: 1-3/8″ x 6 Spline End
-
Implement End: 1-3/8″ x Round End
-

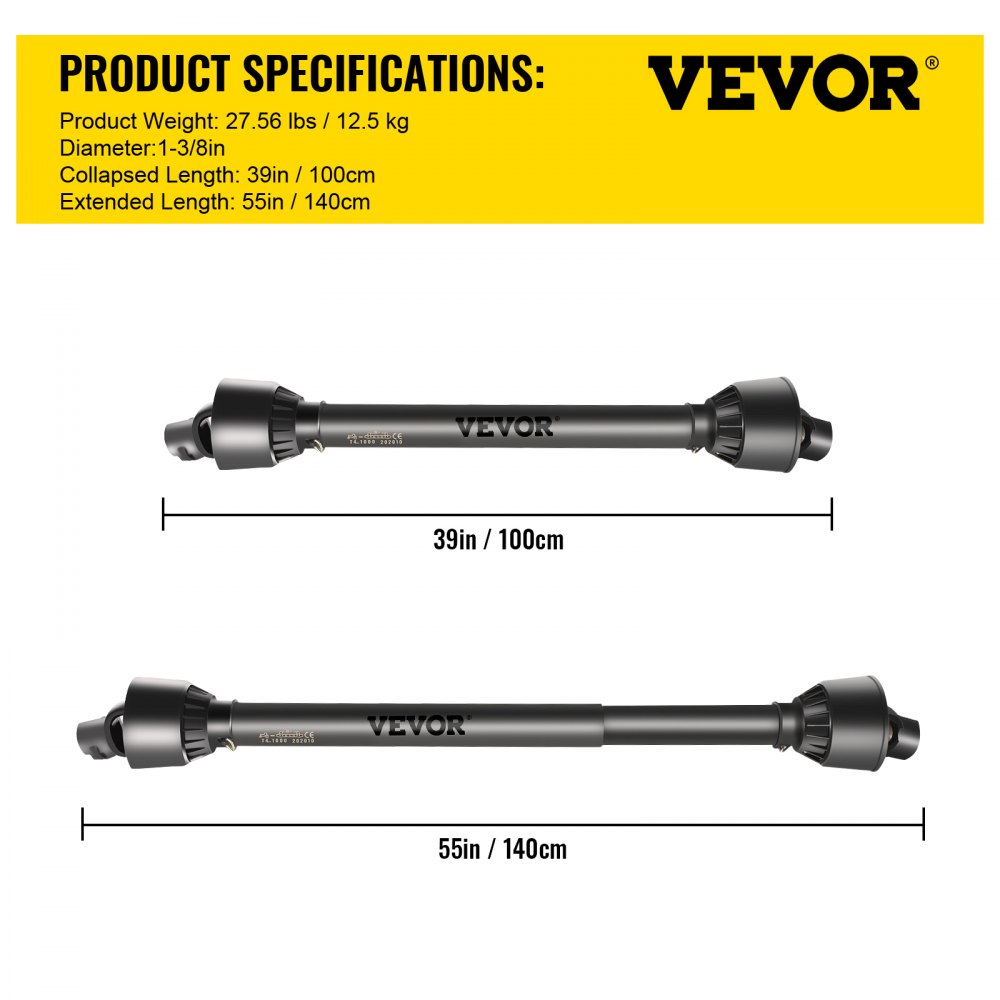

Compressed Length: 39″ / 1000 mm
-
Extended Overall Length: 55″ / 1400 mm
-

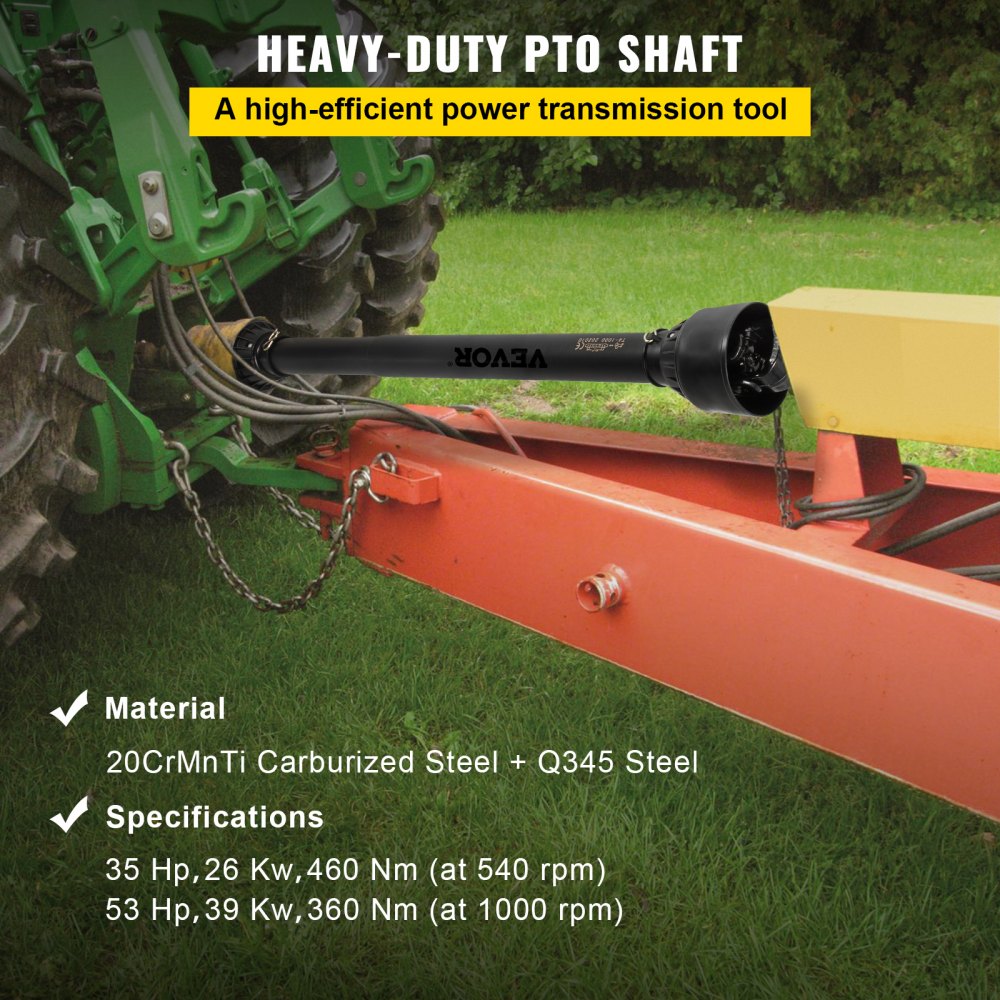

At 540RPM: 35hp, 26Kw, 460Nm
-
At 1000RPM: 53hp, 39Kw, 360Nm
-
Color: Black
Package Content
-
1 x PTO Shaft
-
1 x Locking Pin
-
1 x User Manual
